Description
iFlight SucceX F7 TwinG Plus F7 OSD Flight Controller & 50A BL_32 4in1 ESC Stack for RC Drone
Specification:
Brand Name: iFlight
Model: SucceX FC ESC Stack
Version: Standard Version ( Without Heatsink ) ;
Deluxe Version ( With Heatsink)
SucceX F7 TwinG Plus Flight Controller
Model: F7 TwinG Plus
Item Name: F7 Dual Gyro Flight Controler AIO OSD BEC
OSD: AT7456E
IRC Tramp VTX protocol: YES
WS2812 led Strip: YES
Beeper: YES
PDB Specifications
Input: 2-8S(5-36V)
BEC: 5V/3A cont
FC Firmware
Betaflight/INAV
Target: EXF7XXDUA
Size: 36x36mm
Mounting Hole: 30.5×30.5mm (M3)
Weight: 6.2g

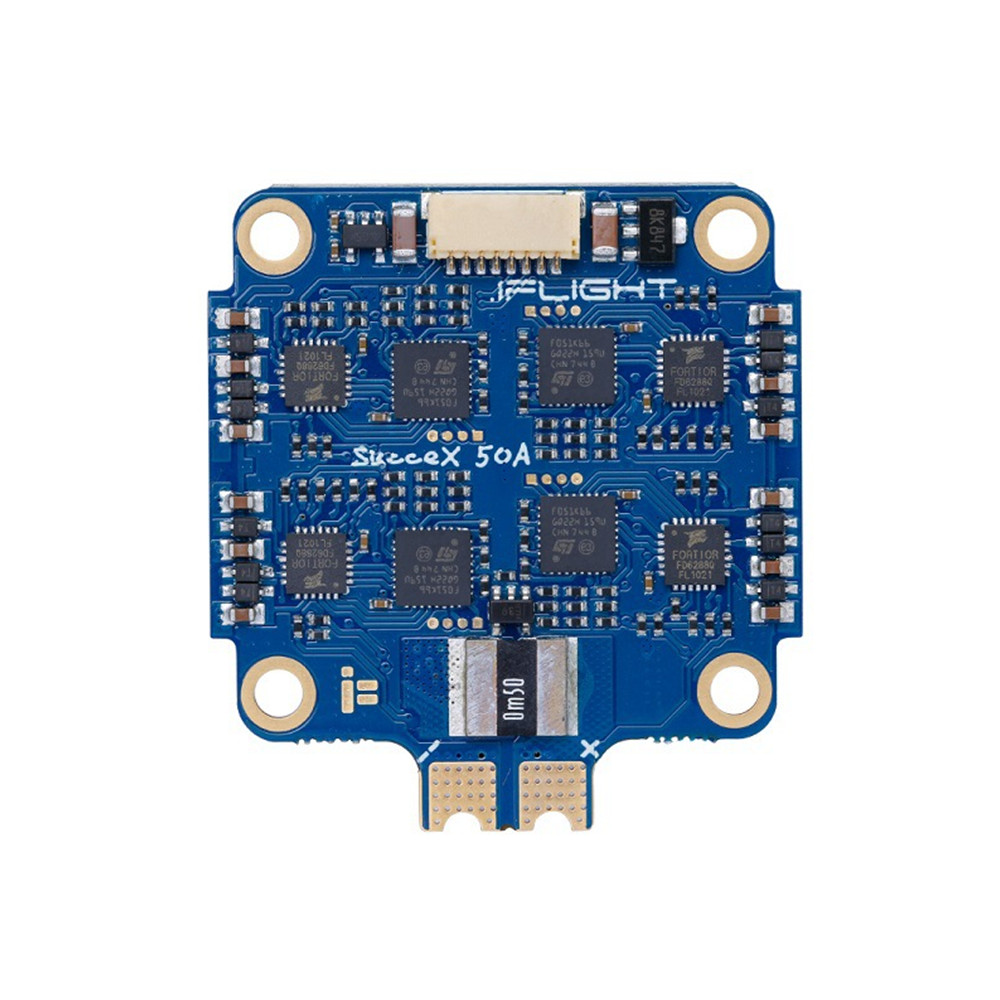

SucceX 50A BLheli_32 4In1 ESC
Item Name: 50A BLheli_32 2-6S 4in1 Brushless ESC
Version: Standard Version ( Without Heatsink ) ;
Deluxe Version ( With Heatsink)
Con. Current: 50A
Input Voltage: 2-6S
Firmware: BLheli_32
BEC: NO Weight: 14.4g
Mounting Hole: 30.5×30.5mm ( M3)
– Support Telemetry
– Support Oneshot, Multishot, DShot150/300/600 and DShot1200
Package Included:
1x F7 Flight Controller
1x 50A 4in1 ESC
1x bag of Screws
1x bag of Cables
