Description
Product introduction:
IDC-58WF is a high-performance, low-power, small-sized AV to WiFI wireless video module that complies with the IEEE802.11N standard
and is backward compatible with the IEEE802.11B/G standard, supporting the IEEE802.11i security protocol, and IEEE802. .11e Standard
service quality. Its high compatibility enables fast and easy communication with wireless devices, supports the latest 64/128-bit WEP data
encryption, supports WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanisms, and provides AP mode. In the AP mode, point-to-point
communication between the terminal and the client can be realized, and video synchronous transmission is supported, and the maximum
output resolution is 640×480@25FPS.
and is backward compatible with the IEEE802.11B/G standard, supporting the IEEE802.11i security protocol, and IEEE802. .11e Standard
service quality. Its high compatibility enables fast and easy communication with wireless devices, supports the latest 64/128-bit WEP data
encryption, supports WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanisms, and provides AP mode. In the AP mode, point-to-point
communication between the terminal and the client can be realized, and video synchronous transmission is supported, and the maximum
output resolution is 640×480@25FPS.
Specification:
Name: IDC-59WF
Interface Type: CIS/SD/UART/2S/AudioCodec
Storage format: .H264
Supply voltage: 3.8V-5.5V (±10%)
Module current: 230mA (measured at 5V)
Video CIS input: 640x480p@25, data bit width 10bit, frame valid, line valid signal polarity configurable
Video output: 640x480p@25
Support N/P AV camera
Antenna type External antenna
Product size: 37.75mm (length) x 18.85mm (width) x 5.6mm (height)
Protocol/Standard: IEEE802.11b, IEEE 802.11g, IEEE802.n (1T1RModes)
Frequency range: 2.400~2.4835GHz channel 1~11 (USA, Canada), 1~13 (Europe), 1~14 (Japan)
Modulation mode: 802.11b: DSSS (CCK, DQPSK, DBPSK)
802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM)
Transmit power: 802.11b/g/n: 17±1dbm
Working temperature: -10 ° C -60 ° C
Working humidity: 10%-90% RH without condensation
Application:
Remote control toy, model aircraft
Video Surveillance
Visualize the doorbell
Aerial photography
Smart home
Magic game
Medical microscope
Love goods
Electronic eyebrow pencil.
Features:
Support defogging;
Support defogging;

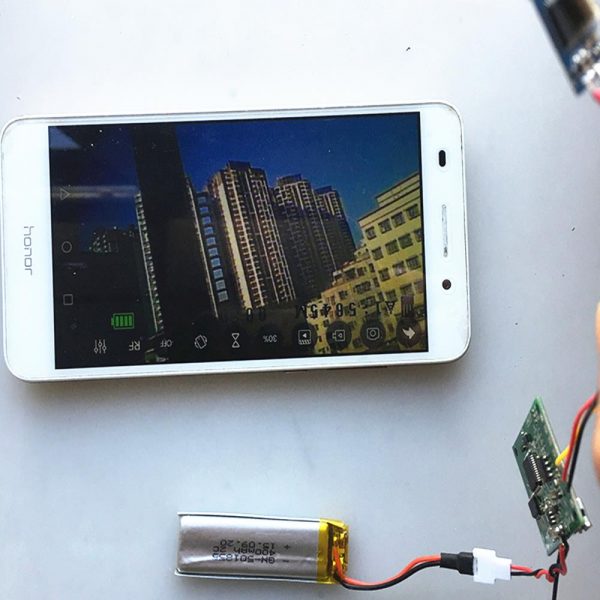

Support client video synchronization transmission;
The open transmission distance is 100 meters;
Support remote storage mode;
Support single video recording
802.11n-compliant, up to 150Mbps video and control signals for wireless transmission;
Gamma correction, color correction, automatic dead pixel correction, adaptive 3D/2D denoising, privacy masking;
Using a high compression rate video compression chip to control the data rate to enhance the transmission distance;
Highly integrated design, smaller size and lower power consumption;
Low power operation supporting deep sleep and standby modes;
Package included:
1 x IDC-59WF 5.8G WIFI AV FPV Transmitter Module 3V-5V for RC Drone/Video Surveillance
