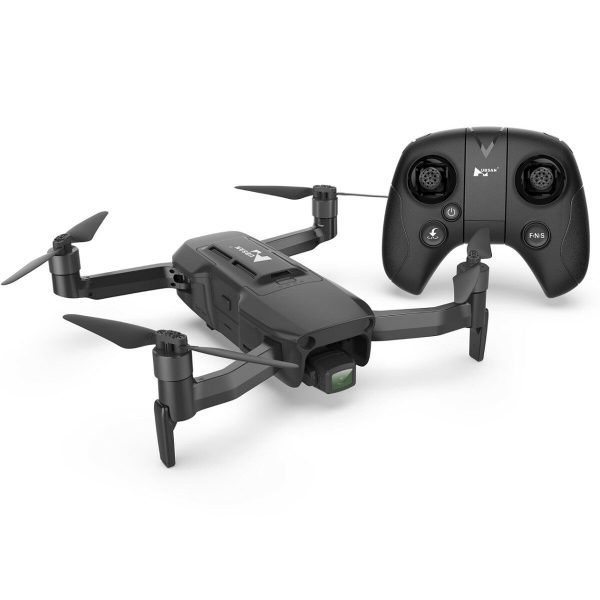

Hubsan BlackHawk1 GPS 9KM FPV Support 4G with 4K 30fps HD Camera 3-axis Gimbal 37mins Flight Time Foldable RC Drone Quadcopter RTF 2 Batteries Combo
$449.99
Description
Hubsan BlackHawk1 GPS 9KM FPV Support 4G with 4K 30fps HD Camera 3-axis Gimbal 37mins Flight Time Foldable RC Drone Quadcopter RTF 2 Batteries Combo
Specifications:
Aircraft
|
Dimensions | Expand: 229.55 x 178 x 73.6mm Folded: 118.7 x 172.5 x 67.6mm |
| Diagonal Wheelbase | 266mm | |
| Color | Black | |
| Takeoff Weight (with battery) | About 590g | |
| Maximum Ascension Speed | 3m/s (N), 4m/s (S) | |
| Maximum Descent Speed | 1.5m/s (N), 3m/s (S) | |
|
Maximum Horizontal Flying Speed |
Movie Mode: 3m/s (S, No wind at sea level) Normal Mode: 6m/s (N, No wind at sea level) Sports Mode: 10m/s (S, No wind at sea level) |
|
| Maximum Take-off Altitude | 5000 meters | |
| Maximum Anti-wind Capability | 12m/s | |
| Max Tilt Angle | 30°(S), 20°(N), 20°(F) | |
| Positioning | GPS / GLONASS / Beidou Satelite | |
| Flight Duration |
Hovering for 33 minutes (Windless, measured in 2-4 meters hovering) Slow Flight Time 37 minutes |
|
Power System
|
Maximum Working Current |
25A |
| Propeller | Model: Foldable & Diameter 158.6mm Color: Black |
|
| Motor | Outward Rotation Brushless Motor 1503, KV2820 |
|
| ESC | Digital ESC Brushless 20A x 4 | |
Camera
|
CMOS Image Sensor | 1/2.6inch CMOS, 12 million effective pixels |
| Lens Specifications | FOV 80° Aperture f/2.2 EFL: 3.5mm Distortion: <1.5% |
|
| Focus Point | 0.5m to ∞ | |
| Video Resolution |
4K: 3840×2160@30fps 2.7K: 2704×1520 1080P: 1920×1080@30fps |
|
| Shutter Speed | 1/30s-1/8000s | |
| Video Bitrate | 45Mbps-100Mbps | |
| Photo Format | JPEG | |
| Video Format | MP4 (H.264/MPEG-4 AVC) | |
| Portrait Mode | Support | |
| Control Method | APP, Remote Control | |
| Firmware Upgrade | OTA | |
| USB Interface | Micro-USB | |
| Supported SD Cards | MicroSD Card, U3 or Class10 above 16G/32G/64G/128G |
|
Wireless Transmission System
|
Image Transmission System | SyncLeas 2 |
| Wireless Transmission Distance | FCC: 9KM CE: <= 9KM; SRRC: <= 9KM |
|
| Band Mode | Direct Scan to Pair | |
| Transmission Delay | Within 200ms | |
| Antenna Position | Forearm Support Foot (Slightly Inclined) | |
| Remote Control | HT16MY | |
Gimbal
|
Gimbal | HY817C |
| Stabilization | 3-Axis (tilt, roll, pan) | |
| Degree of Freedom | Triaxial | |
| Max Pitch Speed |
120°/s | |
| Mechanical Range | Pitch: -120° to 45° Roll: ± 35° Yaw: ± 35° |
|
Flight Controller
|
FC Version | Third-generation Flight Controller |
| Basic Flight Mode | Wind Resistance Mode / Sports Mode / Normal Mode | |
| Altitude Hold Mode | Barometer | |
| Fixed-point | Visual Optical Flow, GPS | |
| Unlock/Lock | Outer ‘Eight’ Unlock/Lock | |
| Fill Light | Support 0.5m-5m low light environment to automatically turn on the light | |
| One Key Take-off/Landing | APP Supported，Remote Control Unsupported | |
| Out of Control Protection | √ | |
| Low Battery Protection | Automatically Return to Home and Land on Low Battery | |
| Waypoint Flight | √ | |
| Flying Around | √ | |
| Intelligent Battery |
Cell Balancing, Intelligent Power Estimation, Overcurrent Protection, High Temperature Protection, Overcharge Protection, Over-discharge Protection, Auto-Discharging Protection, Struggling Mode, Intelligent On-Off Control |
|
| Motor Stall Protection | √ | |
Remote Control
|
Color | Black |
| Wireless Transmission Solution | SyncLeas 2 | |
| Display | NO Support | |
| Operating Environment Temperature | -5 Deg.C- 50 Deg.C | |
| Effective Range | FCC: 9KM CE: <= 9KM; SRRC: <= 9KM |
|
| Built-In Battery | 3200mAh | |
| Mode | Mode 2 (Left Hand Throttle) | |
| Buzzer | Support | |
| Support Mobile System | Android, iOS | |
| Working Time | 2.5h (Normal Flight Time) | |
| Interfaces Type | Lighting / Micro USB / Type-C | |
Battery
|
Battery Type | Li-Po Battery 4S |
| Capacity |
3200mAh (Standard) 5000mAh (Long Duration) |
|
| Standard Voltage | 3.6Vx4=14.4V | |
| Charging Limit Voltage | 4.2Vx4=16.8V | |
| Discharge Rate | 8C | |
| Charging Time | 120 minutes | |
| Weight |
230g (Standard) 300g (Long Duration) |
|
| Working Environment Temperature | -5 Deg.C- 40 Deg.C | |
| Charging Environment Temperature | 0 Deg.C- 40 Deg.C | |
| Smart Battery |
Cell Balancing, Intelligent Power Estimation, Overcurrent Protection, High Temperature Protection, Overcharge Protection, Over-discharge Protection, Intelligent On-Off Control |
|
| Battery Smart Buckle | √ | |
| Low Battery Protection |
Support Turn on the battery after the power is less than 1% In order to prevent over-discharge, the battery no longer provides external power output |
|
| Struggling Mode | √ | |
| Internal Resistance Monitoring | √ | |
| HBLog | √ | |
| Intelligent Diagnosis | √ | |
| Remote Locking | √ | |
| Online Upgrade | √ | |
APP
|
APP Name | X-Hubsan 2 |
Mobile Device
|
Requirements | iOS 10.0 or higher Android 6.0 Or higher |
Features:
– 9KM long digital image transmission distance.- 4G support for more stable low altitude flight wireless links.- Ultra-Clear 4K 30-frame Video- 1/2.6inch image sensor, 100Msbp video bit rate- 3-Axis mechanically stabilized gimbal- Portrait Mode & Upward Vision Mode- Maximum Flying Time up to 37mins
Package Included:
1 x BlackHawk1 Drone1 x Remote Controller2 x Drone Battery (Two 3200mAh or One 3200mAh + One 5000mAh, It can be choose)2 x Pairs of Propellers1 x Intelligent Charger1 x USB Charging Cable2 x RC Cable1 x Gimbal Cover8 x Screw1 x Screwdriver1 x Manual1 x Storage Bag
Additional information
| Weight | 1.8 kg |
|---|
