Description

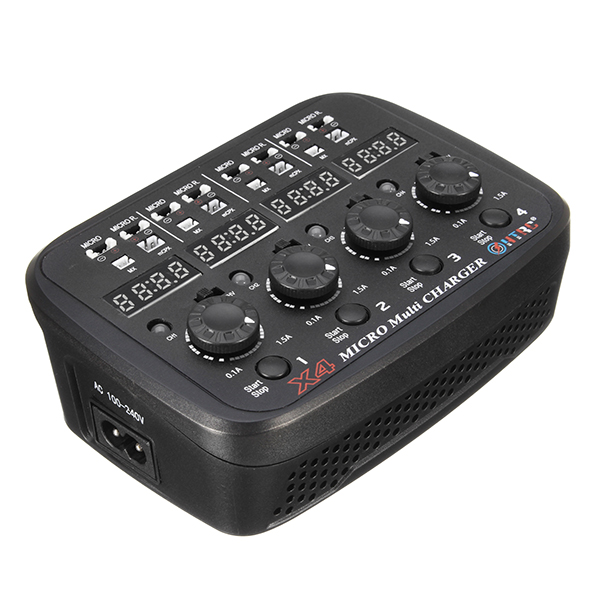

HTRC X4 Micro Multi AC/DC 24W 1.5A 1cell Lipo/LiHV Charger
X4 micro multi charger conform to national safety standards, built-in intelligent safeguard system. Not only protect the charger but also protect the battery safety.
Description:
Brand name: HTRC
Item number: X4
AC Input Voltage: 100-240V (35-45W)-60HZ
DC Input Voltage: 11-15V (30-35W)
Charge Circuit Power: 4x6W (26W MAX) ±10%
Charge Current Range: 0.1-5A±10%
Battery type: 4×1 cell LiPO/LiHV
Battery connector type: Micro/ Micro Reverse/ MX/ mCPX
Working temperature: 0-50℃
Dimension: 132mmx100mmx50mm
Weight: 0.28kg
Features:
* Four independent ports can be used at the same time.
* Four different kinds of battery connectors in each port.
* Four independent functioning charging circuits.
* Four independent 4-digital LED displays current and capacity.
* LED and audible sound indicate charging status.
* Adjustable charging current from 0.1-1.5A.

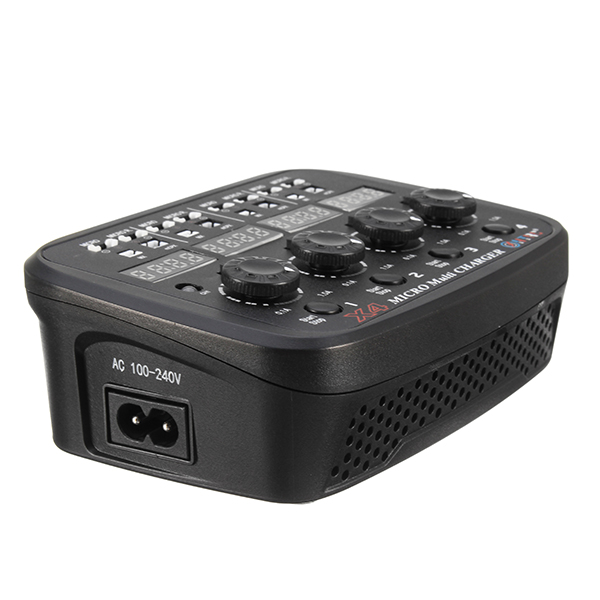

* AC/DC dual power input.

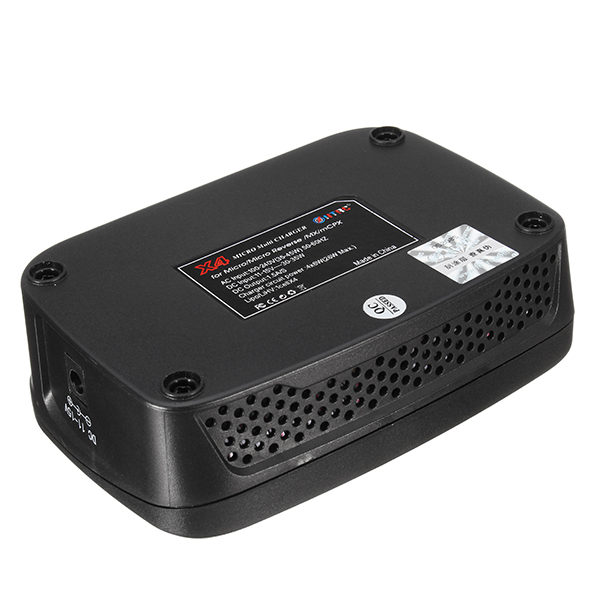

* Efficient ventilation.
* Maximum protection: short circuit protection; over current protections; battery reverse polarity protection and DC input voltage protection.
HTRC X4 Micro Multi Charger Manual, Click here

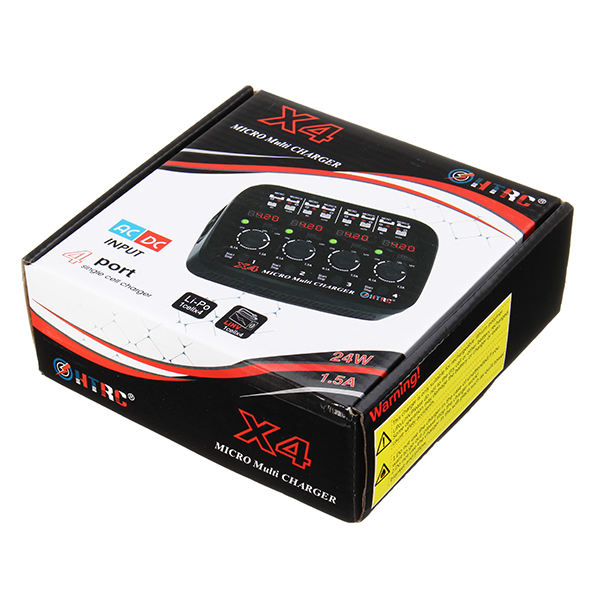

Pacakage Included:
1X HTRC X4 Micro Multi Charger
