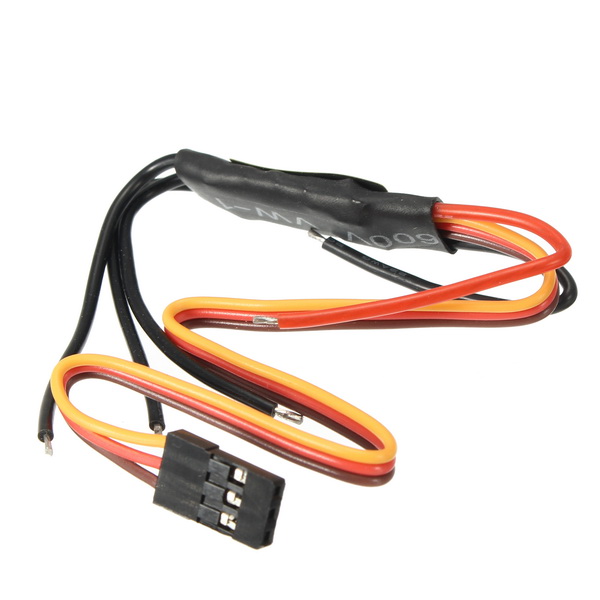

Htirc Hornet Series 6A 2-4S Brushless ESC With 5V/0.5A BEC For RC Airplane
Description:
Brand Name: Htirc
Series: Hornet
Item Number: HTI-H06-221201
Continuous Operating Current: 6A
Burst Current: 8A(10s)
Peak Current: 22A
Operating Voltage: 2-4S Lipo
Dimension: 22x12x6.5mm
Weight: 5g (with cable)
BEC Type: BEC
BEC Output Voltage: 5.0V
BEC Current: 0.5A
Programmable: Yes
Features:
Smaller size,lighter and lower calorific value than other ESC that with same current specification.
BEC output voltage is adjustable,the default is 5V.
Automatically adjust the throttle stroke.
Use imported three-terminal regulator or high-quality power management module to provide BEC voltage, with a strong ability to load and BEC output with short circuit protection,undo short circuit to restore the output.
4-layer PCB board, lower internal resistance, less heat.
English Manual, Click Here
Package Included:
1x Htirc Hornet Series 6A ESC
