Description

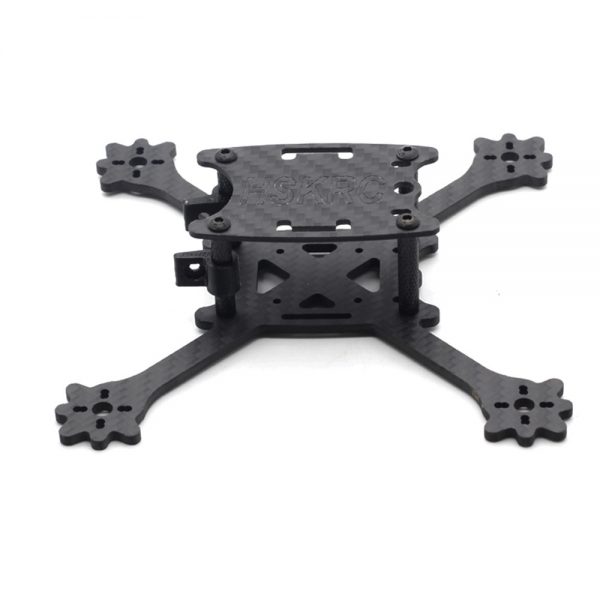

HSKRC 3 Inch 140mm Wheelbase 3mm Arm Thickness Carbon Fiber Racing Frame Kit for Mini RC Drone
Specification:
Brand Name: HSKRC
Model: 140
Item Name:3 Inch 140mm Wheelbase Frame Kit
Wheelbase: 140mm
Arm Thickness: 3mm
Bottom Plate Thickness: 3mm
Upper Plate Thickness: 1.5mm
Aluminum Standoff: M3*20mm
Camera Mounting Size: 19mm
Frame Height: 30mm
Weight: 29g
Recommend Parts: ( Not Included )
Flight Controller: 20x20mm F3 / F4 Flight Controller
Brushless ESC: 20x20mm 15A ESC
Brushless Motor: 1106 7500KV Motor
Propeller: 3 Inch Prop
Lipo Battery: 2S 550mAh Lipo
The Following Parts are suitable:
FC & ESC Flytower: 20x20mm LDARC Omnibus F4 FC & 20A BL_S 4In1 ESC
Brushless Motor: HSKRC 1106 7500KV 2S Brushless Motor
Propeller: Emax AVAN Mini 3 Inch 3-Blade Propeller
Camera: Runcam Micro Sparrow 1/3" CMOS 700TVL Camera
Lipo Battery: 2S 550mAh Lipo Battery
Package Included:
1x HSKRC 140mm Frame Kit
