Description

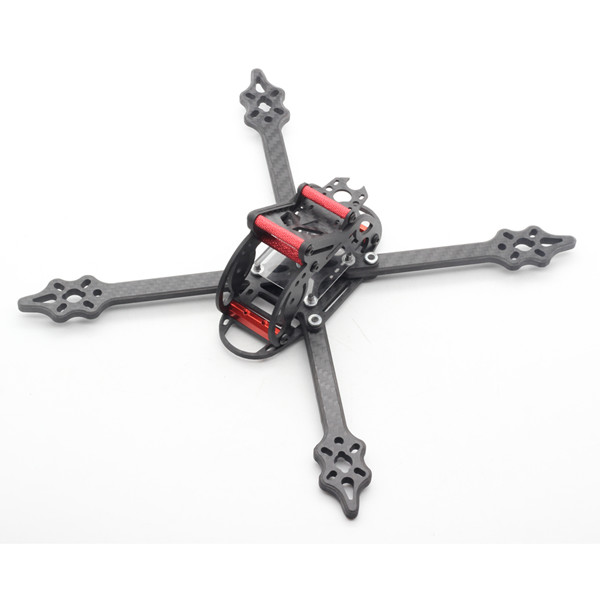

HSK5-X215 215mm 5mm Arm Thickness Carbon Fiber Racing Frame Kit
Specification:
Item Name: 215mm 5mm Arm Thickness Carbon Fiber Frame Kit
Model: HSK5-X215
Wheelbase: 215mm
Material: Carbon Fiber
Arm Plate Thickness: 5mm
Bottom Plate Thickness: 2mm
Side Plate Thickness: 2mm
Camera Mounting Base: 35 Degree
Weight: 100g
Recommended Parts:
Flight Controller: CC3D/ Naze32/ F3/ F4 Flight Controller
ESC: 12A-30A ESC
Need use Flight Controller & ESC Flytower
Motor: 1806-2306 Brushless Motor
Motor Mounting Hole: 16*19
Propeller: 4-5 Inch
The following parts are suitable:
Flight Controller & ESC: XJB F425 Dshot Flytower Micro F4 Flight Controller & 25A Blheli_S 2-4S 4 In 1 ESC
Motor: BrotherHobby Returner R4 1806 2850KV 3-4S FPV Racing Brushless Motor
Propelelr: 10 Pairs Kingkong 5045 3-blade Propeller
Camera: Runcam Swift 600tvl FPV Camera
Package Included:
1x 215mm Frame Kit
1x Strap
