Description
Specification:
Input voltage: DC10-18V
Charge/Discharge power: 250W/20W
Charge/Discharge current: 0.05-10A/7A
Lipo/Lilo/LiFe: 1-6S
NiCd/NiMH: 1-17S
Lead Acid(Pb): 2-24V
Dimensions: 137x82x26mm
Net weight: 340g
Feature:
1.Unique Lithium Battery Monitor Program
When you use other equipment to charge or discharge a Lithium pack,you can use the charger to monitor the per-cell voltages, battery temperature and process time. If any individual cell appears over-charged or over-discharged or the pack is too hot or the process has gone on for too long,the charge will generate an alarm sound and the related information will blink.
2.Unique Lithium Battery Expanding Discharging Program
When you connect the external capacity resistance,you can use it as the maximum discharge power capacity -170W(25V/7A).
3.Data Storage
Convenient set of 10 battery profile memories that can be saved and loaded by number,
4. Battery Interior Resistance Measurement
The charger can not only measure the internal resistance of the battery pack, and also can measure the per-cell internal resistance (only available for lithium battery).

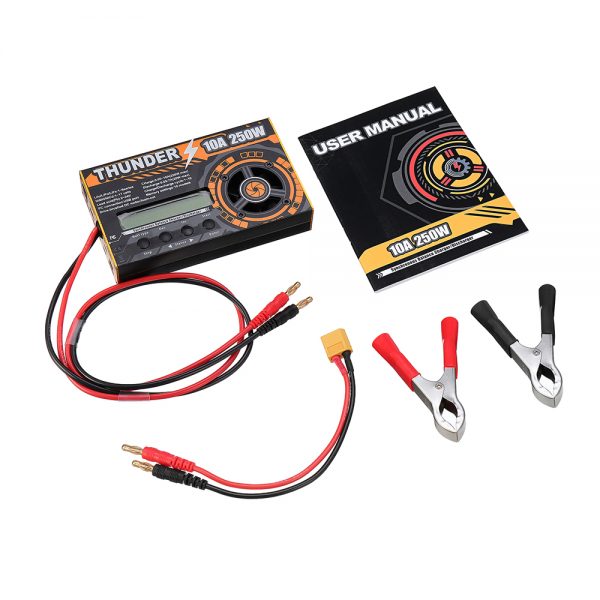

Packaging included:

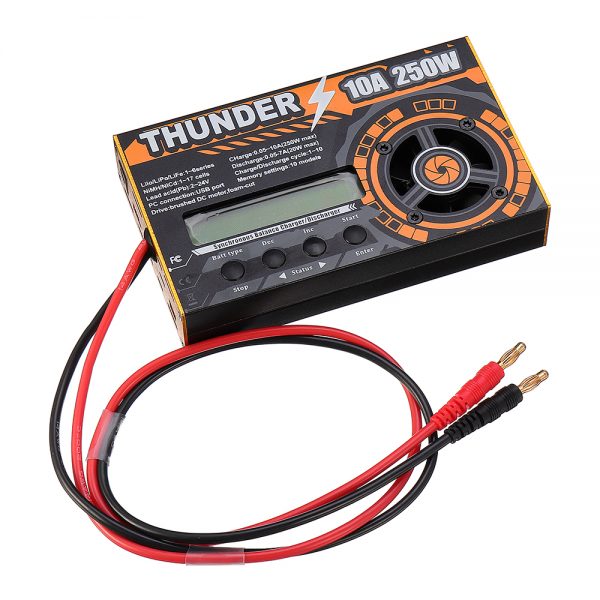

1X Thunder 250W 10A Charger
