Description

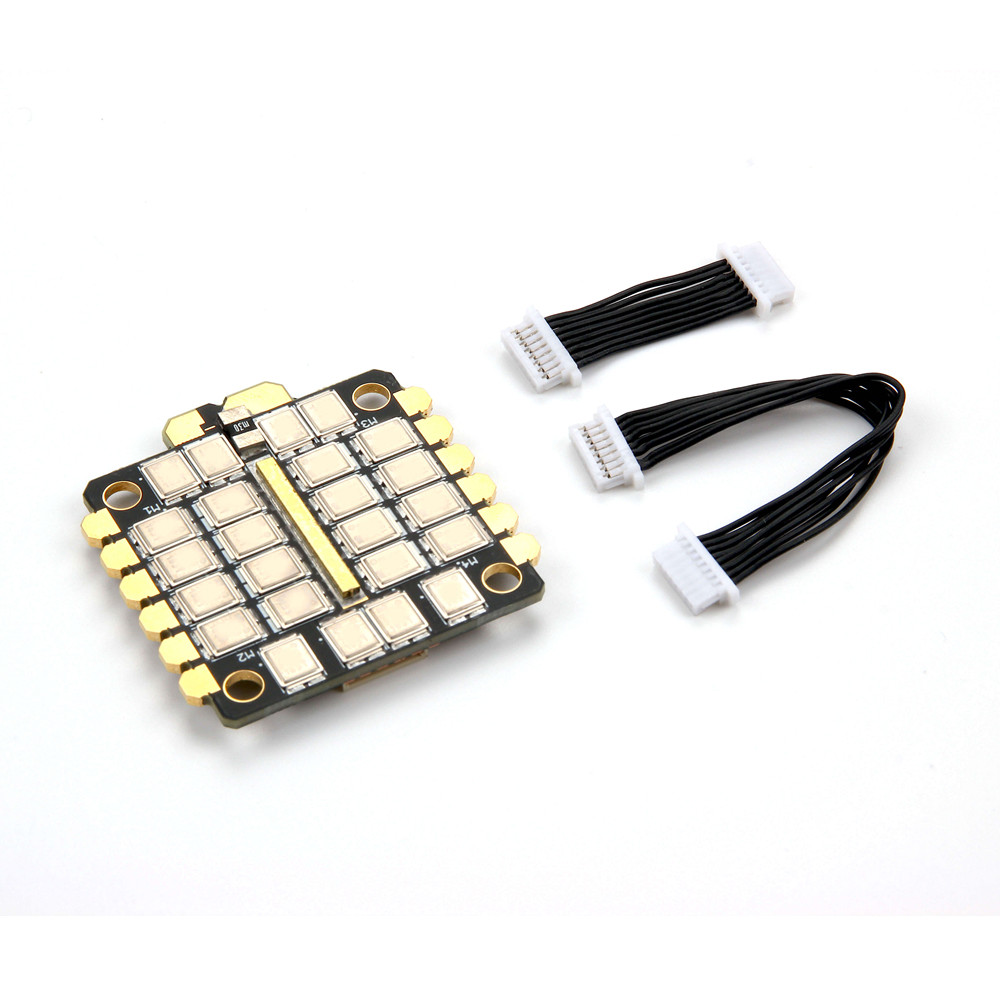

Holybro Tekko32F3 Metal 65A BLheli_32 4-6S 4in1 ESC DShot1200 w/ F3 MCU & Current Sensor for FC Drone FPV Racing
Introducation:
New BLHELI32 ESC with F3 MCU, give more smooth control and faster responding speed. using metal case mosfet for better Heat dissipation.
We tested in short time on 220A intotal. The actual performance will only limited by the air flow.
Specification:
Brand Name: Holybro
Model: Tekko32F3 Metal
Item Name: 65A BL_32 32Bit DShot1200 4 in 1 ESC
Mounting Hole: 30.5×30.5mm
Notice:
1. The air flow is very import if you want to run this 4in1 in high current.
2. The input cable(from lipo to 4in1), should be good soldered, and at least 12AWG
3. Please use non-metallic isolation standoffs (marked in red in the diagram above) for the mounting holes on the ESC.
Because mounting holes and motor pad are connected.
Features:
– The 4in1 has onboard analog current sensor, and TLM function(then no current reading over TLM)
– Using metal case mosfet for better Heat dissipation
– BLheli_32 firmware, support Oneshot, Multishot, Dshot150, DShot300, DShot600 and DShot1200
Package Included:
