HolyBro Pixhawk 4 Autopilot Flight Controller & M8N GPS Module Combo
Description:
Pixhawk 4 is the latest update to the successful family of Pixhawk flight controllers. It is designed and developed in collaboration with Holybro
and the PX4 team optimized to run the full Dronecode stack and comes preinstalled with the latest PX4 firmware (v1.7).
Specification: ( Manual)
Brand Name: HolyBro

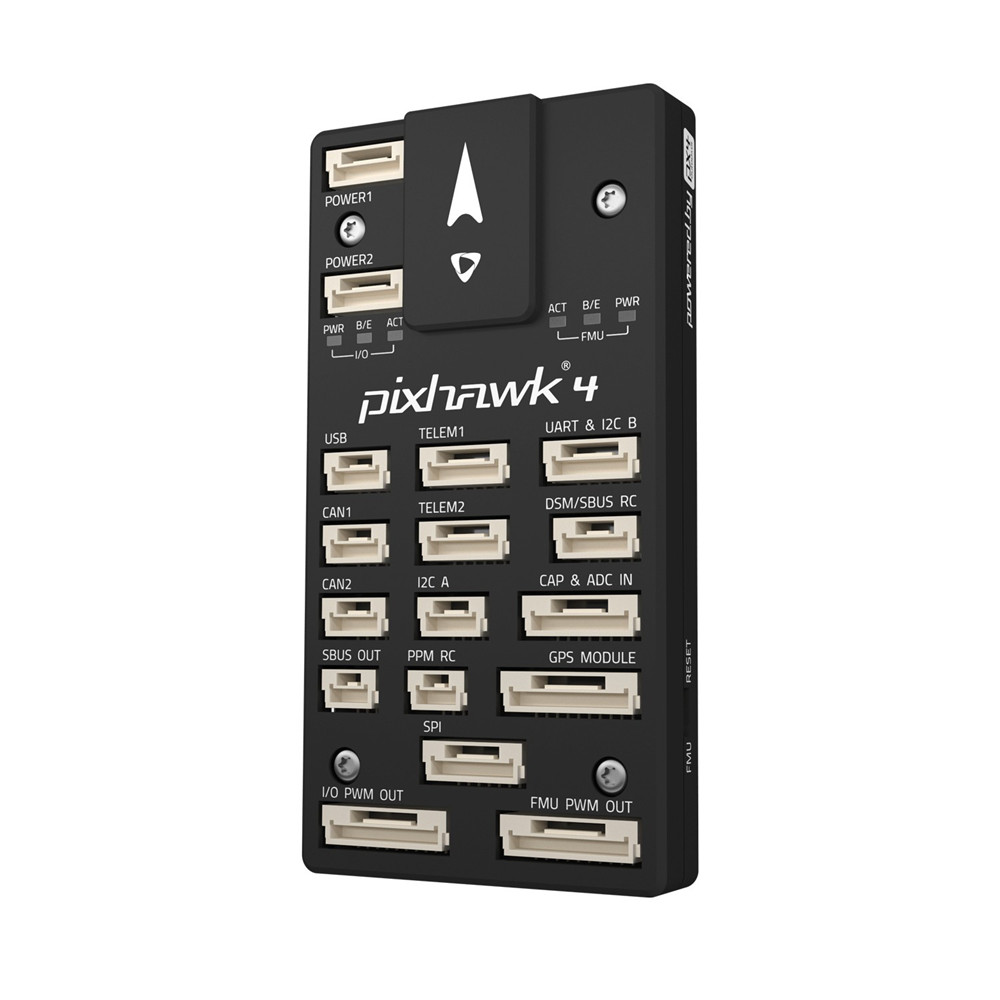

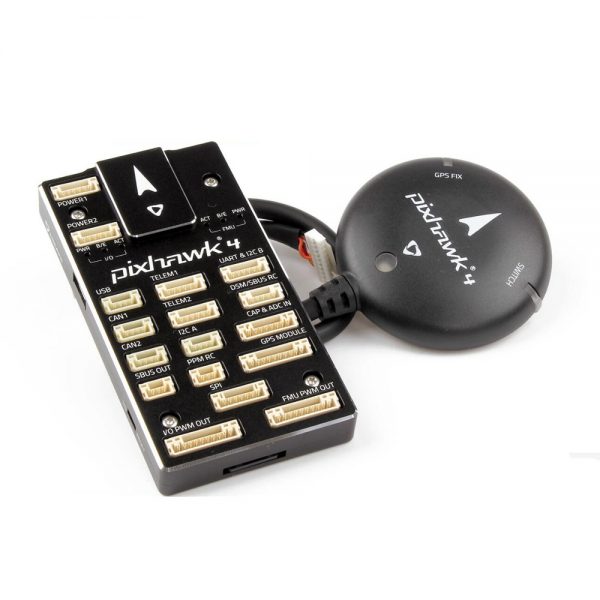

Item Name: Pixhawk 4 Flight Controller & M8N GPS Combo
Version: Plastic Case / Aluminum Case ( Optional)
Dimensions: 44x84x12mm
Weight: 15.8g
Diffirence of them:
Mainly points at the Pixhawk 4 Flight Controller's Case.
Diffirence of them:
Mainly points at the Pixhawk 4 Flight Controller's Case.
Technical Specification
Main FMU Processor: STM32F765
(32 Bit Arm®Cortex®-M7, 216MHz, 2MB memory, 512KB RAM )
(32 Bit Arm®Cortex®-M7, 216MHz, 2MB memory, 512KB RAM )
IO Processor: STM32F100
(32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM )
(32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM )
Accel/Gyro: ICM-20689
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611

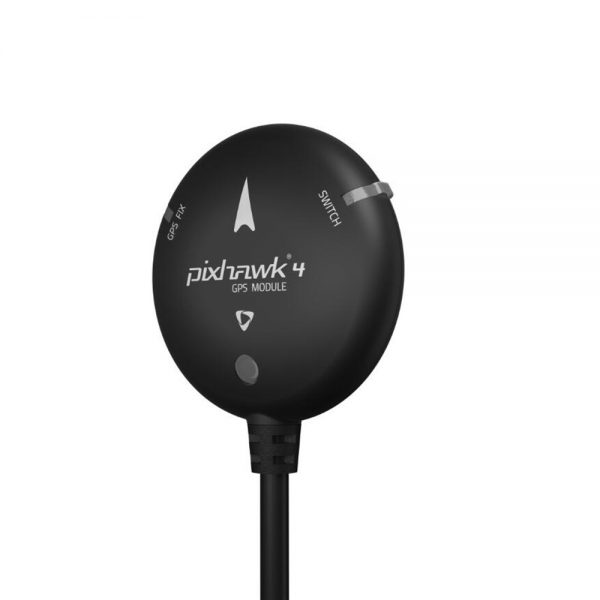

GPS: M8N GPS/GLONASS receiver;
integrated magnetometer IST8310
Electrical data
Power Module Output: 4.9~5.5V
Max Input Voltage: 6V
Max Current Sensing: 120A
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Interfaces
●8-16 PWM servo outputs (8 from IO, 8 from FMU)
●3 dedicated PWM/Capture inputs on FMU
●Dedicated R/C input for CPPM
●Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
●Dedicated S.Bus servo output
●5 general purpose serial ports
– 2 with full flow control
●5 general purpose serial ports
– 2 with full flow control
– 1 with separate 1.5A current limit
●3 I2C ports
●4 SPI buses
-1 internal high speed SPI sensor bus with 4 chip selects and 6 DRDYs
– 1 internal low noise SPI bus dedicated for Barometer with 2 chip selects, no DRDYs
●3 I2C ports
●4 SPI buses
-1 internal high speed SPI sensor bus with 4 chip selects and 6 DRDYs
– 1 internal low noise SPI bus dedicated for Barometer with 2 chip selects, no DRDYs
●1 internal SPI bus dedicated for FRAM
● Supports dedicated SPI calibration EEPROM located on sensor module
●1 external SPI buses
●Up to 2 CANBuses for dual CAN with serial ESC
– Each CANBus has individual silent controls or ESC RX-MUX control
●Analog inputs for voltage / current of 2 batteries
●2 additional analog inputs
Environmental data, quality & reliability
Operating temp. ~40~85C
Storage temp. -40~85C
Features:
– A new and small form factor
– More computing power and 2X the RAM than previous versions
– New sensors with higher temperature stability
– Integrated vibrations isolation
– Increased ease-of-use: pre-installed with most recent PX4 (v1.7)
– Additional ports for better integration and expansion
Package Included:
1x Pixhawk 4 Flight Controller ( Plastic Case Or Aluminum Case )
1x GPS Module
1x Power Management Board *1
1x I2C splitter Board
3x 6 to 6 pin cable (power)
2x 4 to 4 pin cable (CAN)
1x 6 to 4 pin cable (Data)
2x 10 to 10 pin cable (PWM)
1x 8 to 8 pin cable(AUX)
1x PPM/SBUS out cable
1x XSR receiver cable
1x DSMX receiver cable
1x SBUS receiver cable
1x USB cable *1
1x 'X'type folding pedestal mount
2x 70mm & 140mm carbon rod stand off
1x 6*3 2.54mm pitch Horizontal Pin
1x 8*3 2.54mm pitch Horizontal Pin
1x Foam Set
