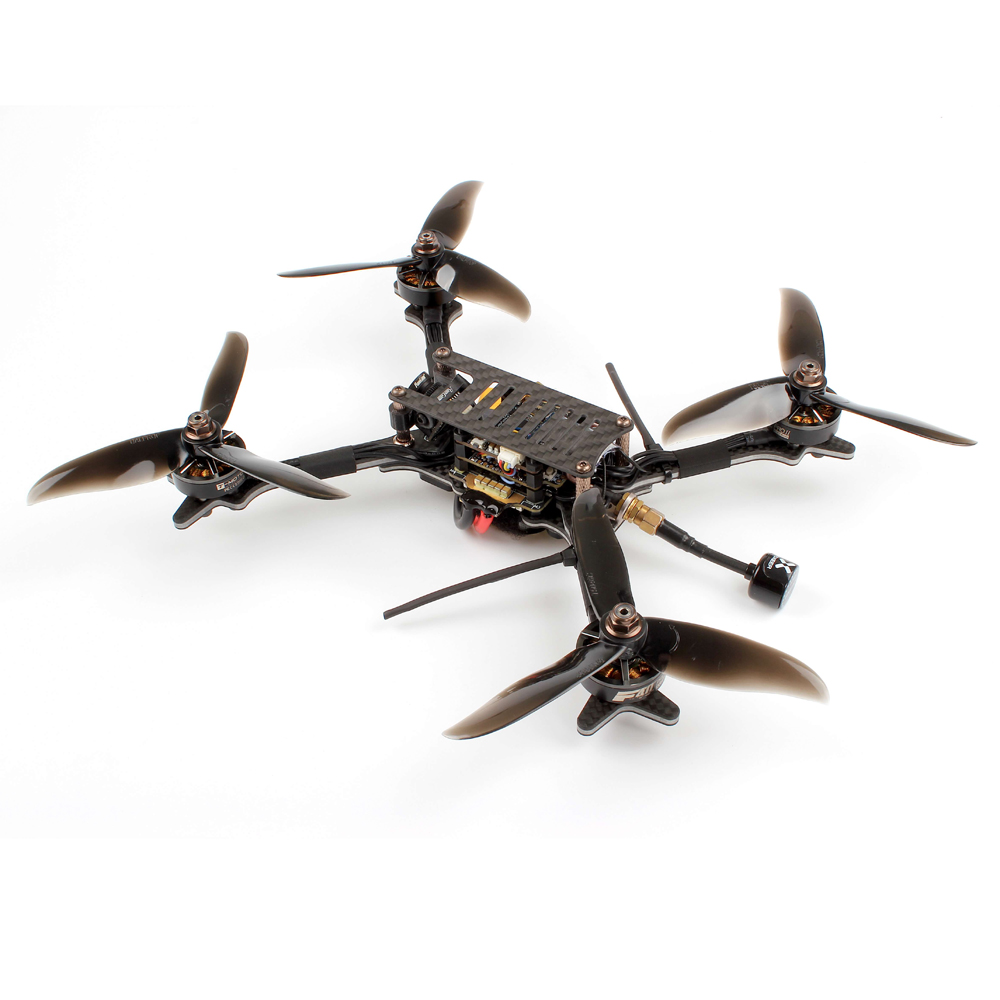

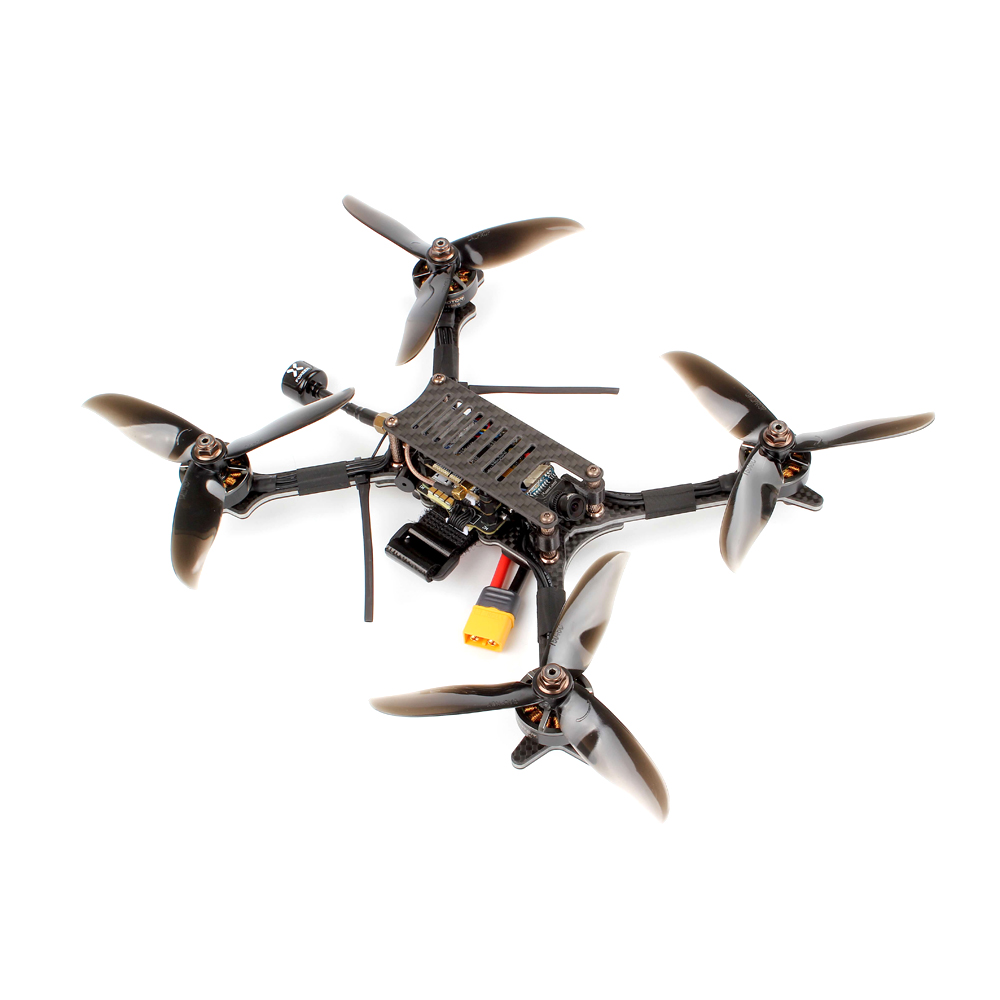

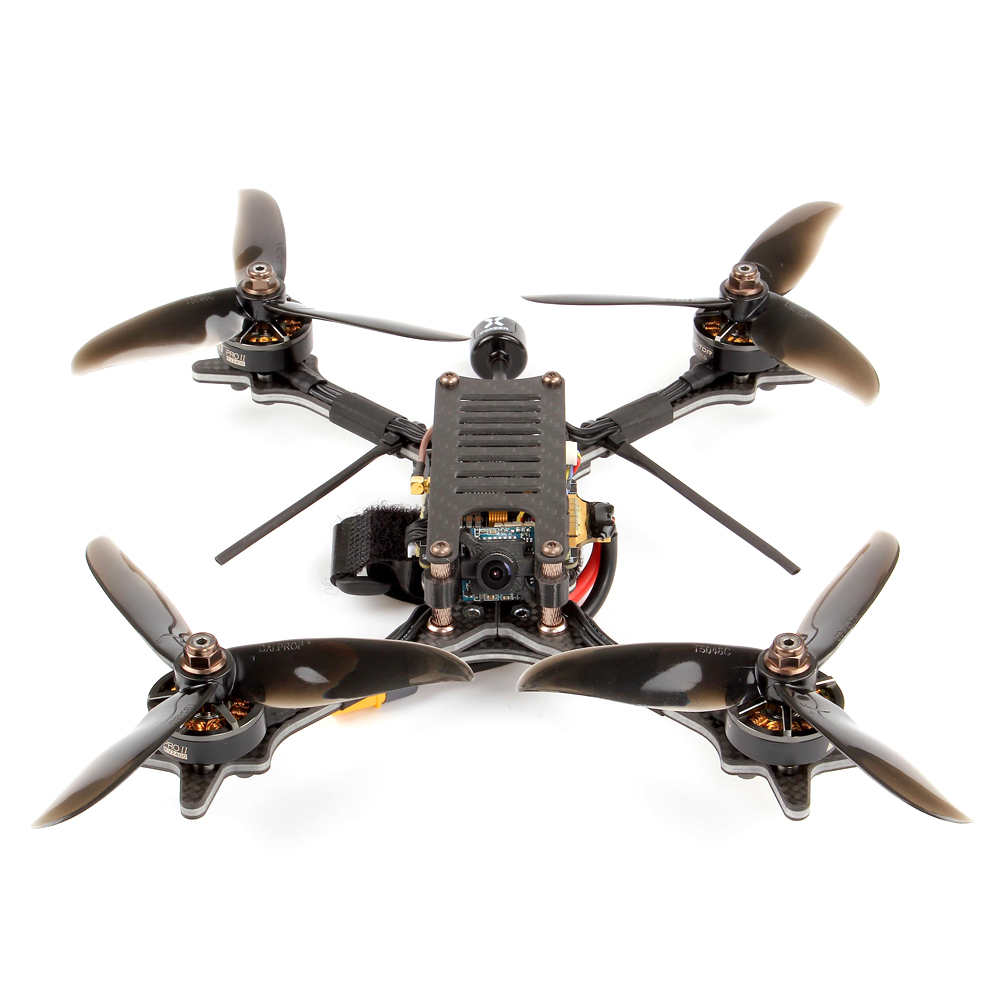

Holybro Kopis 2 SE FPV Racing RC Drone PNP BNF w/ Kakute F7 OSD Atlatl HV V2 800MW 35A Dshot1200



Brand name: Holybro

Item name: Kopis 2 SE FPV Racing Drone

Flight controller: Kakute F7

VTX: Atlatl HV V2

ESC: Tekko32 4 IN 1 35A (Dshot1200 compatible)

Brushless motor: T-motor F40 PRO2 2400KV

Propeller: DALPROP Cyclone T5046C (4 pairs)

Camera: Runcam Micro Swift

Antenna: Foxeer Lollipop 5.8G RHCP
Receiver: Frsky R-XSR (BNF version only)

MCU: STM32F745VGT6 32-bit processor

IMU: ICM20689 (SPI) 32 kHz capable

Barometer: BMP280

TF card for Blackbox logging

Supports 4S-6S battery (motors are optimized for 4S)

Weight 299 grams without battery or props



-5mm full 3k carbon fiber twill.

-Counter-sunk screws on base for great appearance and protection of battery against damage.

-KakuteF7 flight controller with soft-mounted gyro for mechanical filtering of vibration. Means you can disable more software filters for best flight handling.

-Improved soft-mounting foam for KakuteF7 gives optimal balance of stiffness and damping for even better gyro performance than before!

-Betaflight OSD included. Monitor voltage and battery capacity in your FPV goggles. Change PIDs and Rates using your transmitter sticks.

-Atlatl HV V2 video transmitter:

5.8 GHz

Standard 40-channel set. However 5645 MHz and 5925 MHz 5945 MHz are illegal in many areas, so they are not supported. If you select one of these channels, it will simply fail to work.

Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW

MMCX antenna connector for easy, secure connection. Won’t break or come loose like the IPEX connector used on other vTX.

Control the vTX channel and transmit power from the OSD using your transmitter sticks or from your Transmitter. No more picking up the quad to change vTX settings!

-Buzzer included.

-RunCam Swift Micro FPV camera

-Adjustable camera uptilt from 0 degrees to 90 degrees.

-Serial receiver supported (SBUS, iBUS, Spektrum). PPM and PWM receivers not supported.

Holybro KOPIS 2 English Manual


1 x Kopis 2 SE FPV Racing Drone

1 x 5.8 GHz FPV antenna

8 x 5046 3-blade propeller

1 x Battery strap (installed)
