Description

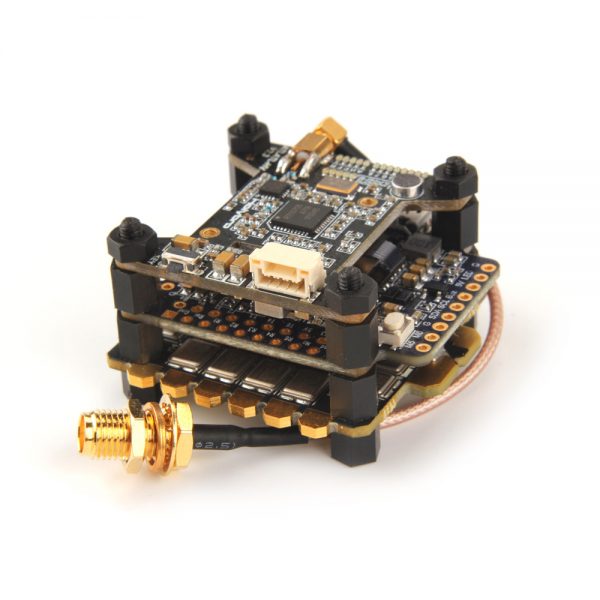

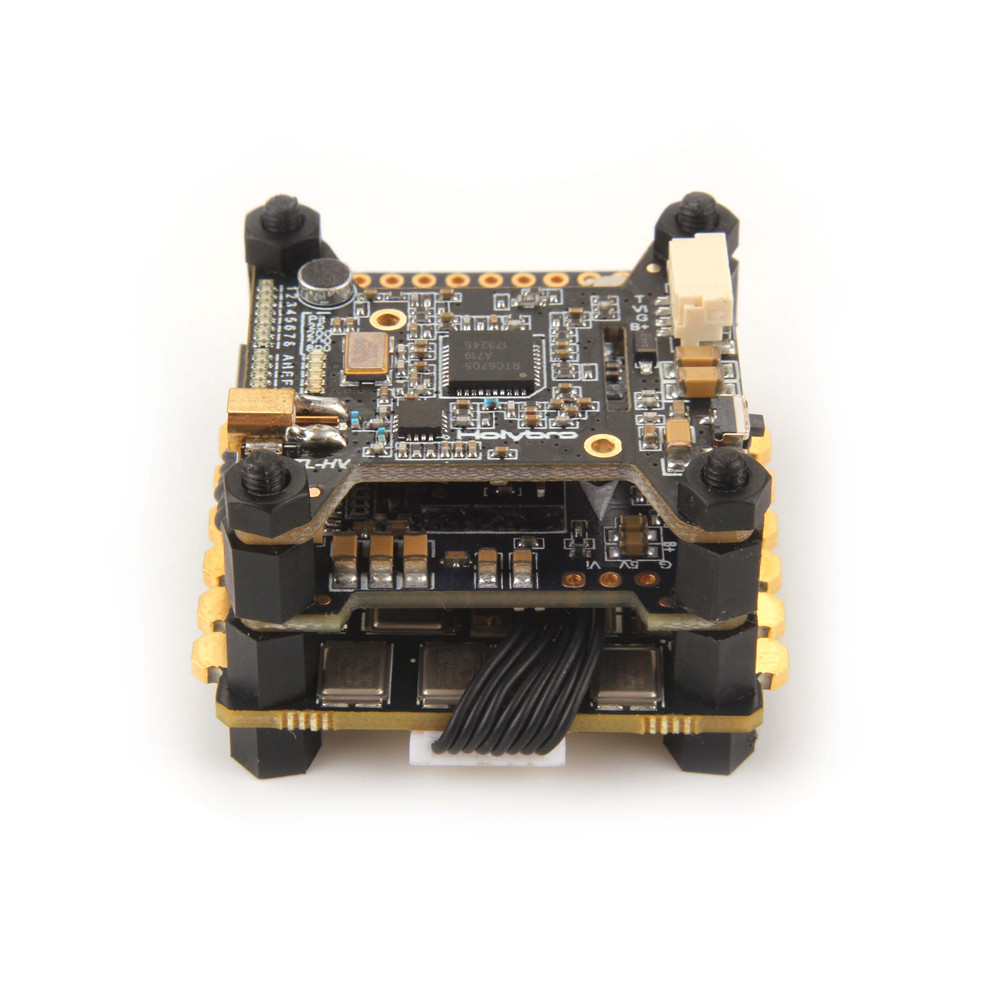

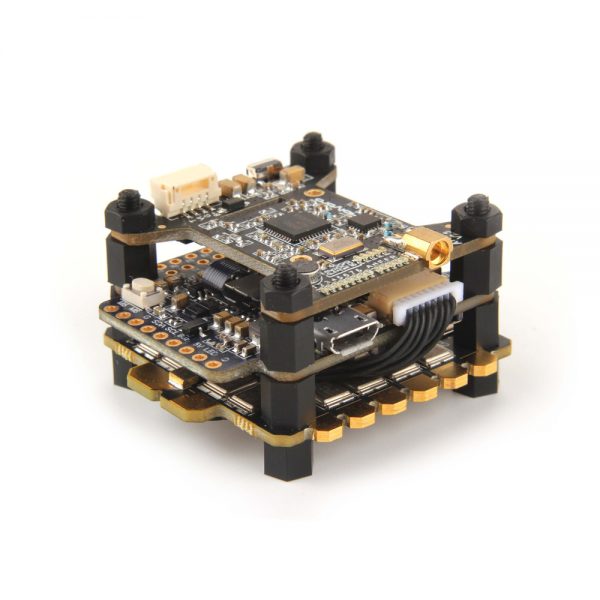

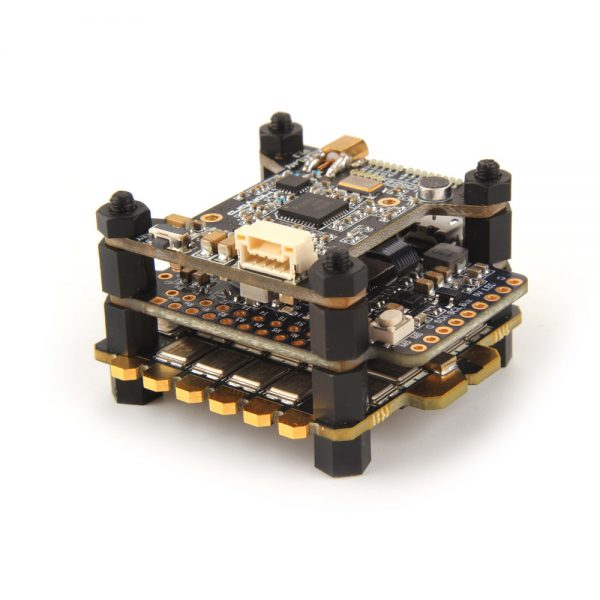

Holybro Kakute F7 V1.5 Flight Controller & Atlalt HV V2 40CH VTX & 65A BL_32 Tekko32 F3 Metal 4in1 ESC Combo
Specification:
Brand Name: Holybro
Item Name: F7 FC & 65A 4in1 ESC & 5.8G 40CH VTX Stack Combo
Stack Height: 26mm
Kakute F7 V1.5 Flight Controller ( Manual )
Brand name: Holybro
Item name: Kakute F7 V1.5
MCU: STM32F745 32-bit processor
IMU: MPU6000 (SPI)
Barometer: BMP280
Current Sensor: Approximately 130 amps maximum measurable value
Current Sensor: Approximately 130 amps maximum measurable value
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
6 hardware UARTS (UART1,2,3,4,6,7)
All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”.
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
TF card for Blackbox logging
Dimensions: 35x41x7mm (includes foam-mounted gyro board in height)
Mounting Holes: Standard 30.5mm square to center of holes
Weight: 8g
Tekko32F3 Metal 4in1 ESC ( Manual)
Brand Name: Holybro
Model: Tekko32F3 Metal
F3(M4 Core) MCU, Runs BLHELI32 firmware, the MCU works at 108Mhz
The 4in1 has onboard analog current sensor, and TLM function(then no current reading over TLM)
Using metal case mosfet for better Heat dissipation
Supports Lipo 4-6S
Ext. cap needed for 6s (470uf 35v for 6s usage.)
Size:42 x 42 mm
Mounting holes:30.5×30.5mm
Weight: 12g
Notice:
The air flow is very import if you want to run this 4in1 in high current.
The input cable(from lipo to 4in1), should be good soldered, and at least 12AWG
Atlalt HV V2 40CH VTX ( Manual)
Item Name: 5.8G 40CH 25/200/500/800mW FPV Transmitter
Model: Atlatl HV V2
Transmitting Output Power: 25mW/ 200mW/ 500mW/ 800mW Switchable
Audio: 6 MHz + 6.5 MHz Mono
Antenna Connector: MMCX
Input Voltage: 7-28V (2-6S Lipo)
Dimension: 35(L)x 25(W)x 7(H)mm
Mounting Hole: 30.5×30.5mm
Weight: 9.3g
Package Included:
1x Kakute F7 Flight Controller
1x Atlalt HV V2 5.8G FPV Transmitter
1x 80mm SMA–MMCX Cable
1x 150mm 4pin JST GH wire
1x Tekko32 F3 Metal 4in1 ESC
1x 470uF 35V Electrolytic Capacitor
1x 8pin to 8pin 1mm pitch 65mm Cable
1x 8pin to 8pin 1mm pitch 25mm Cable
