Description
Holybro Kakute F7 AIO Flight Controller OSD PDB+Atlatl HV V2 5.8G FPV Transmitter for RC Drone
Specification:
Kakute F7 flight controller:
Click For Kakute F7 Manual
• IMU: MPU6000 (SPI)
• Barometer: BMP280
• Current Sensor: Approximately 130 amps maximum measurable value
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 6 hardware UARTS (UART1,2,3,4,6,7)
• All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on
any UART without “uninvert hack”.
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not
supported.
• TF card for Blackbox logging
• Dimensions: 35x41x7mm (includes foam-mounted gyro board in height)
• Mounting Holes: Standard 30.5mm square to center of holes
• Weight: 8g
Features:
• Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video
transmitter channel and power level, all using your transmitter sticks and goggles.
• Soft-mounting built in. The IMU (“gyro”) chip on this board is mounted on vibration-isolating
foam. This means that there is no need to soft-mount the board itself.
• High-performance / low-noise / high sensitivity IMU. MPU6000 with 6-axis gyro and
accelerometer.
• Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with
external GPS/magnetometer units.
• Dedicated bootloader button for easy firmware flashing.
• Low-profile design fits into even very compact frames.
• Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on “B+” pad
only).
• Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the
Kakute F7 monitors voltage directly from the power supply.
• Filtered voltage output for clean, noise-free video. On-board regulators output 5v at up to 2
amps and 3.3v at up to 200 mA to power peripherals such as receiver, video transmitter, FPV
camera, or LED strip.
• Supports BLHeli pass-through for easy ESC upgrade and configuration.

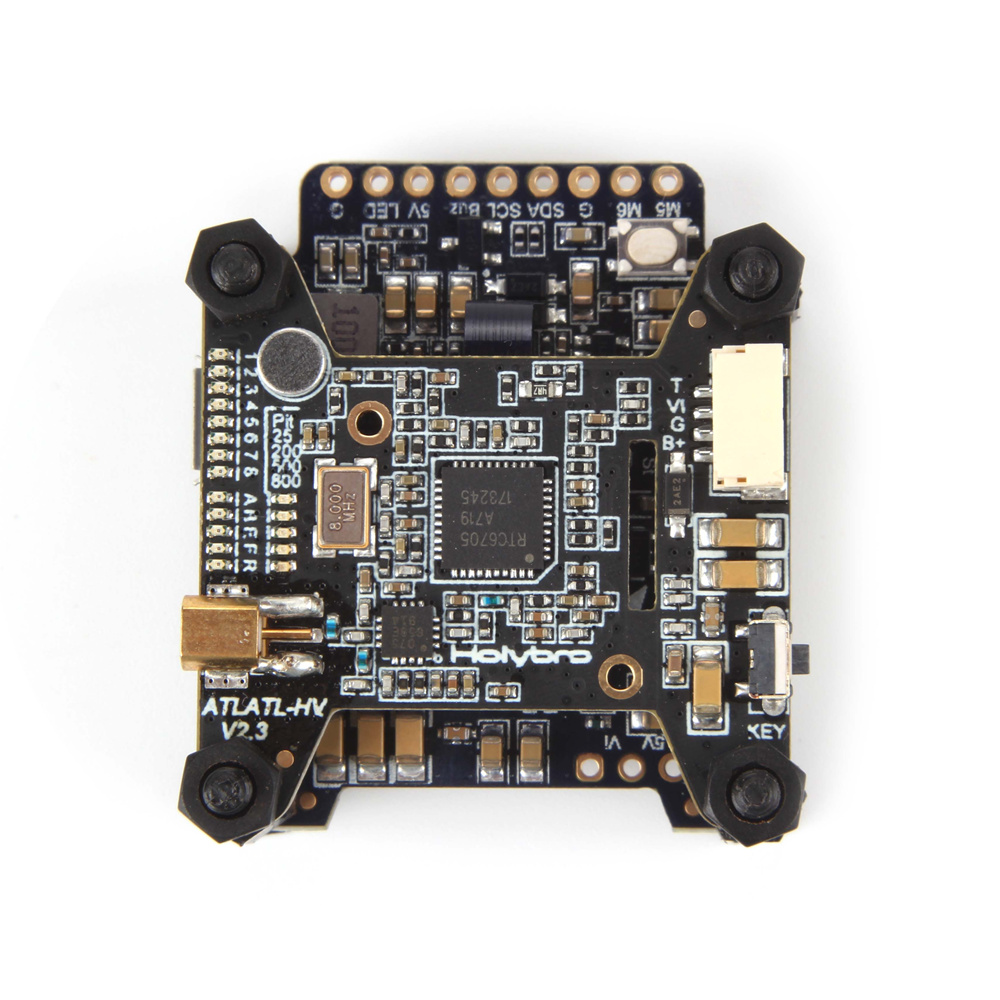

Atlatl HV V2:
Click For Atlatl HV V2 Manual
Features:Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
• Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
• SmartAudio input allows remote control by the flight controller. Change channel, transmit
power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
• All parameters are controllable via push-button on the side of the unit, for cases where
SmartAudio is not used.
• MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick
antenna changes. No more ripped-off UFL connectors.
• LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by
glancing at the quad.
• Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch
to 800 mW for freestyle.
• 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots
out of the air.
• Built in microphone, so you can listen to your motors while you fly, no matter how far away you
fly.
• Standard 36mm form factor allows you to mount the Atlatl directly on your flight controller
stack
Package included:

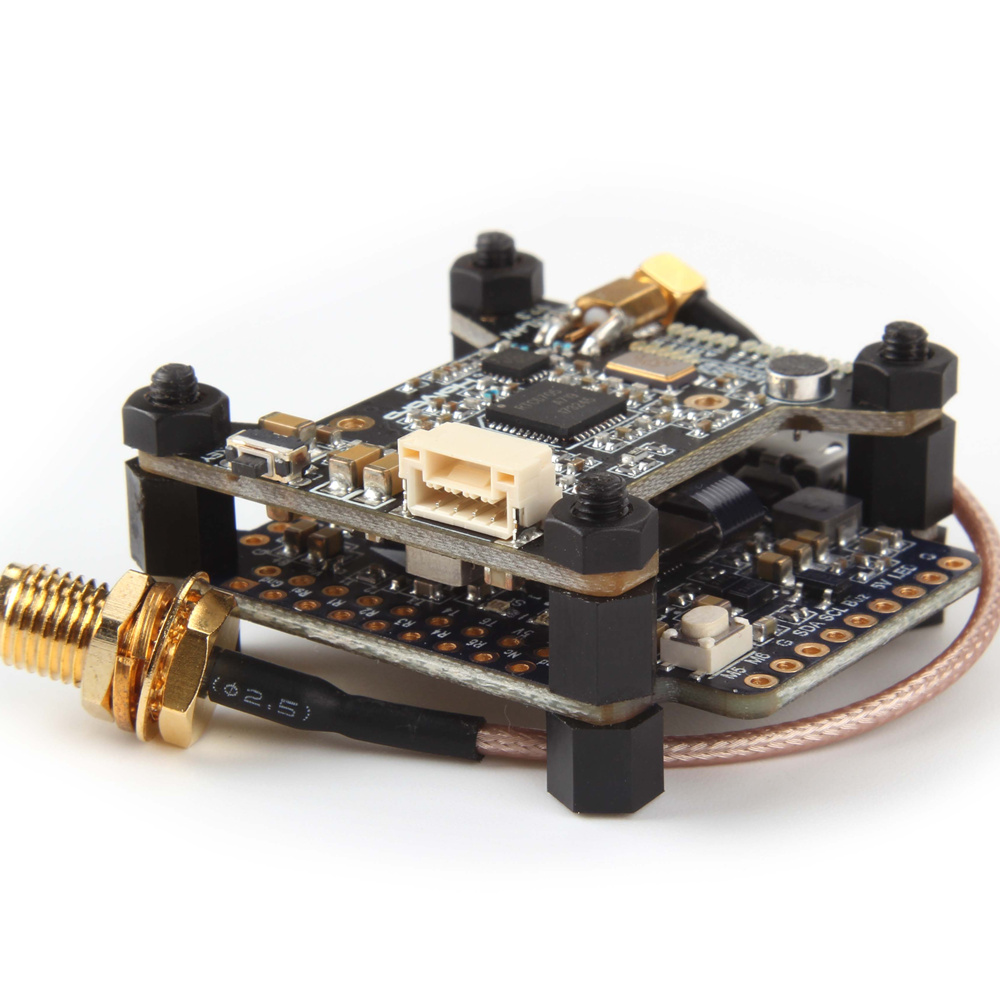

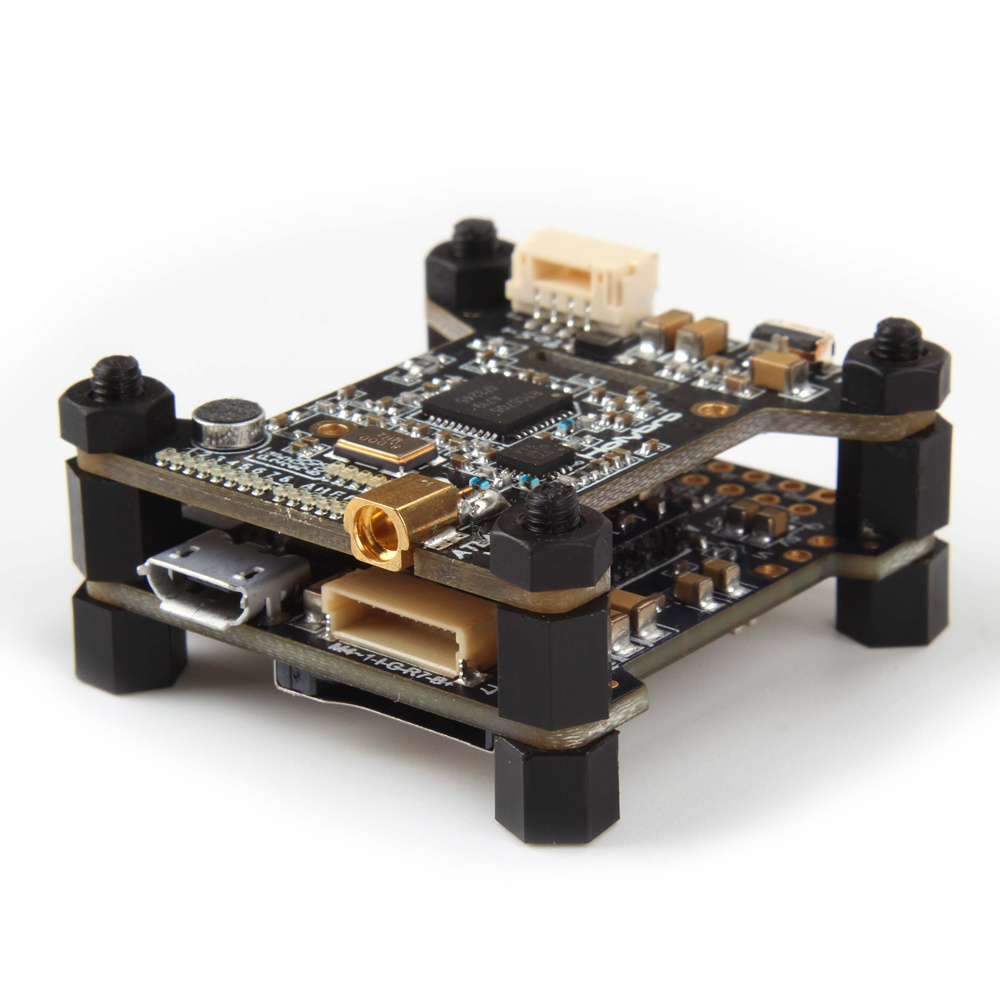

1x Kakute f7 AIO +Atlatl V2 stack
1x 80mm SMA–MMCX Cable
1x 150mm 4pin JST GH wire
