HolyBro 3DR Pixhawk Mini Autopilot & Micro M8N GPS Built-in Compass & PDB Board for RC Drone

Introdution:

The 3DR Pixhawk Mini autopilot is a next-generation evolution of the Pixhawk. It is about 1/3rd the size of the original Pixhawk
and has more powerful processors and sensors.
The Pixhawk Mini is based on the PX4 open-hardware project and has been optimized for the PX4 flight stack.

Specification:
Brand Name: HolyBro
Item Name: 3DR Pixhawk Mini Autopilot & Micro M8N GPS Built-in Compass & PDB Board
Main Processor:
STM32F427 Rev 3
IO Processor: STM32F103

Accel/ Gyro/ Mag: MPU9250
Accel/ Gyro: ICM20608
Barometer:  MS5611

Power Module Output: 4.1-5.5V
Max Input Voltage: 45V (10S LiPo)
Max Current Sensing: 90A
USB Power Input: 4.1-5.5V
Servo Rail Input: 0-10V

Dimensions: 38x43x12mm
Weight: 15.8g

Interfaces:
– 1 x UART Serial Port (for GPS)
– Spektrum DSM/ DSM2/ DSM-X Satellite Compatible RC input
– Futaba SBUS Compatible RC input
– PPM Sum Signal RC Input

– I2C (for digital sensors)
– CAN (for digital motor control with compatible controllers)
– ADC (for analog sensors)
– Micro USB Port

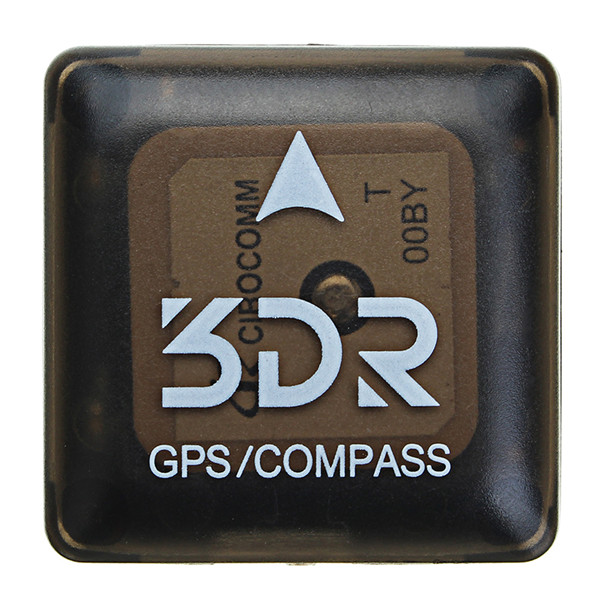

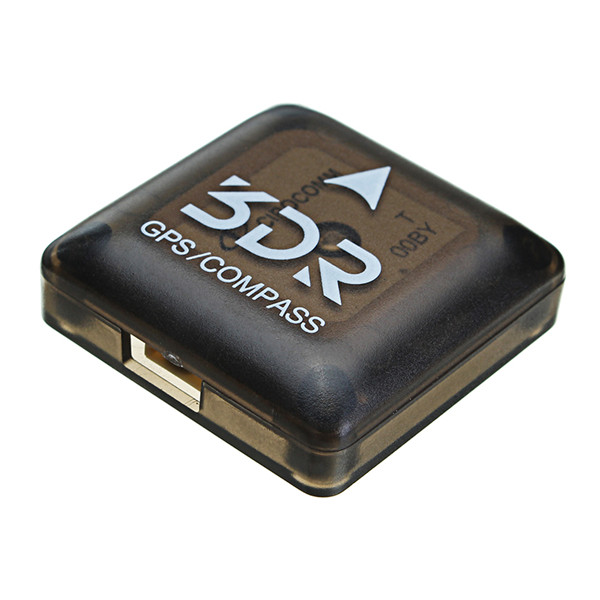

GPS Module (Built-in Compass HMC5983):

– Based on the M8N,
– Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
– Industry leading –167 dBm navigation sensitivity
– Security and integrity protection
– Supports all satellite augmentation systems
– Advanced jamming and spoofing detection
– Product variants to meet performance and cost requirements

Size: 37x37x12mm
Weight: 22.4g

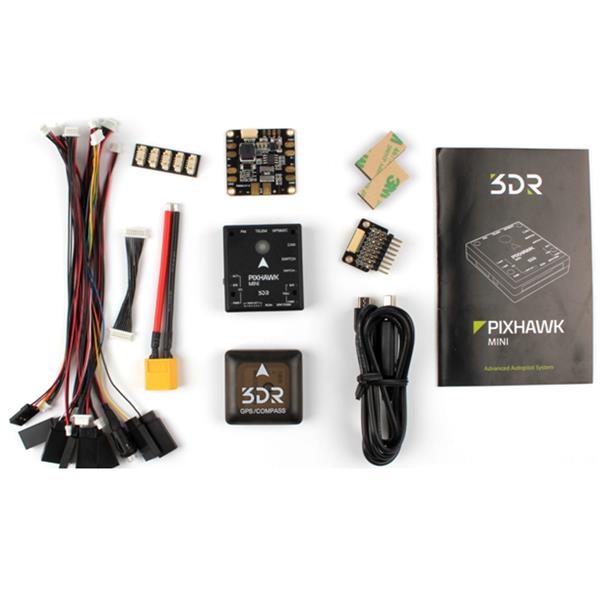

Pacakage Included:
1x 3DR Pixhawk Mini
1x GPS Module
1x PDB Board
1x bag of cables

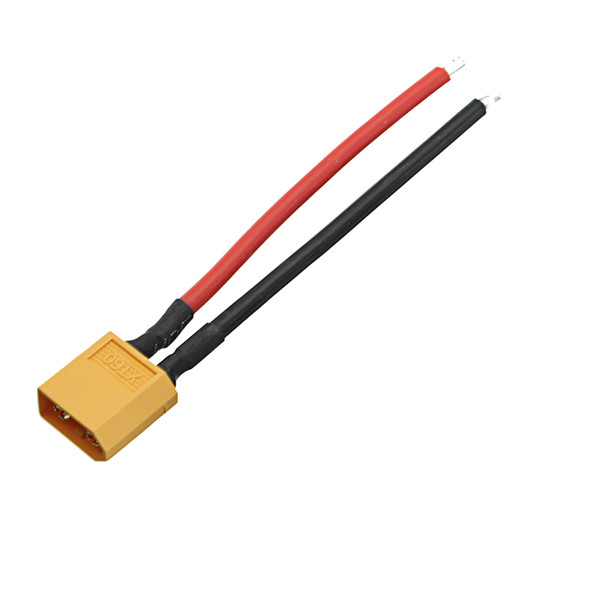

1x XT60 Connector

,,,,,,,,
