Description
Description:

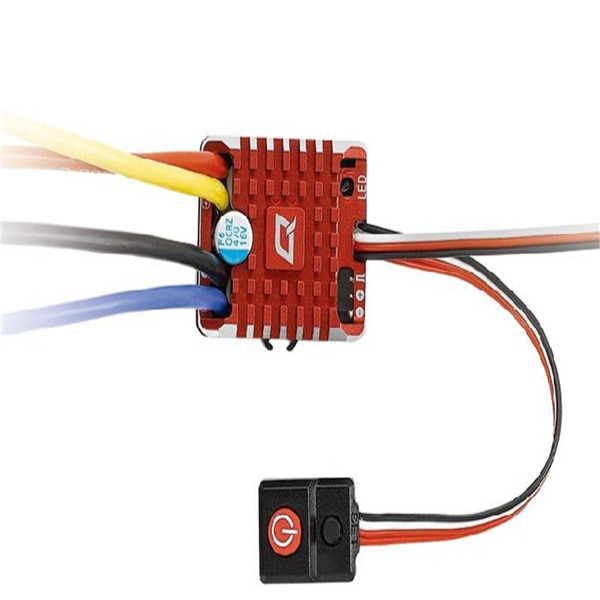

Item Name:Hobbywing QuicRun 1:10 1/8 WP Crawler ESC
Size:36.2×31.6×17.0mm
Weight:58.5g (w/Wires)
Features:
-Special Design for 1/10th, 1/8th Crawlers
-Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology
-Applicable to All Weather Conditions
-Excellent Braking Performance
-Super Internal BEC
-15 Programmable Parameters.Separate Programming/Fan Port
-A LED Program Box is Included
Specifications:
-Cont./Peak Current:80A/400A
-Input Voltage:2-3S Lipo/5-9 Cell NiMH
-BEC Output:Switch Mode: 6V/7.4V, 3A
Wires & Connectors:
-Input Wires:Red-14AWG-200mm*1 / Black-14AWG-200mm*1
-Output Wires:Red-14AWG-200mm*1 / Black-14AWG-200mm*1
-Input Connectors:XT60 Connectors
-Output Connecotors:No
(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programing via:
SET Button on ESC:Supported
LED Program Box:Supported
LCD Program Box: Not Supported
WiFi Module:Not Supported
Program Port: Separate Program Port
Applications:
-Motors:Brushed Motor (540/550/775 size motors)
-Vehicles:Brushed Motor (540/550/775 size motors)
-KV Rating/T Count:Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPM<30000, 7.4V Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<20000, 7.4V
