Description
Description:

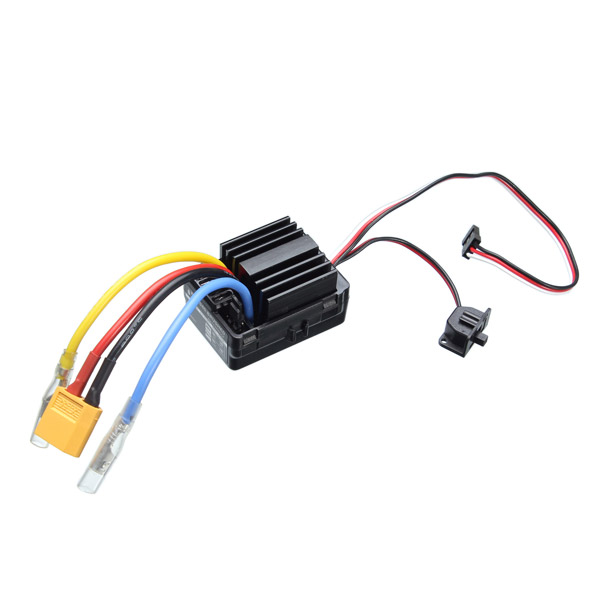

Hobbywing Quicrun 40A Waterproof Brushed ESC Controller for 1/8/10 RC Car
Features:
Water-proof and dust-proof, suitable for all-weather condition races.
Small size with built-in capacitor module.
Three running modes: Fwd/Br, Fwd/Rev/Br and Fwd/Rev, fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
Great current endurance capability.
Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.
Easy to set the ESC parameters with jumpers.
Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.
Specifications:
Part: Speed Controllers ESC
Model: Hobbywing Quicrun 1040 Brushed Waterproof ESC
For Vehicle Type: 1/10Buggy, Car, Truck, Truggy, Tank, Climbing Car
Forward direction: Sustained current/Peak current:60A/360A
Backward direction: Sustained current/Peak current:30A/180A
Support Motor T Number:2S Lipo/6S NIMH:540/550 Size Motor≥12T or RPM less than 30000@7.2V
3S Lipo/9S NIMH:540/550 Size Motor≥18T or RPM less than 20000@7.2V
PEM frequency:1KHz
BEC: 6V/ 3A(Linear regulator model)
Battery Type: 2-3S Lipo(7.4-11.1V)/ 5-9 Cell NIMH(6-10.8V)
Approx. Size: 36.5*32*18mm
Weight: About 40g
Package Includes:
1x Brushed ESC Controller
,
,
,
,
,
