Description
Description:
Brand: Hobbywind

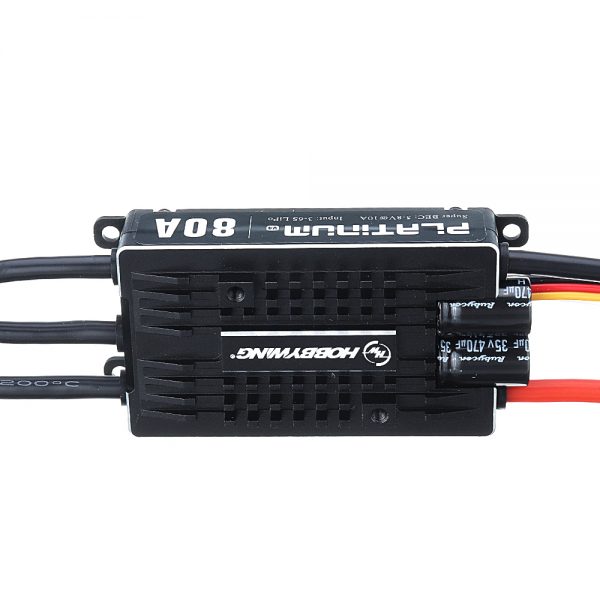

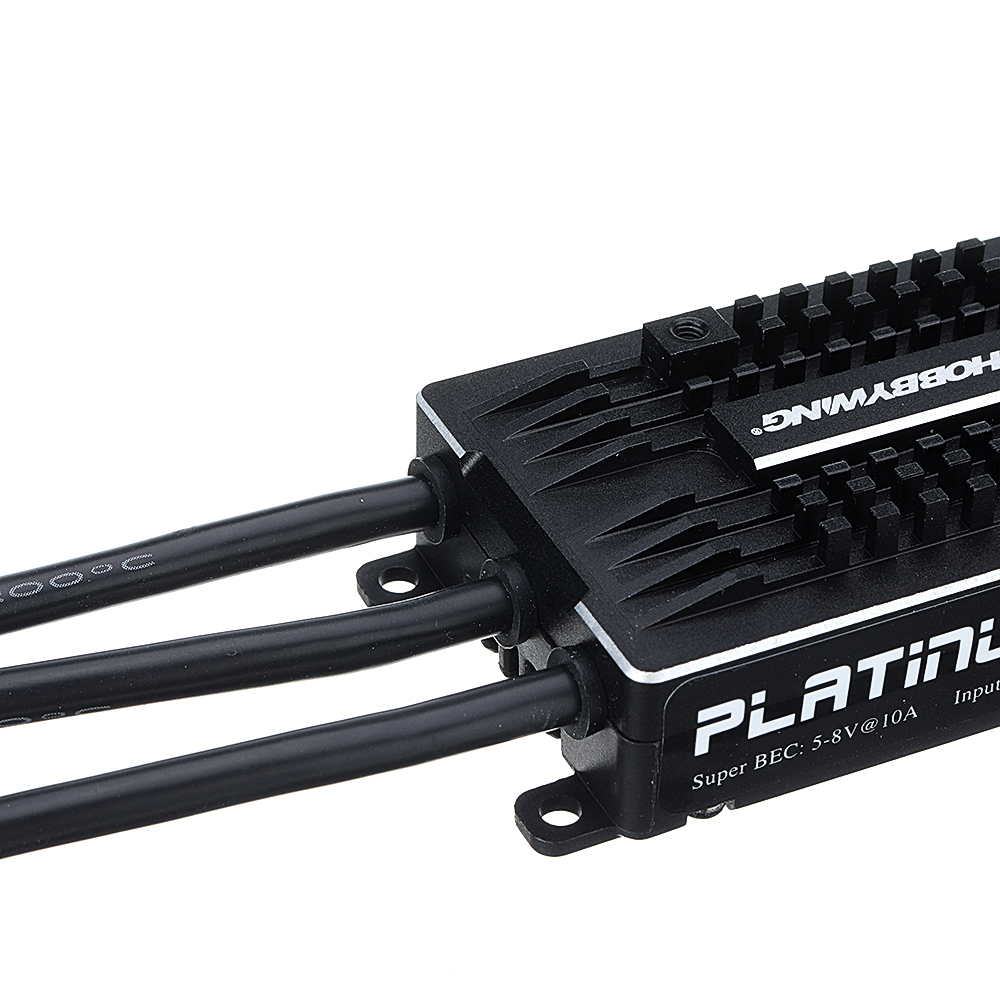

Product: Platinum 80A V4 Pro ESC
Type: Brushless
Cont./Peak Current: 80A/100A
Input Voltage: 3-6S Lipo Battery
BEC Output: Swich Mode 5-8V 7A
Input Wire: Red-12AWG-150MM*1/ Black-12AWG-150MM*1
Output Wire: Black-12AWG-100MM*3
Output Connectors: 4.0mm Cold Connectors(Female)
Application: 450-500 Class RC Helicopter(Main blade: 380-470mm), 70 Class Fix-wind Airplane 3D/EDF(with Diameter≤75mm)
Features:
– Support to connect the LCD setting card to adjust.
– Support flying date record.
– Multipul brake modes .
– Multi-protection: start protection, over current protection,temperature
protection,etc.
manual, click here
Software, click here
Package:

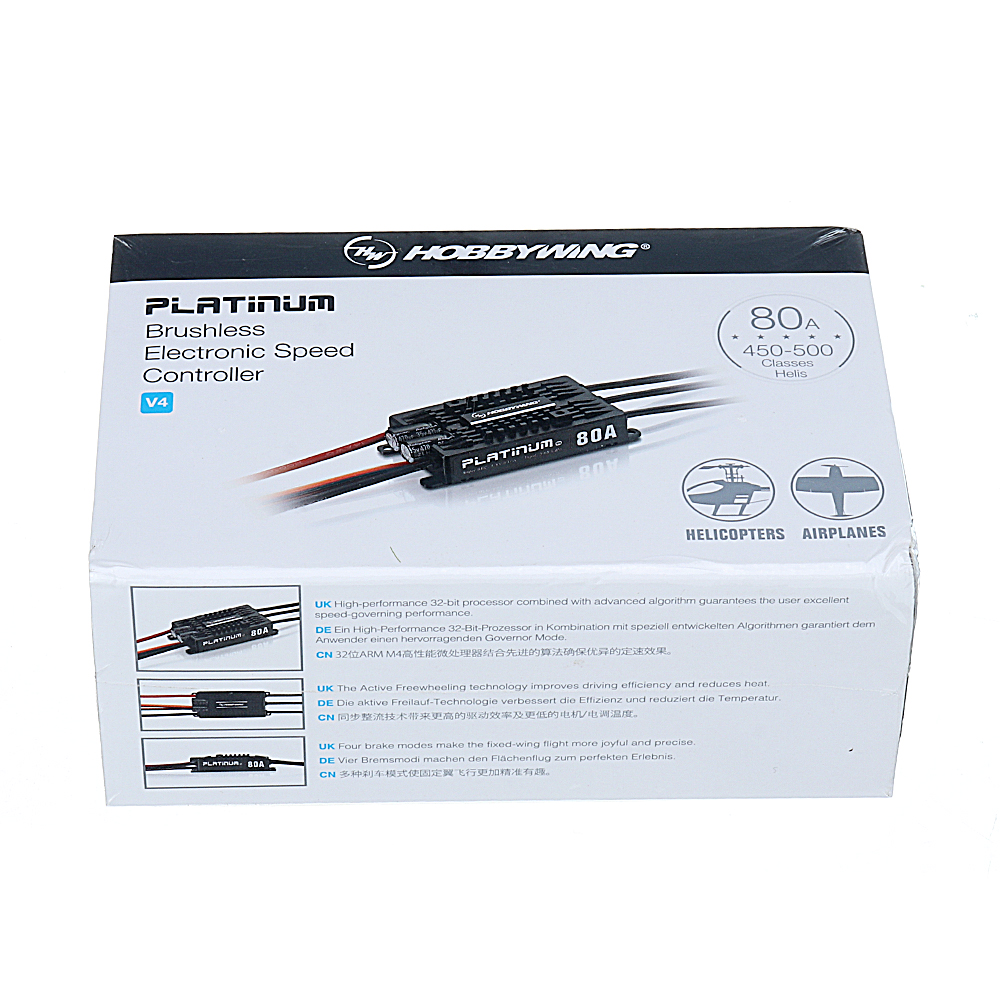

1* Hobbywind Platinum 80A V4 Pro ESC
