Description

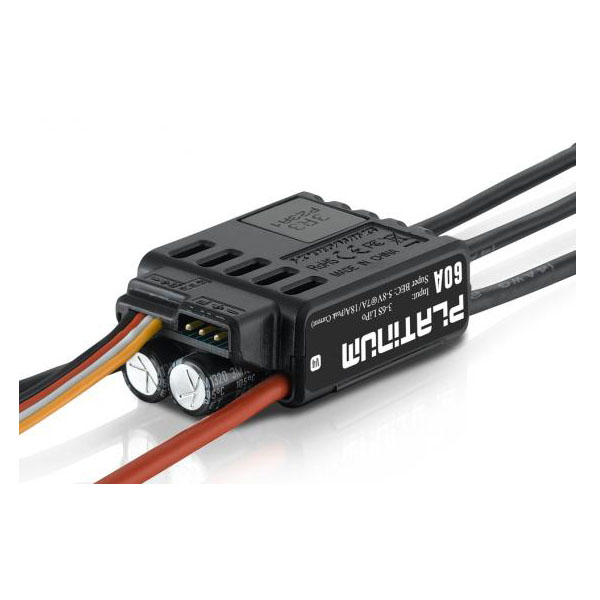

Hobbywing Platinum 60A V4 Brushless ESC For RC Model
Description:
Product Name: Platinum 60A V4
Type: Brushless
Specifications: Cont./Peak Current: 60A/80A
Input: 3-6S Lipo
BEC Output: Switch Mode: 5-8V, 7A
Wires&Connectors: Input Wires: Red-14AWG-100mm*1/Black-14AWG-100MM*1
Output Wires: Black-14AWG-75mm*3
Input Connectors: No
Output Connectors: 3.5mm Gold Connectors(Female)
(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programing via: Trasmitter: Not Supported
ESC Programing via LED Program Card: Not Supported
ESC Programing via LED Program Box: Not Supported
ESC Programing via LCD Program Card: Supported
WIFI Module: Supported
Program Port: Program/Throttle Wire
Firmware: Firmware Upgrade: Supported
Size: 48.0×30.0x15.5mm
Weight: 49g
Application: 450-480 Class Heli(Propeller: 325-326mm)
Manual: Click here
Package Included:
1x Hobbywing 60A V4 ESC
