Description
Description:
Brand:Hobbywing
No:30102601

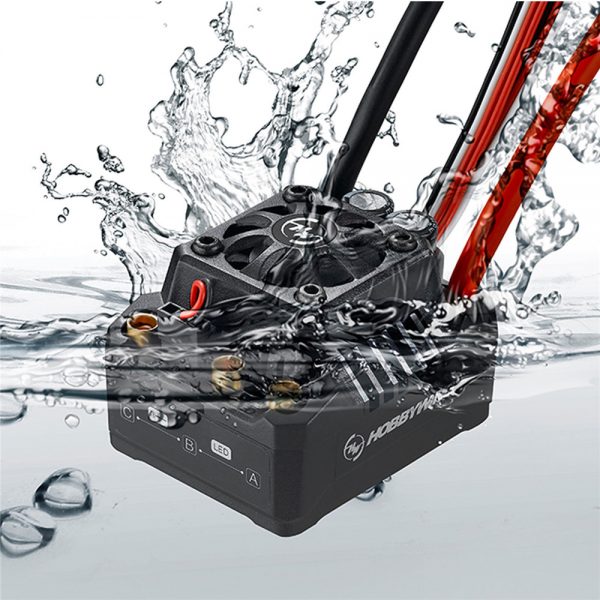

Name:MAX10-SCT 120A ESC
Size:49*39.5*34.7mm
Weight:about 537g,with box
Specification:
Scale:1/10th
Brushless & Sensorless& Waterproof
Continuous current:120A
Instantaneous current:830A
Input:2-4S LiPo/6-12 Cells NiMH
BEC Output: Switch Mode:6V/7.4V /4A
Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
Output Wires: Black-12AWG-200mm*3
Output Connectors: 4.0 Bullet Connectors (Female) (Note: All the wire length above is the original length not the length you see from the outside.)
Fan Size: 25.0×25.0x10.0mm
Fan Voltage Range: 5-7.4V
Fan Powered by: Powered by BEC
Firmware Upgrade: Supported
Applications Motors: SL BL Motors/SD BL Motors(only in SL mode);
Applications Vehicles: 1/10th SCTs / Truck / Monster Truck;
Applicable motor KV rating / T count:2S LiPo: KV≤6000; 3S LiPo: KV≤4000; 4S LiPo: KV≤3000 (36XX series motor)
ESC Programing Supported: SET Button on ESC, LED Program Box, LCD Program Box, WiFi Module
Package included:
1X MAX10-SCT 120A ESC
1X Instrucation Manual
