Name: Hobby Eagle A3 Super 3 A3S3 6 Axis Airplane Gyro Flight Controller Stabilizer
Price: 43.06 AUD
Availability: InStock
Rating: 4.1 (9 reviews)

Description

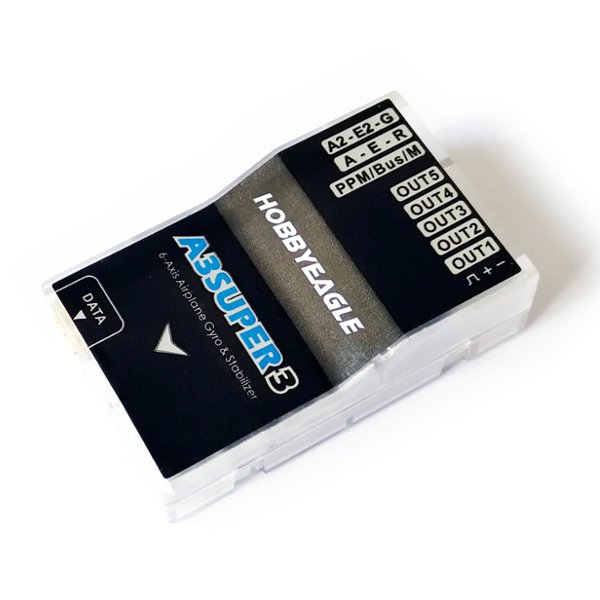

HobbyEagle A3 Super 3 A3S3 6 Axis Airplane Gyro Flight Controller Stabilizer

Use Coupon Code "15HE" to get extra 15% off for this flight controller !

Overview:
A3 Super 3 (hereinafter referred to as A3S3) is a high-performance and functional 6-axis gyro and stabilizer designed for RC airplanes. This gyro can be used with nearly any size and type of R/C airplanes and it will make the flying even easier and comfortable.

Specification:
Brand Name: HobbyEagle
Item Name: A3 Super 3
Version(optional): Standard Version, Full Set Version (with program card)

Main Controller: 32-bit MCU

Sensors: High-precision 3-axis gyroscope and 3-axis accelerometer

Gyroscope Scale Range: ±2000dps

Accelerometer Scale Range: ±4g

PWM: 920uS ~ 2120uS with 1520uS center length / 50~333Hz

Input Voltage: 4.8V – 8.4V

Operating Temperature: -10℃ – 50℃

Size: 43×27×14mm

Weight: 10g (excluding wires)

Features:

32-bit MCU, high-precision 6-axis MEMS sensor, improved hardware platform and new firmware solution provide more reliable performance.

Supports 6 flight modes, including Gyro-Off mode, Normal mode, Trainer mode, Atti-Lock mode, Auto-Level mode and Auto-Hover mode.

Supports 6-position flight mode switching.

Supports 7 wing types, dual aileron, dual elevator, delta-wing and v-tail supported.

External LED module, integrated with data interface, flat or upright various mounting orientations supported.

Compatible with most standard receivers, standard PPM single-line receivers and Futaba’s S.Bus and S.Bus 2 receivers.

Sub trim and travel limit settings for servos, separate stick Rate and EXP settings for each mode.

Pass-through function for [A2] and [E2] channels.

Customizable hardware and software low pass filters for gyroscope and accelerometer, enable you to optimize the performance of the gyro as you wish.

Quick setup supported by using the programming card while flying outside.

Note:
The Standard Version does not include the program card.
Please select the version you need.

Setup Software V1.0, http://www.hobbyeagle.com/download/A3S3_Config_Utility_v1.0.msi

USB Driver, http://www.hobbyeagle.com/download/CP210x_VCP_Win_XP_S2K3_Vista_7.exe

Online Firmware Upgrade Tool V1.0, http://www.hobbyeagle.com/download/Firmware_Update_Utility.msi

English Manual, Click Here

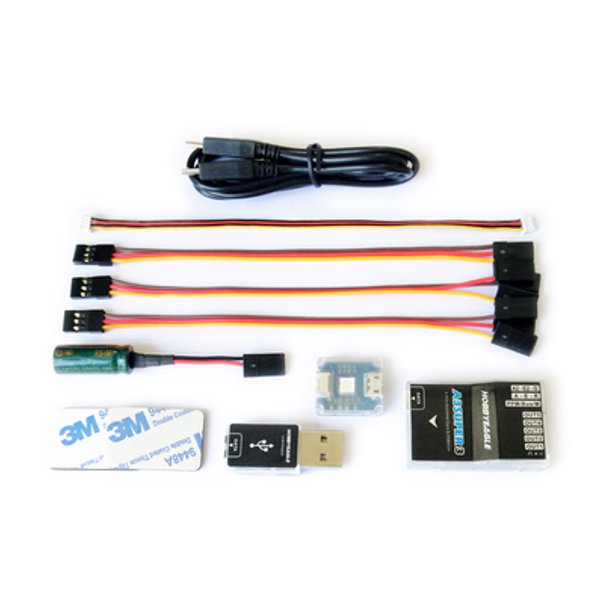

Package Included:
1x HobbyEagle A3 Super 3 6 Axis Airplane Gyro Flight Controller Stabilizer

,,,,,,
