Description

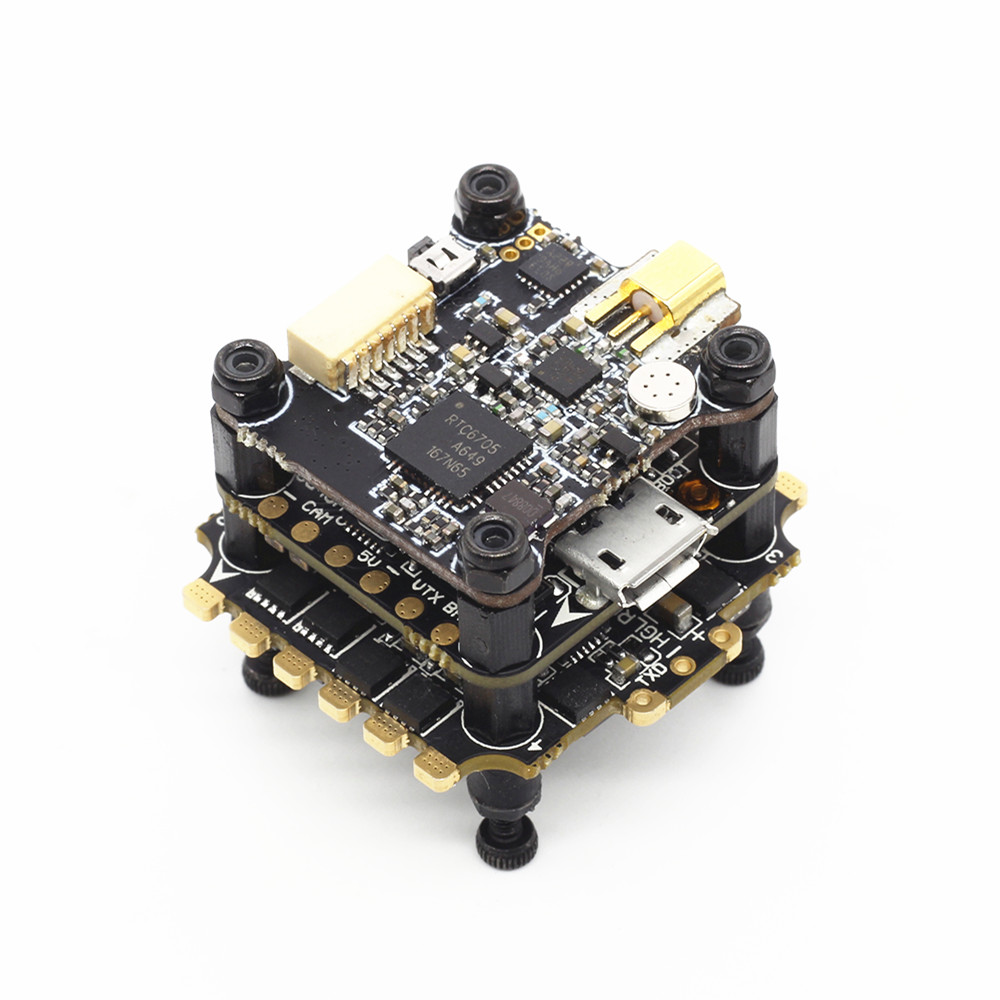

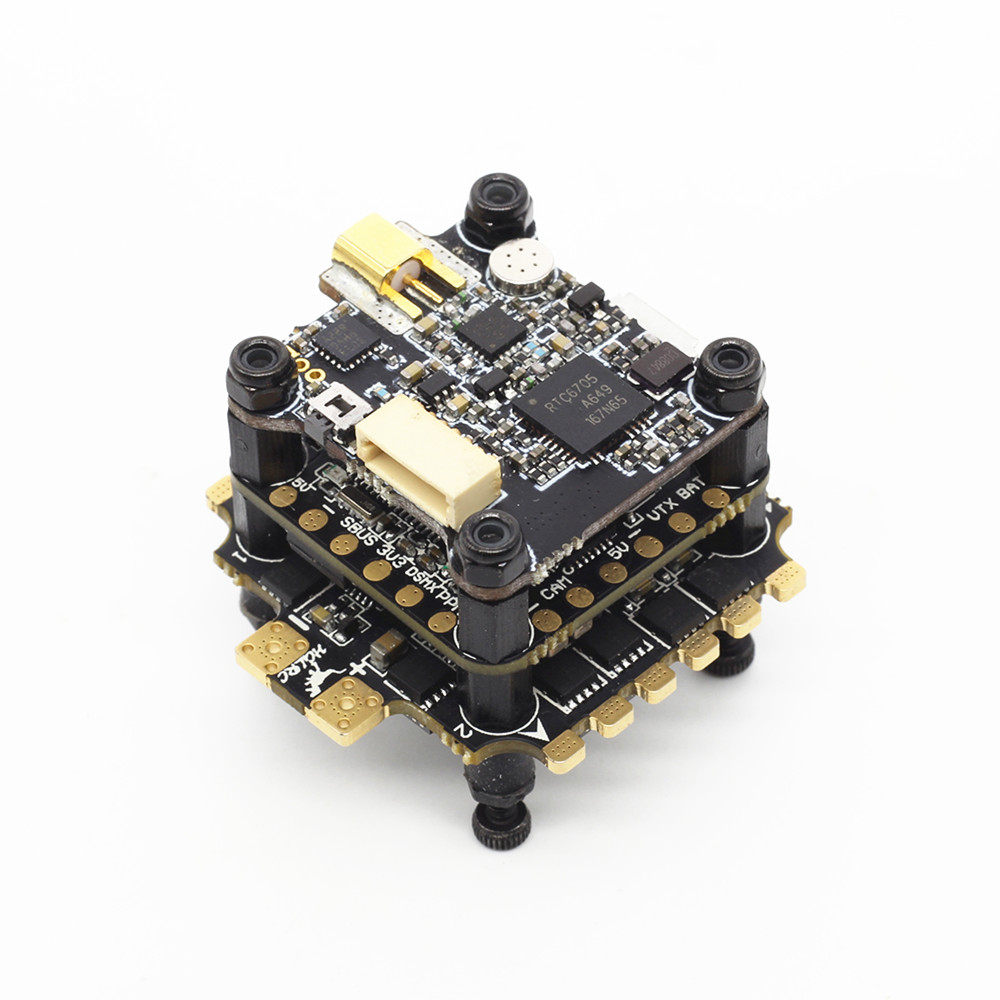

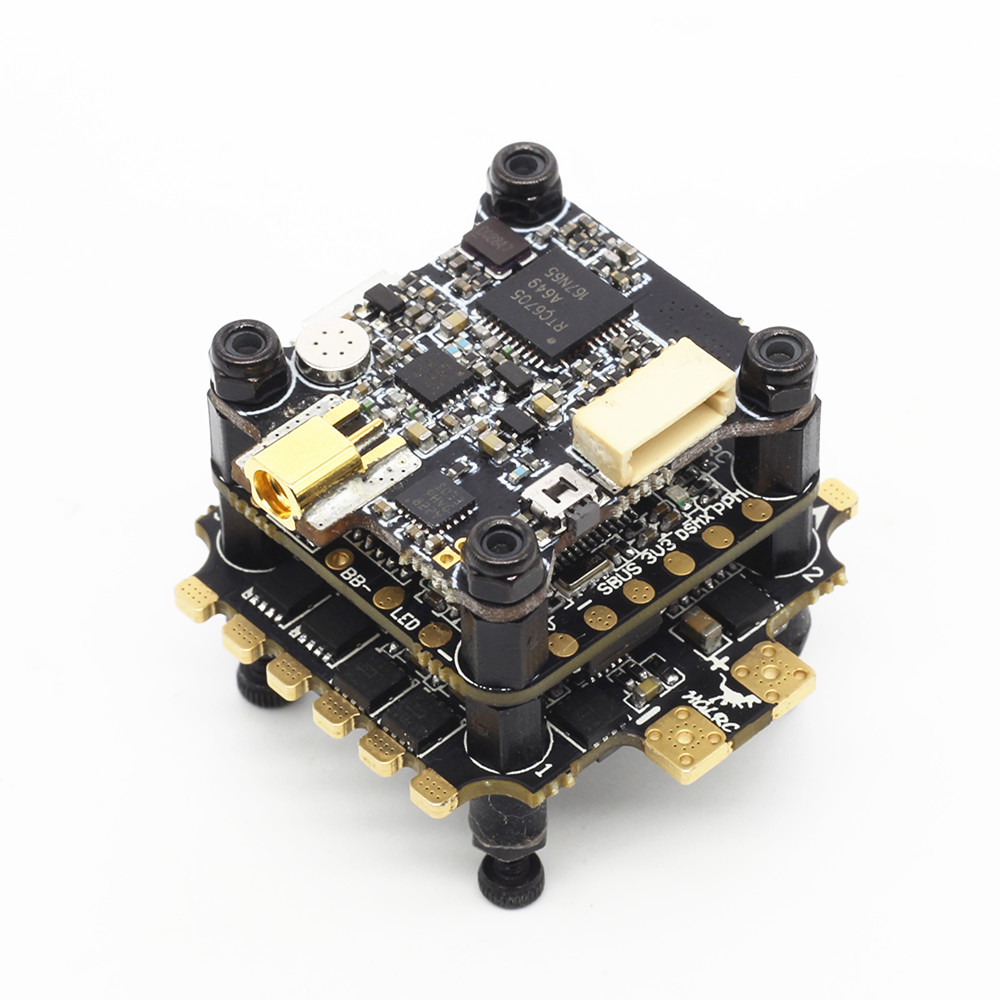

HGLRC XJB F440-Forward VTX Mini Stack F4 V2 Flight Controller & 40A BL_S ESC & 25/100/200/350mW VTX
Specificaiton:
Brand Name: HGLRC
Model: XJB F440-Forward VTX Mini
Item Name: 20x20mm F4 V2 FC & 40A ESC & VTX Stack

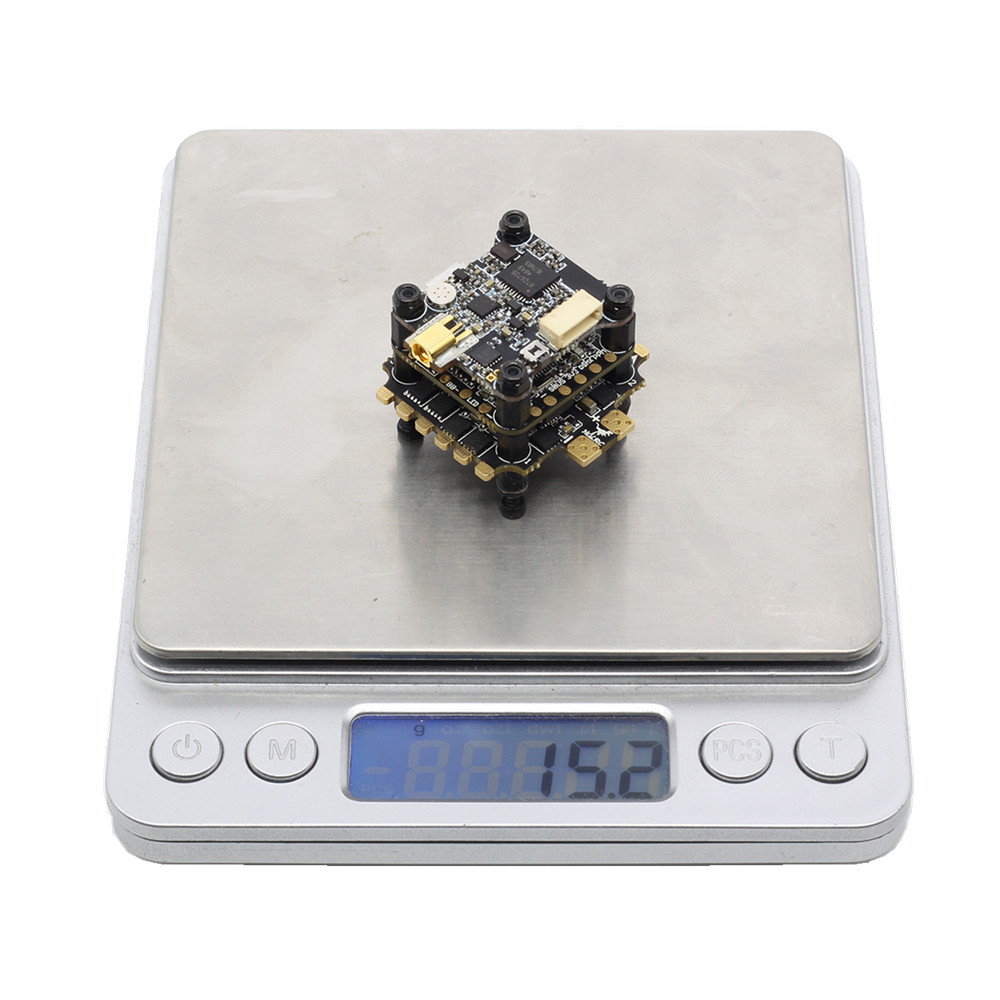

Weight: 15.2g
Application: for 65mm-250mm Frame Kit
F4 V2 Flight Control Board (D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 20mm mounting holes (M2)
Support SBUS/PPM/DSMX receiver
Weight:3.7g
40A BLHeli_32 3-4S 4in1 ESC
Input Voltage: 3-4S Lipo battery
Constant Current: 40A
Peak Current: 50A
BEC Ouput: NO
Firmware:32bit ESC with BLHELI_32 firmware
Size: 27x27mm (main board)
32x34mm ( including pad)
Mounting Hole: 20x20mm, M2
Weight: 5.2g
CPU:STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol: DSHOT1200/600/300/150/Oneshot125/42,MultiShot Damped mode
Forward VTX Mini FPV Transmitter
Output Power: PIT/25mW/100mW/200mW/350mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 7-26V, BEC 5V-1A,250mA—-350mW
Video System: NTSC/PAL
Antenna: MMCX
Size: 24*27mm(L*W),Hole:20*20mm
Weight: 2.7g
Frequency and power control methods:
1.Button frequency control:
Short press once to change channel number CH (CH1-CH8) ;
Short press once to change channel number CH (CH1-CH8) ;
Long press for 2 seconds and then short press to change frequency group FR (A-B-E-F-R-L)
2.Button power control:
Long press button for 6 seconds and then short press button to change power level PIT/25mw/100mw/200mw/ 350mw
Long press button for 6 seconds and then short press button to change power level PIT/25mw/100mw/200mw/ 350mw
Package Included:
1x HGLRC F4V2 Flight Controller
1x HGLRC 40A 3-4S BLHeli_324 in 1 ESC
1x HGLRC Forward VTX Mini
1x MMCX to SMA Adapter Cable
1x bag of Screws
1x MMCX to SMA Adapter Cable
1x bag of Screws
