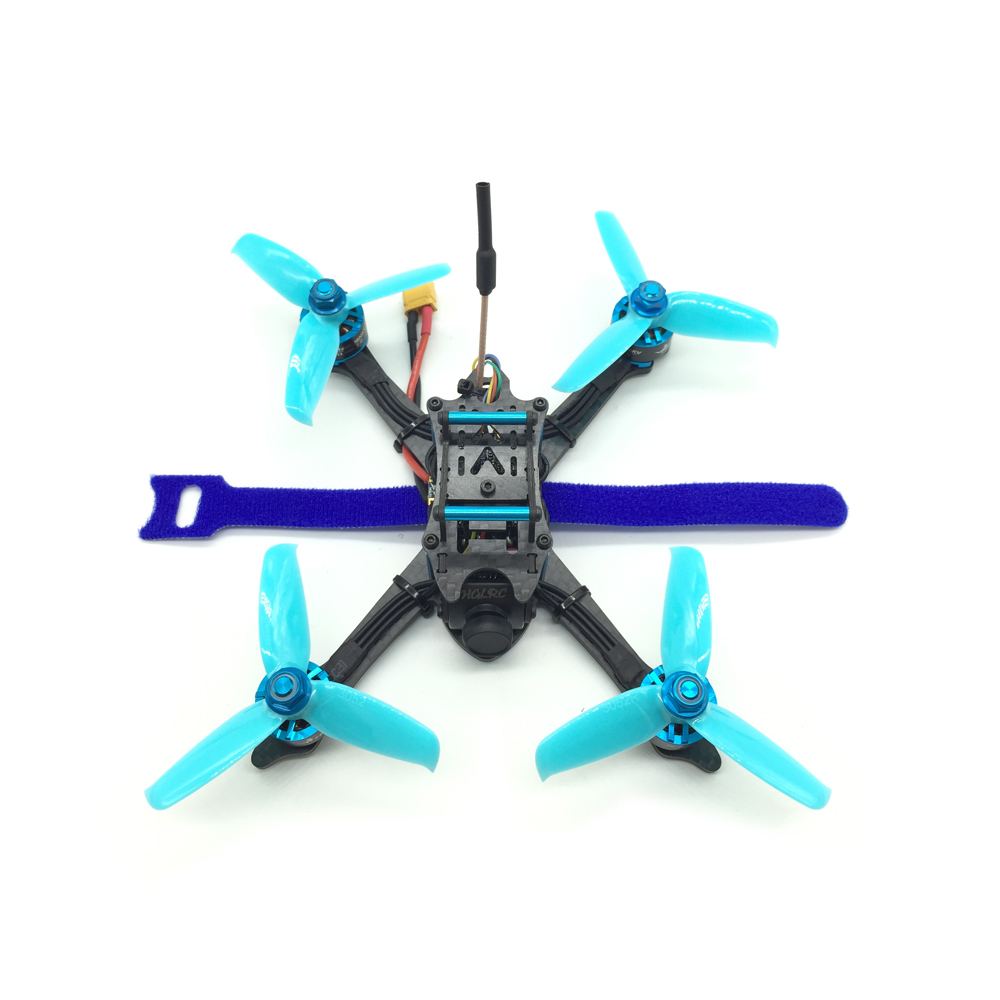

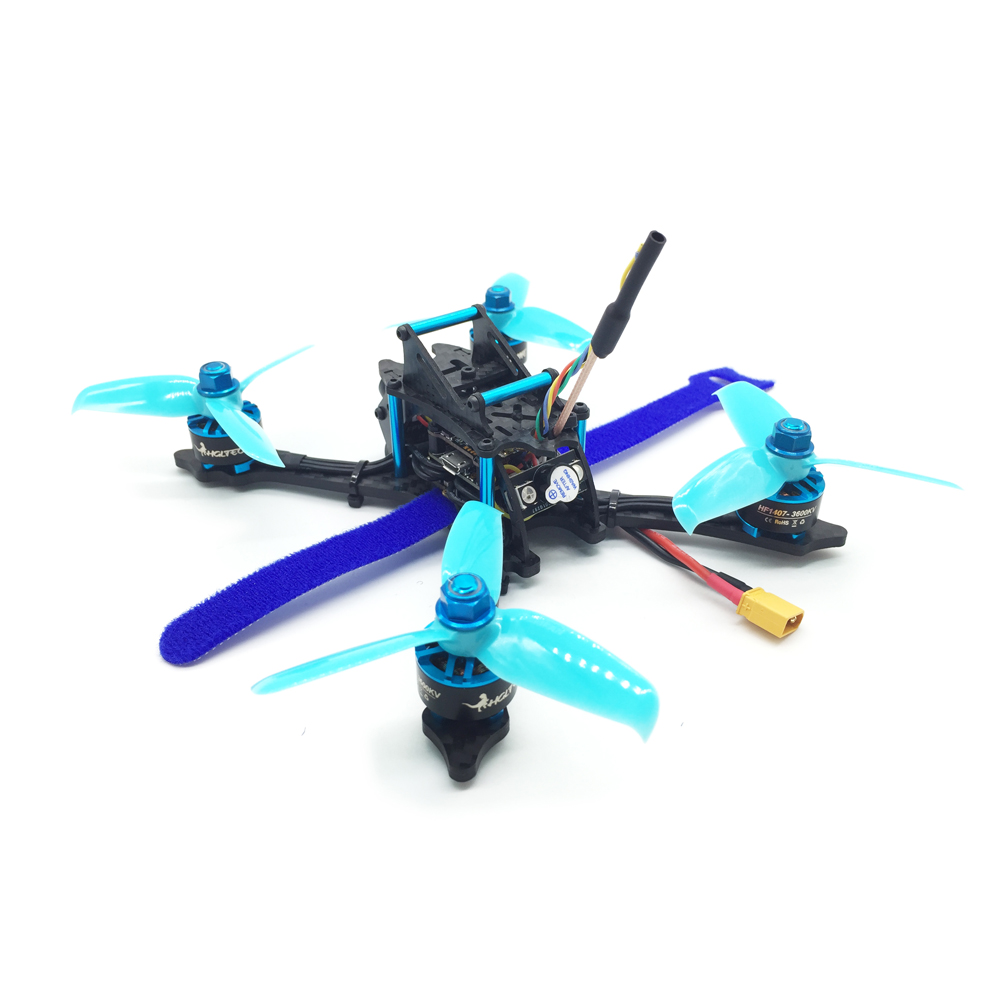

HGLRC XJB-145MM FPV Racing Drone PNP Omnibus F4 28A 2-4S Blheli_S ESC 25/100/200/350mW Switchable VTX

$149.00

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

HGLRC XJB-145MM FPV Racing Drone PNP Omnibus F4 28A 2-4S Blheli_S ESC 25/100/200/350mW Switchable VTX

Specification:
Brand name: HGLRC
Item name: XJB-145MM FPV Racing Drone PNP
Model: VX145
Wheelbase: 145mm
Arm Plate Thickness: 3mm
Bottom Plate Thickness: 3mm
Side Plate Thickness: 1.5mm
Material: Carbon Fiber
Take off weight: 180g
Weight: 29g

Micro F4 Flight Control Board ( D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 20mm mounting holes (M2)
Weight:2.3g
Support Subs/PPM/DSMX receiver


28A 2-4S Blheli_S BB2 4 in 1 ESC:
Input Voltage: 2-4S Lipo battery
Constant Current: 28A
Peak Current: 35A
BEC Ouput: NO
Firmware: BLheli_S 16.5
Size: 27x27mm (main board)
        31x31mm ( including pad)
Installing Hole: 20x20mm, M2
Weight: 4.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Firmware: Betaflight 16.5
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse


HGLRC Forward VTX Mini
Output Power: PIT/25mW/100mW/200mW/350mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 7-26V, BEC 5V-1A,250mA—-350mW
Video System: NTSC/PAL
Antenna: MMCX
Size: 24*27mm(L*W),Hole:20*20mm
Weight: 2.7g

AURORA  FPV Camera
Lmage Sensor: 1/3 Mg SUPER HAD II CCD
Horizotal Resoulution: D1960H 2000TVL
Lens: 2.1mm
Signal System: PAL/NTSC (OSD Internal adjustable)
S/N Ratio:>60Db(AGC OFF)
Electronic Shutter Speed: PAL: 1/50-100.000, NTSC: 1/60-100,000
Auto Gain Control (AGC): LOW/MIDDLE/HIGH
Back light compensation (BLC): YES
Min lllumination: 0.001Lux/1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B
Power: DC 5V-30V
Net weight: 5.g
Dimensions: 19mm*19mm*19mm

Model: HGLRC HF1407-3600KV

Package Included:
1x HGLRC 145mm Carbon Fiber Frame Kit
1x HGLRC  F4 AIO OSD BEC Flight Control Board
1x HGLRC  28A Blheli_S 4 In 1 ESC
1x HGLRC Forward VTX Mini
1x HGLRC AURORA  FPV Camera
4x HGLRC HF1407-3600KV
