Description

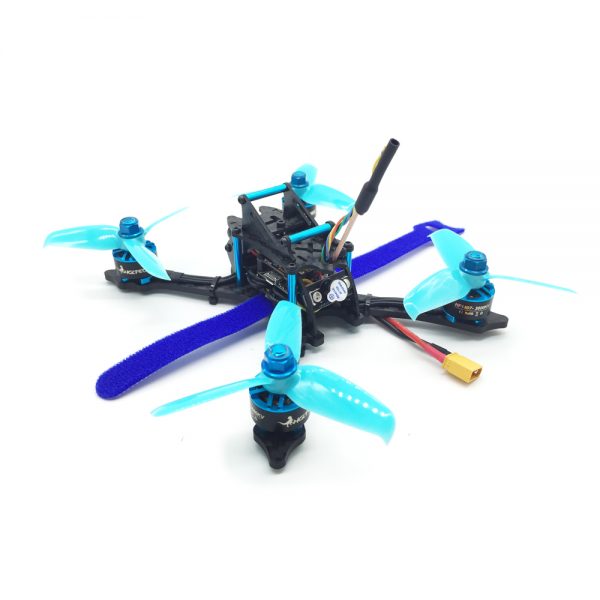

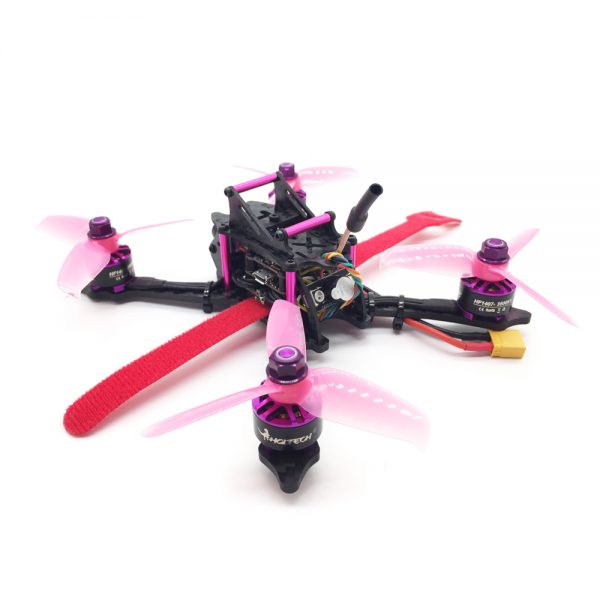

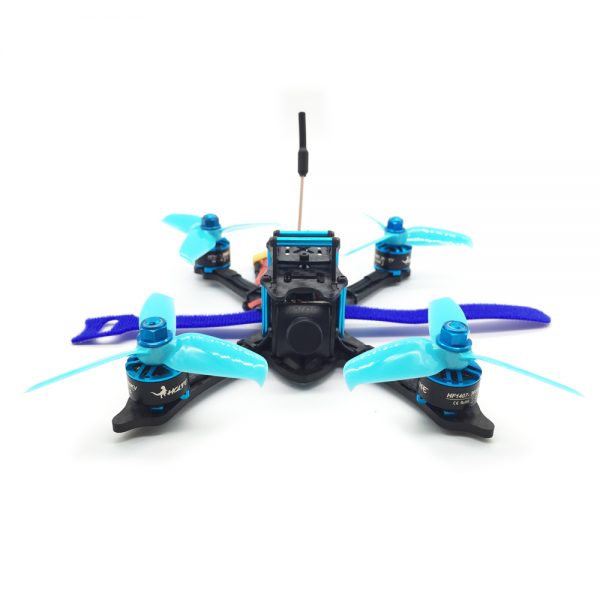

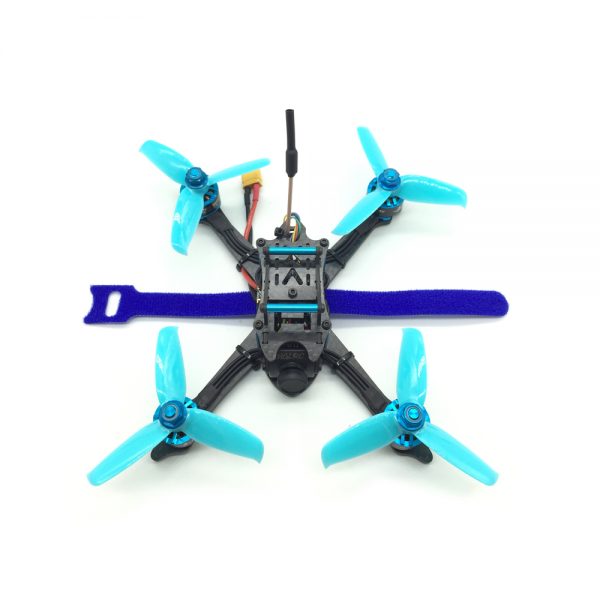

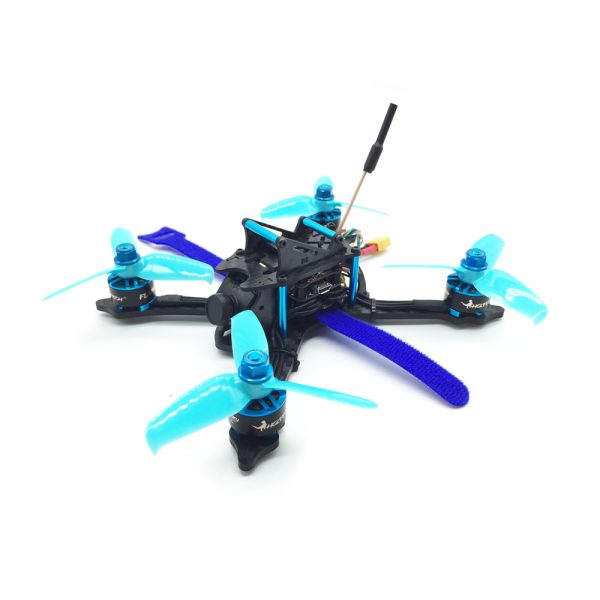

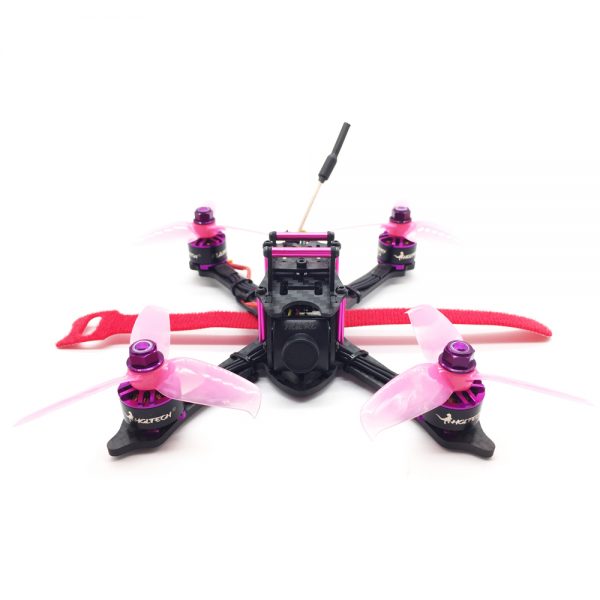

HGLRC XJB-145MM FPV Racing Drone BNF Compatible FrSky XM+ Receiver Omnibus F4 28A 2-4S Blheli_S ESC
Specification:
Brand Name: HGLRC
Item Name: 145mm Carbon Fiber Frame Kit
Model: VX145
Wheelbase: 145mm
Arm Plate Thickness: 3mm
Bottom Plate Thickness: 3mm
Side Plate Thickness: 1.5mm
Material: Carbon Fiber
Weight: 29g
Micro F4 V2 Flight Control Board ( D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 20mm mounting holes (M2)
Weight:2.3g
Support Subs/PPM/DSMX receiver
28A 2-4S Blheli_S BB2 4 in 1 ESC:
Input Voltage: 2-4S Lipo battery
Constant Current: 28A
Peak Current: 35A
BEC Ouput: NO
Firmware: BLheli_S 16.7
Size: 27x27mm (main board)
31x31mm ( including pad)
Installing Hole: 20x20mm, M2
Weight: 4.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Firmware: Betaflight 16.5
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse
HGLRC Forward VTX Mini
Output Power: PIT/25mW/100mW/200mW/350mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 7-26V, BEC 5V-1A,250mA—-350mW
Video System: NTSC/PAL
Antenna: MMCX
Size: 24*27mm(L*W),Hole:20*20mm
Weight: 2.7g
HGLRC AURORA FPV Camera
Lmage Sensor: 1/3 Mg SUPER HAD II CCD
Horizotal Resoulution: D1960H 2000TVL
Lens: 2.1mm
Signal System: PAL/NTSC (OSD Internal adjustable)
S/N Ratio:>60Db(AGC OFF)
Electronic Shutter Speed: PAL: 1/50-100.000, NTSC: 1/60-100,000
Auto Gain Control (AGC): LOW/MIDDLE/HIGH
Back light compensation (BLC): YES
Min lllumination: 0.001Lux/1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B
Power: DC 5V-30V
Net weight: 5.g
Dimensions: 19mm*19mm*19mm
XM+ Receiver
Number of Channels: Up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC)
Operating Voltage Range: 3.7~10V
Operating Current: 30mA @5V
Operating Range: Full range
With RSSI output on board: Analog 0~3.3V
Firmware Upgradeable
Version: International Version
Compatibility: FrSky D16 mode
Dimension: 21.5*12*3.5mm(L x W x H)
Weight: 1.6g
Model: HGLRC HF1407-3600KV
Package Included:
1x HGLRC 145mm Carbon Fiber Frame Kit
1x HGLRC F4 AIO OSD BEC Flight Control Board
1x HGLRC 28A Blheli_S 4 In 1 ESC
1x HGLRC Forward VTX Mini
1x HGLRC AURORA FPV Camera
6x Gemfan 3052 Propellers
4x HGLRC HF1407-3600KV
1x compatible FRSKY XM+ Receiver
