Description

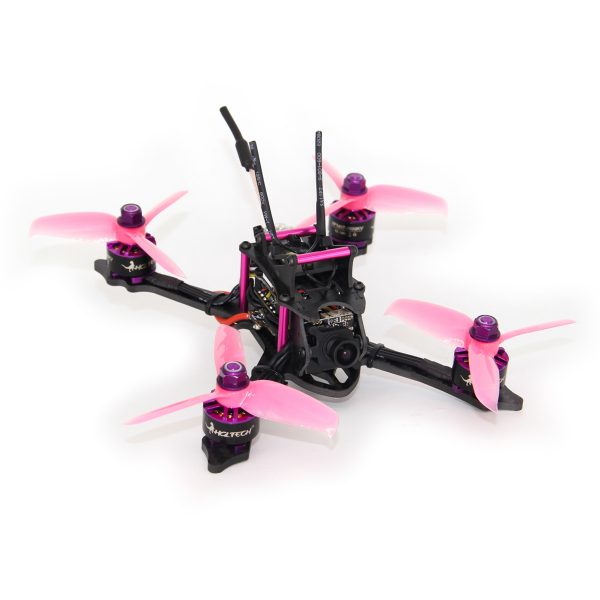

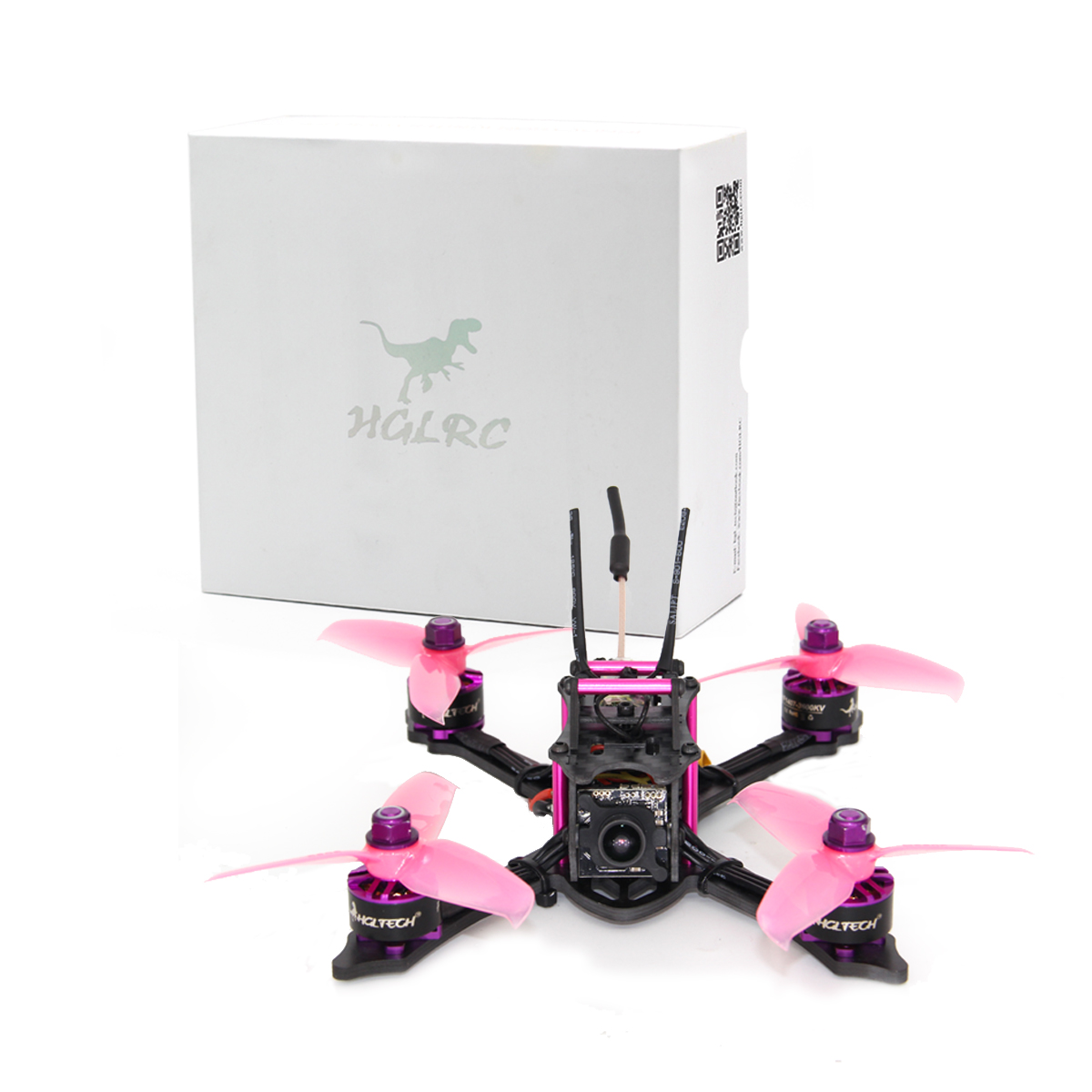

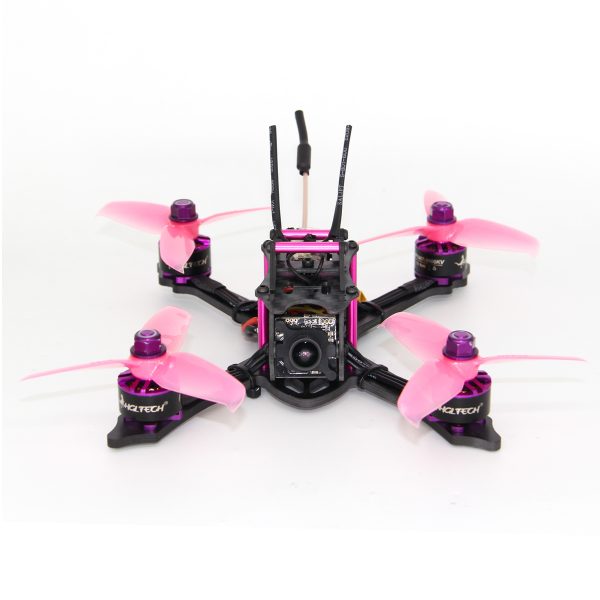

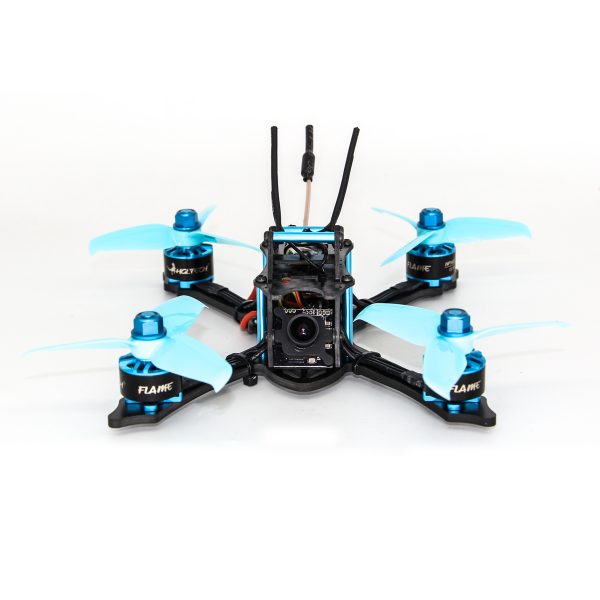

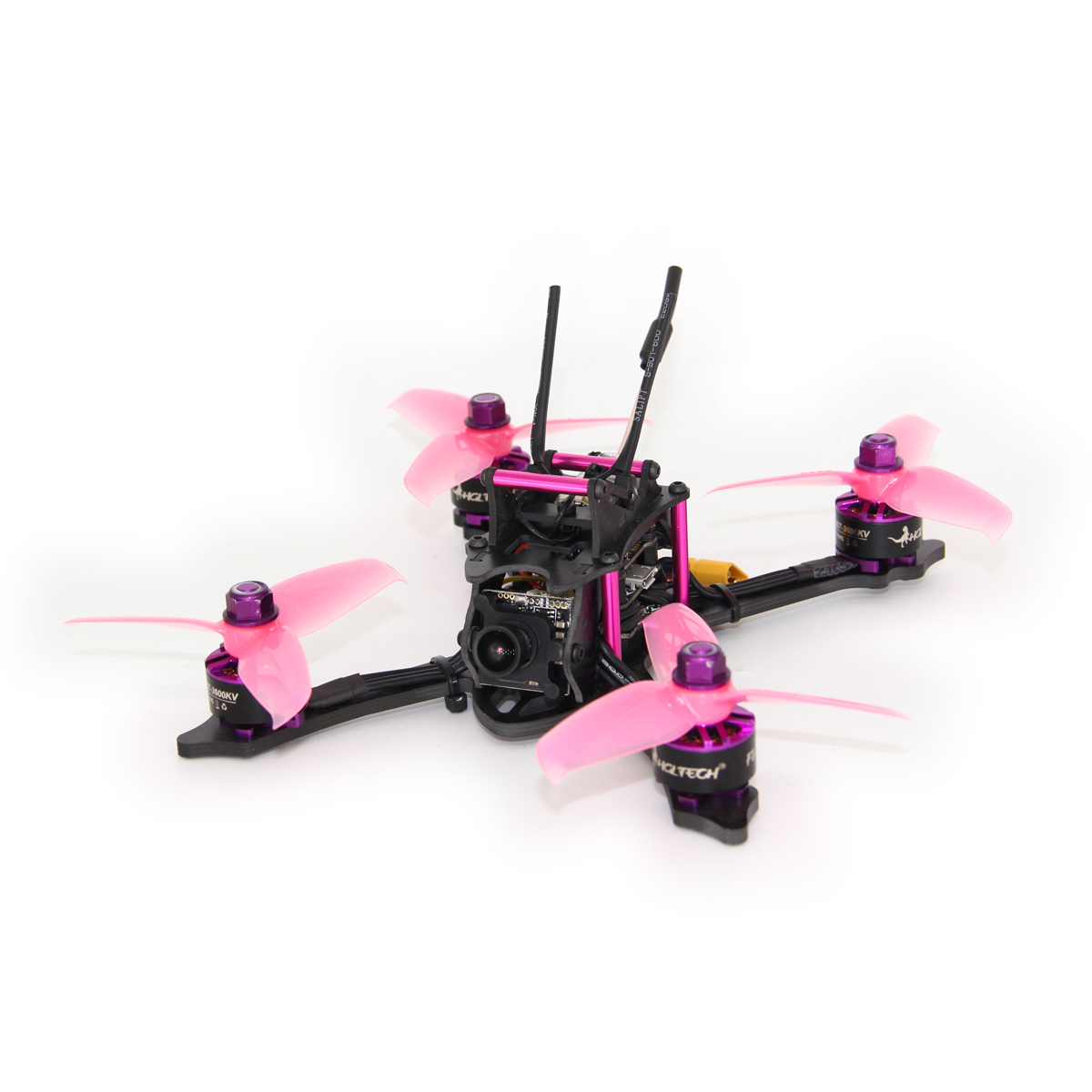

HGLRC XJB-145 145mm F4 OSD Micro FPV Racing Drone BNF w/ Compatible Flysky A8S V2 Receiver
Specification:
Brand Name: HGLRC
Model: XJB-145
Model: XJB-145
Item Name: 145mm F4 OSD FPV Racing Drone
Version: BNF ( with Compatible Flysky A8S V2 Receiver)
Drone Wheelbase: 145mm
Arm Plate Thickness: 3mm
Bottom Plate Thickness: 3mm
Side Plate Thickness: 1.5mm
Material: Carbon Fiber
Empty Frame Weight: 29g
| F4 Flight Controller |
Item Name: Micro F4 V2 FC AIO OSD BEC ( D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 20mm mounting holes (M2)
Weight:2.3g
Support Subs/PPM/DSMX receiver
|
| 28A BL_S 4in1 ESC |
Item Name: 28A 2-4S Blheli_S BB2 4 in 1 ESC
Input Voltage: 2-4S Lipo battery
Constant Current: 28A
Peak Current: 35A
BEC Ouput: NO
Firmware: BLheli_S 16.7
Size: 27x27mm (main board)
31x31mm ( including pad)
Installing Hole: 20x20mm, M2
Weight: 4.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Firmware: Betaflight 16.5
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse
|
| HF1407 3600KV Motor | Brand name: HGLRC Item name: Flame 1407 3600KV Brushless Motor KV: 3600KV Battery (Lipo): 3-4S Architecture: 9N12P Spindle diameter: 14mm Spindle length: 7mm Out shaft diameter: 5mm Motor size: Φ28.25 × 19mm Shaft threads: All CCW Weight (g): 14g (without silicone wire) |
| 3052 3-Blade Propeller | Item Name: Gemfan 3052 3 Inch 3-Blade Propeller |
| 48CH FPV Transmitter |
Item Name:HGLRC XJB-TX20.V2 Mini FPV Transmitter
Output power: PIT/25mW/100mW/200mW/350mW switchable
Control mode:BFOSD control(RX)/button
BAT: 7-26V,BEC 5V-1A
240mA—-350mW
Video system: NTSC/PAL
Antenna: IPEX
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
Size: 24*24mm(L*W),Hole:20*20mm
Weight: 2.4g
|
| FPV Camera |
Model: AURORA HD FPV Camera
Lmage Sensor: 1/3 Mg SUPER HAD II CCD Horizotal Resoulution: D1960H 2000TVL Lens: 2.1mm Signal System: PAL/NTSC (OSD Internal adjustable) S/N Ratio:>60Db(AGC OFF) Electronic Shutter Speed: PAL: 1/50-100.000, NTSC: 1/60-100,000 Auto Gain Control (AGC): LOW/MIDDLE/HIGH Back light compensation (BLC): YES Min lllumination: 0.001Lux/1.2F WDR: D-WDR DNR: 3DNR Day/Night: Auto/Color/B*W Power: DC 5V-30V Net weight: 5.g Dimensions: 19mm*19mm*19mm
|
| Compatible Flysky A8S V2 Receiver | Item Name:Compatible Flysky A8S V2Receiver Channels: PPM 8CH, i-BUS 18CH 2.4GHz system: AFHDS 2A DSC port: PPM/i-BUS/S.BUS Transfer method: FHSS Input power supply: 4.0-8.4V Display method: LED Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F |
Package Included:
1x HGLRC 145mm Carbon Fiber Frame Kit
1x HGLRC F4 AIO OSD BEC Flight Control Board
1x HGLRC 28A Blheli_S 4 In 1 ESC
1x XJB-TX20.V2 mini FPV Transmitter
1x AURORA HD FPV Camera
6x Gemfan 3052 Propellers
4x HGLRC HF1407-3600KV
1x Compatible Flysky A8S V2 Receiver
