Description
Specification:

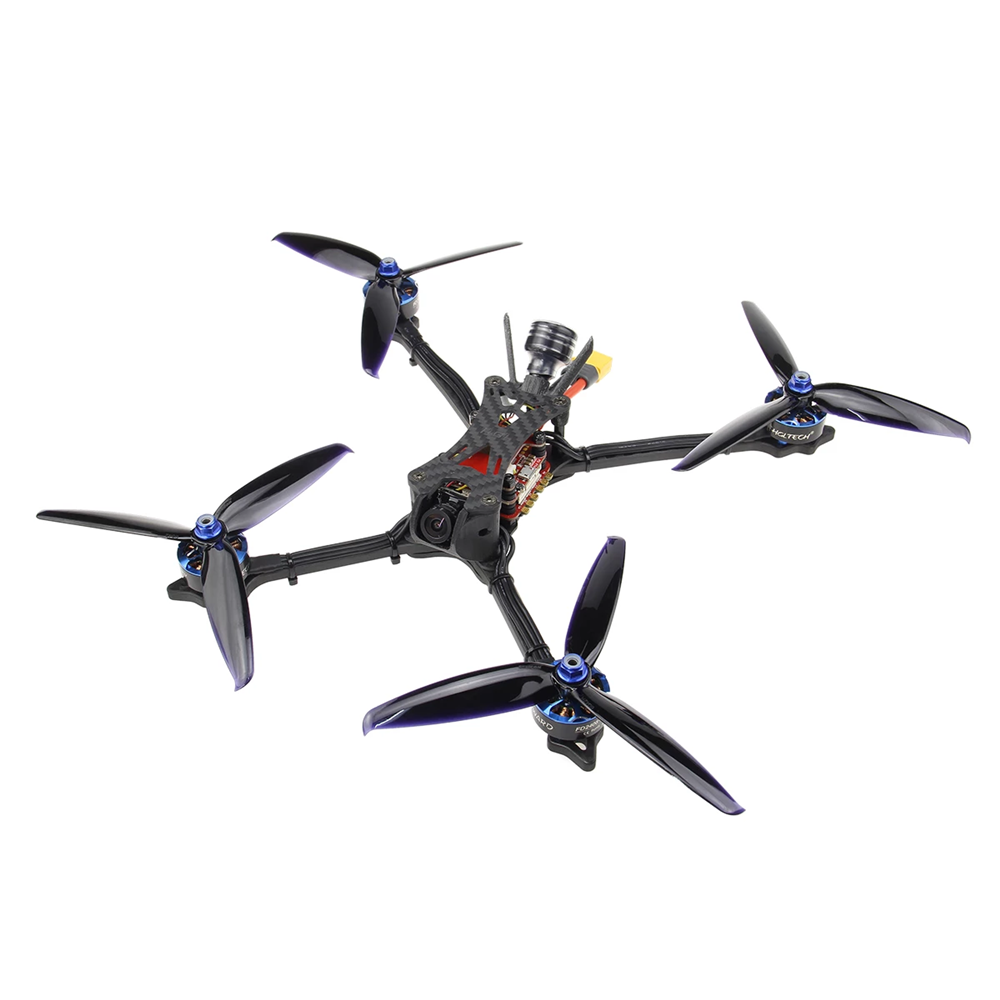

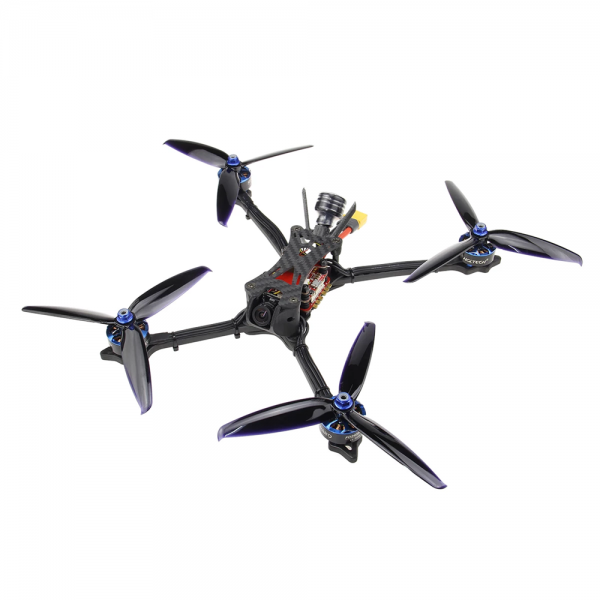

Brand Name: HGLRC Wind6 FPV RACING DRONE
Net Weight:389g
HGLRC Wind6 Hy.brid Frame Kit
Model: Wind6
Wheelbase: 267mm
Type: 6" Frame
Arm Thickness: 6mm
Standoff Height: 28mm
Flight control installation holes: 20*20mm&30 * 30mm Chute type
Support camera: 19mm
Material: Carbon Fiber
Weight: 101g
FD F7 Dual Flight Control
MPU: ICM20608 (32K) & MPU6000-SPI
CPU: STM32F745VGT6, 32K+16K
Input Voltage: 3-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A, 8V@1.5A
LED Output: 5V@3A,
Size: 37x37mm, 30.5mm mounting holes
Weight:10.2g
FD 65A 3-6S L431 BLHeli_32 4in1 ESC
CPU:STM32L431
Input Voltage: 3-6S Lipo
BLHELI32 Firmware
Steady Current: 65A
Pe.ak Current: 75A
BEC: NO
Supported Protocols:
DSHOT1200/600/300/150.ONESHOT125/42.MultiShot
Size: 46*45*6mm
Weight:23.6g
FD VTX
Output power: PIT/25mW/50mW/100mW/200mW/400mW
Control mode:BFOSD control(RX)/button
Input: DC 7-28V
BEC:5V-1A
Video system: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 6 bands 48 channels.with Raceband: 5362-5945 MHZ
Size:36x36x5mm.Hole:30.5*30.5mm
Weight: 5.2g
AURORA V2 FPV Camera 1200TVL
Image Sensor:1/2.7 " 1200TVL CMOS
TV System: PAL/NTSC Switchable
Lente:2.1mm
S/N: > 50dB
Min. illumination: Color: 0. 05Lux; BW: 0.001Lux(F1.2,50IRE,AGC ON)
WDR: Support
Lanuage: Chinese/English/Italian/Russian
OSD programming board: Support
Input Power: DC 5V-30V
Working Temperature:-10℃ ~50℃
Storage Temperature: -40℃ ~60℃
Dimensions:19mm*19mm*27mm
Net weight:8.9g
FD2408 2500KV Brushless Motor
Motor KV :2500
Maximum Current(A):52.90
Internal Resistance(mΩ): 37
Maximum Power(W):845.2
Stator Diameter(mm):24
Overall Dimension(mm): Φ28.7×18.6
Stator Height(mm):8
Shaft Diameter(mm): Φ5
No.of Stator Slots: 12
Lead Wire Size :18AWG×150mm
No.of Rotor Poles: 14
ESC :40-50A
Shaft Style:Stainless steel SUS420
Iron Core:Kaw.asaki Silicon Steel Sheets 0.2mm
Magnet:Sintered NdFeB N45SH
Magnet Wire:Class H 180℃ Enameled Wire
Rotor Runout(mm) :≤0.1
Rated Voltage(V) :16(4S)
Dynamic balance(mg) :≤10
Weight(Without wire):36.6g
Gemfan 6042 6 Inch 3-Blade Propeller
Quantity: 3 CW & 3 CCW
PNP Version without receiver
Package Included:
1x FD F7 Dual Flight Control
1x FD 65A 3-6S L431 BLHeli_32 4in1 ESC
1x FD VTX
1x AURORA V2 CAMERA
1x Wind6 Hy.brid Frame Kit
4x FD2408 2500KV Motor
6x GF6042 3 propeller
1x Hammer RHCP 5.8G Antenna
1x Battery Strap
BNF Version with receiver
Package Included:
1x FD F7 Dual Flight Control
1x FD 65A 3-6S L431 BLHeli_32 4in1 ESC
1x FD VTX
1x AURORA V2 CAMERA
1x Wind6 Hy.brid Frame Kit
4x FD2408 2500KV Motor
6x GF6042 3 propeller
1x Hammer RHCP 5.8G Antenna
1x Battery Strap
1x Receiver
