HGLRC T-Rex 60AMP 60A BLHeli_32 3-6S ESC Dshot1200 For RC Drone FPV Racing Multi Rotor
Description:
Brand name: HGLRC
Item name: T-Rex 60AMP ESC BLHeli_32
Input voltage: 3-6S Lipo
Work current: 60A-5S / 45A-6S
BEC: NO
Size(mm)L*W: 27*15
MOS: ALL N FET, TO.SHIBA COMPANY
Copper: 3OZ*6 18OZ
Firmware: 32bit ESC with BLHELI_32 firmware
Protocol: DSHOT1200 / DSHOT600 / 300 / 150 / Oneshot125 / 42,MultiShot Damped mode
Weight: 3.4g(no include wire)
MCU: STM32F051
Features:
Supported Protocols: Analog Signals – MULTISHOT, ONESHOT42, ONESHOT125 / Digital Signals – DSHOT150, 300, 600, 1200.
Imported Japanese To.shiba MOSFETs and Japanese Murata Ceramic Capacitors.
3oz High-TG PCB board: Reduces Heat Soak and improves system efficiency.
Silicone Signal and Power Wires provides high heat-resistance and flexibility.
Ultra-Small / Ultra-Light footprint.

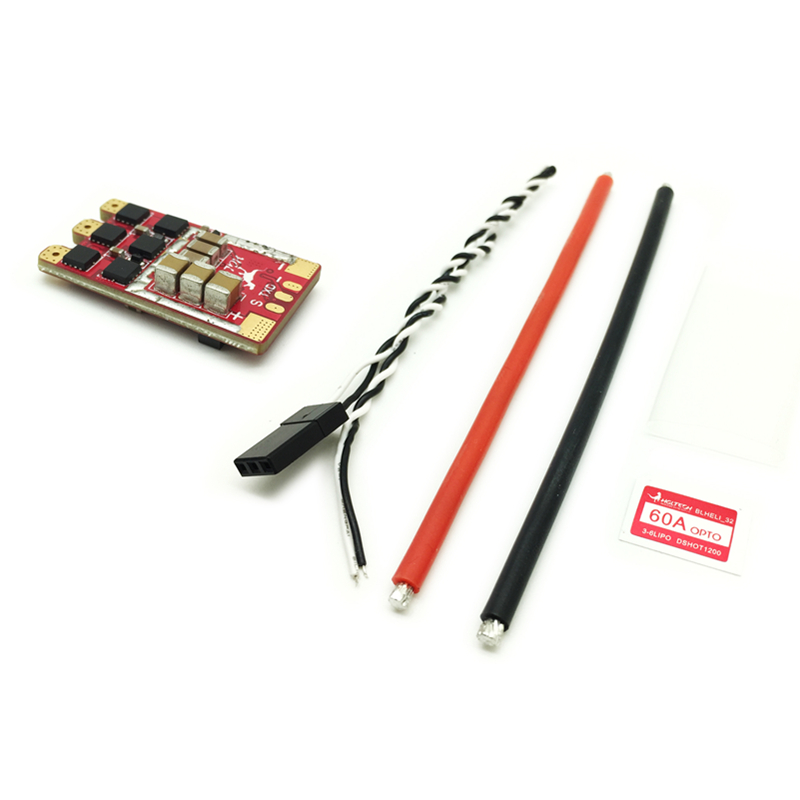

Package included:
1 x T-Rex 60AMP ESC BLHeli_32
