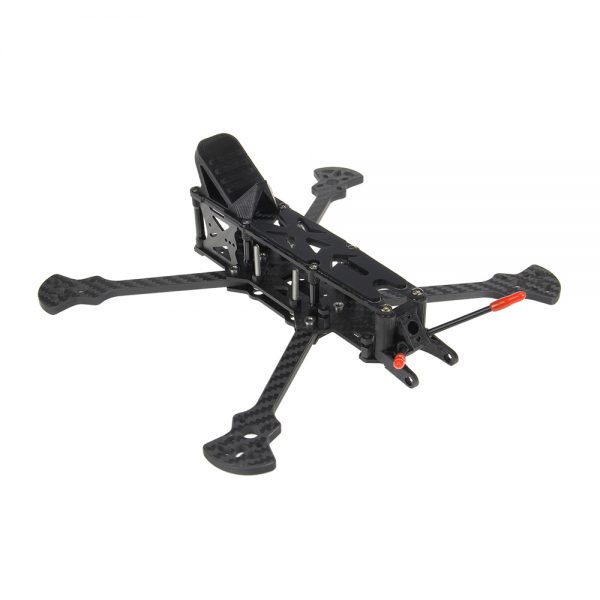

HGLRC Sector Freestyle 5/6/7 Inch 226/260/296mm Wheelbase 5mm Arm 3K Carbon Fiber Frame Kit for RC Drone FPV Racing

Description

Specification:
Brand Name:HGLRC
Model:Sector Freestyle Frame Kit
Material: 3K Carbon Fiber
Top plate thickness: 2mm
Bottom plocte thickness: 2mm
Middle plate thickness: 2mm
Camera side panel thickness: 1.5mm
Arm Thickness: 5mm
Arm width : 10mm
Top and middle plate spacing: 25mm
Installation holes: 20×20/30.5×30.5mm
Support camera: 19×19/22x22mm

FRAME-Sector 5"
Type: 5" frame
Wheelbase: 226mm
Support for propellers: up to 5.5 inches
Overall size: 174 * 146mm
Weight: 103.5g(Does not contain TPU)

FRAME-Sector 6"
Type: 6" frame
Wheelbase: 260mm
Support for propellers: up to 6 inches
Overall size: 200*168mm
Weight: 110.1g(Does not contain TPU)

FRAME-Sector 7"
Type: 7" frame
Wheelbase: 296mm
Support for propellers: up to 7 inches
Overall size: 226*196mm
Weight: 114g(Does not contain TPU)

Features:
Hy brid Frame Design
Flight control installation damping system
TPU Antenna Mounts
Capacitor mounting slot
Camera mounting size support 19×19/22x22mm

Recommended Parts: ( Not Included )
Flight Controller: Kiss/F4/F7 FC
Motor: FD2207/FD2306/FD2408
ESC: 35A-65A
Camera: 19×19/22x22mm size
Propeller: Sector 5" – 5 ~ 5.5 Inch
Sector 6" – 6 Inch
Sector 7" – 7 Inch
Battery: 4S 1500mAh ~ 6S 1800mAh

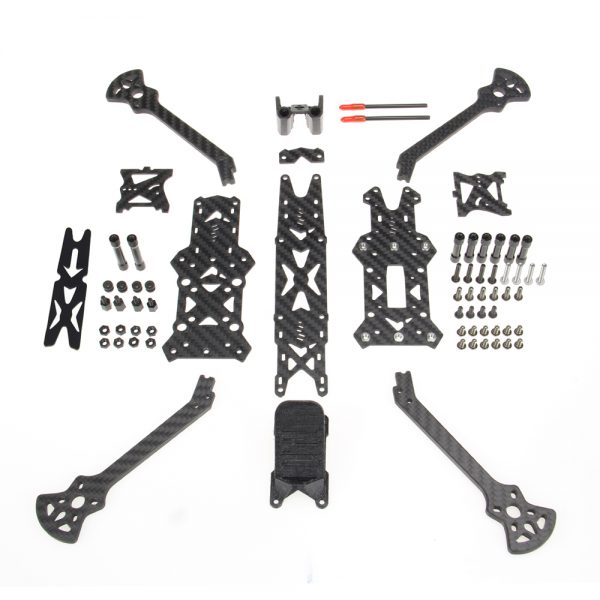

Package Included:
1 x 2mm top plate
1 x 2mm bottom plate
1 x 2mm middle plate
4 x 5mm arm
2 x 1.5mm side plate
1 x 1.5mm protection board
6 x M3*25mm black aluminum column
2 x M3*32mm black aluminum column
4 x M3*6+6 black nylon column
8 x M3*2 black nylon nut
12 x round head screw M3*6
4 x round head screw M3*8
6 x round head screw M3*10
4 x round head screw M3*16
4 x M3 sh ock ab sorber ball
1 x battery cable tie 20x250mm
1 x battery Anti-slip tape
2 x antenna protection tube
1 x TPU antenna mount
1 x TPU Mount for Gopro
