Description
Specification:
Brand: HGLRC
Model: Petrel 85 Whoop
Item Name: 2 Inch 2S RC FPV Racing Drone
Version: RTF
| Petrel 85 Whoop | Frame: Petrel 85 Whoop rack Flight Controller: SPECTER 10A AIO MCU: STM32F411 GYRO: ICM42688 Built-in video transmission: 0-RCE-25-100-400mW (adjustable) Onboard ESC: Continuous current: 10A Peak current: 13A(10s) ESC protocol: Dshot600, Oneshot, Multishot; ESC firmware: Z_H_30/(Bluejay) Flight control firmware: HGLRCF411SX1280 V2 Flight control input voltage: 1-2S 3.7v-7.4v (Lipo) Installation hole position:25.5X25.5mm.M2 Motor: SPECTER 1202.5 11000kv motor Propeller: Gemfan 2015 two-blade propeller ELRS version weight: 48±1g |

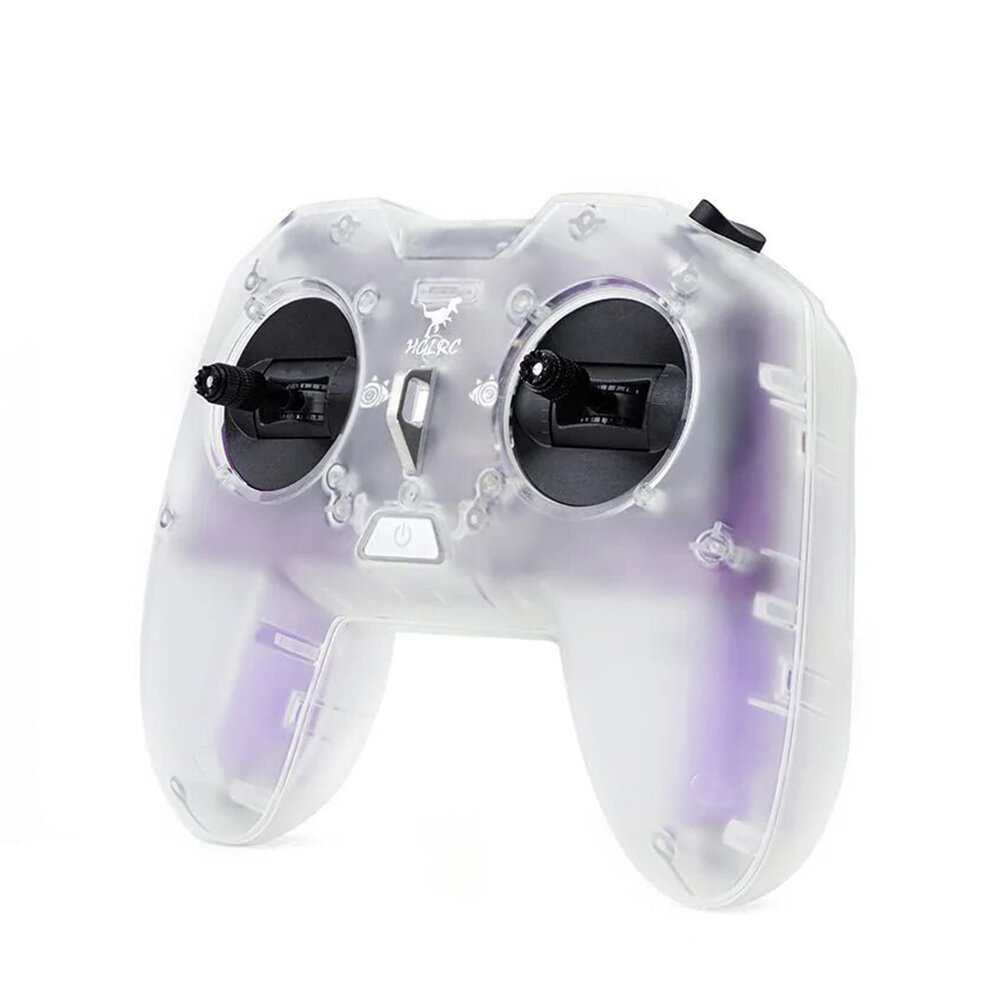

| Remote Controller | Built-in ELRS: ELRS 2.4GHZ Built-in ELRS refresh rate: 250Hz Remote controller sensor type: potentiometer sensor Antenna: built-in ipex1 generation copper tube antenna Working voltage: 6-8.4v DC Remote control distance: greater than 500m Output interface: TX module NANO bin (crsf protocol) TYPE-C(only charging and firmware flashing) 3.5MM analog trainer port Battery: 18650 flat head battery ×2 (need to be installed by yourself) Charging: TYPE-C charging current 1.2A The charging time is about 3-4 hours Remote control channel: 8 channels Bluetooth: Bluetooth 4.2 ELRS firmware upgrade method:WIFl or TYPE-C cable brush ELRS firmware version: ELRS 3.0 ELRS firmware name: DIY devices 2.4 GHz DIY ESP32 +E28 2.4GHz TX Weight: 195g (excluding battery) Size: 160mmx130mmx50mm (excluding remote control) |
| 5.8G FPV Video Goggles | Model: 5.8G FPV video goggles Screen material: 3.0-inch IPS high-brightness screen Display resolution:480*320 Display specifications: 16:9 Field of view: 360 degree full viewing angle Backlight brightness: 500cd/m2 Video delay: less than 10 milliseconds Antenna head: Inner hole antenna head with RP-SMA inner needle antenna Charging port: Use TYRE-Cto charge the built-in battery Headphone port: 3.5mm AV jack supports video input and audio and video output Menu language: Chinese and English Battery: Power adapter: It is recommended to use DC5V/1A or DC/5V2A charging head Battery specifications: Built-in 3.7V/8 1200mAh polymer battery Power consumption: *Operating current 350 mA *Battery charging time is about 1 hour, use time is about 3 hours Size:107mm/150mm*75mm Weight: 300g (excluding antenna) |
| Dongle parameters |
Built-in ELRS Maximum supported Weight:9.5g |
Features:
1. Compact size for easy handling and maneuverability.
2. Durabl construction to withstand rough play and outdoor conditions.
3. High-quality performance for an enhanced flying experience.
4. User-friendly controls for convenient operation.
5. Stylish design to appeal to children and toy enthusiasts.
Package Included:
1x Petrel 85 Whoop drone
1x Packing box
1x C1 remote control
1x VR1005.8GHZ Analog image transmission goggles
1x 915 fpc antenna
1x Propeller extractor
1x C3 charger power cord
1x Wireless dongle
8x Propeller
1x C3 charger
1x M2 hexagonal L wrench
1x 82mm Phillips 1.5 screwdriver
1x Micro data cable
1x Type-C charging cable
1x Goggles 3.5mm conversion cable
2x 720mAh Lipo Battery
1x C3 charger manual
1x Sticker
1x Instructions
1x Card
