Description

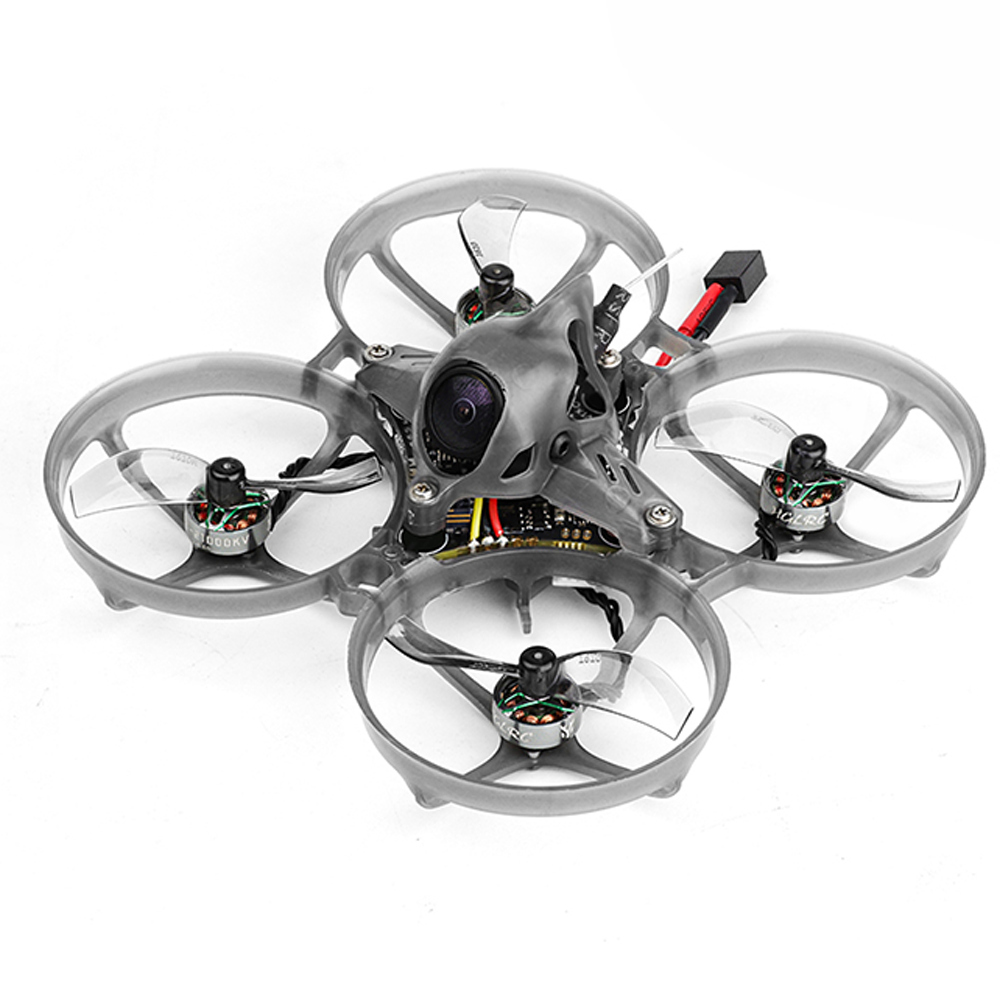

HGLRC Petrel 75mm RTF Kit,a suitable entry kit for beginners and introductory teaching.
Notes to buyers:
RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
Technical Parameters:
Brand: HGLRC
Model: Petrel 75 Whoop
Item Name: V2 1S RC FPV Racing Drone
Version: RTF
Remote Control Protocol: 2.4GHz ELRS 3.0
Flight Controller Firmware Version: BF4.4.2
ESC Firmware Version: Bluejay
Flight Controller: SPECTER 10A AIO
Motor: SPECTER 0802 21000kv
Compatible Battery: LIHV 550mah 1S
Propeller: Gemfan1610 2-blade propeller
Drone Weight: ELRS version 27±1g
Specifications:
|
Petrel 75Whoop
|
Frame: Petrel 75Whoop rack Flight Controller: SPECTER 10A AIO MCU: STM32F411 GYRO: ICM42688 Built-in Video Transmission: 0-RCE-25-100-400mW(adjustable) Onboard ESC: Continuous Current: 10A Peak Current: 13A(10s) ESC Protocol: Dshot600, Oneshot, Multishot; ESC Firmware: Z_H_30/(Bluejay) Flight Controller Firmware: HGLRCF411SX1280V2 Flight Controller Input Voltage: 1-2S 3.7v-7.4v (Lipo) Installation Hole Position: 25.5X25.5mm.M2 Motor: SPECTER 0802 21000kv Motor Propeller: Gemfan 1610 2-blade Propeller ELRS Version Weight: 27±1g |
|
Remote Control |
Built-in ELRS: ELRS 2.4GHZ Built-in ELRS Refresh Rate: 250Hz Remote Control Sensor Type: Potentiometer sensor Antenna: Built-in Ipex1 Generation Copper Tube Antenna Working Voltage: 6-8.4v DC Remote Control Distance: Greater than 500m Output Interface: TX Module NANO Bin(Crsf Protocol) TYPE-C (only Charging and Firmware Flashing) 3.5MM Analog Trainer Port Battery: 18650 Flat Head Battery x2 (Need to be Installed by Yourself) Charging: TYPE-C Charging Current 1.2A The Charging Time is About 3-4 Hours Remote Control Channel: 8 Channels Bluetooth: Bluetooth 4.2 ELRS Firmware Upgrade Method: WIFI or TYPE-C Plug Wire Brush ELRS Firmware Version: ELRS 3.0 ELRS Firmware Name: DIY Devices 2.4 GHz DIY ESP32+E28 2.4GHz TX Weight: 195g (Excluding Battery) Size: 160mmx130mmx50mm (Excluding Remote Control) |
|
Dongle |
Built-in ELRS Maximum Supported Frequency: 250hz Receiving Distance: More than 200m Binding Method: Quickly Power on and off Three Times to Enter Binding Mode Interface: USB TYPE-C+USB TYPE-A Double Plug Working Voltage: 5v ELRS Firmware Upgrade method: WIFI or USB Plug ELRS Firmware Version: ELRS 3.0 ELRS Firmware Name: HGLRC 2.4 GHz HGLRC 2.4GHz RX External Receiver Support Protocol: Only Supports CRSF Protocol Weight: 9.5g Size: 74mmx21mmx12.5mm |
|
5.8G FPV Video Goggles |
Model: 5.8G FPV Video Goggles Screen Material: 3.0-inch IPS High-brightness Screen Display Resolution: 480*320 Display Specifications: 16:9 Field of View: 360 Degree Full Viewing Angle Backlight Brightness: 500cd/m2 Video Delay: Less than 10 Milliseconds Antenna Head: Lnner Hole Antenna Head with RP-SMA Inner Needle Antenna Charging Port: Use TYRE-C to Charge the Built-in Battery Headphone Port: 3.5mm AVjack Supports Video Input and Audio and Video Output Menu language: Chinese and English Battery: Power Adapter: It is Recommended to use DC5V/1A or DC/5V2A Charging Head Battery Specifications: Built-in 3.7V/8 1200mAh Polymer Battery Power Consumption: *Operating Current 350 mA *Battery Charging Time is About 1 hour, Use Time is About 3 hours Size: 107mm/150mm*75mm Weight: 300g (Excluding Antenna)
|
Features:
— 75mm wheelbase handheld quadcopter, It is easy to fly.
— Standard HGLRC Petrel wireless dongle, free from cable constraints, support a variety of simulators, practice anytime, anywhere.
— Three preset flight modes, carefully adjusted parameters for novices to masters, to meet advanced flight needs.
— Matching goggles are small in size, light in weight, and can match 0-700 degree myopia.
— Equipped with a special suitcase bag, everything you need for flying is in the bag, no pressure to carry it out.
Package Included:
1x HGLRC RTF bag
1x Petrel 75 Whoop V2 Drone
4x Propellers
1x Goggles 5.8G VR100 Goggles
1x HGLRC C1 remote control
1x HGLRC remote control strap
1x Micro data cable
1x TypeC data cable
1x HW65Wchargingkit（Only supports charging aircraft batteries）
2x 550mah 1S LIHV battery
1x HGLRC dongle
2x HGLRC battery tie
6x Battery rubber band
1x USB adapter plate
1x 1.5 small cross screw
1x M2 hexagon L wrench
1x Propeller remover
1x Universal QR code manual
1x HGLRC small sticker
1x Motor steering card
