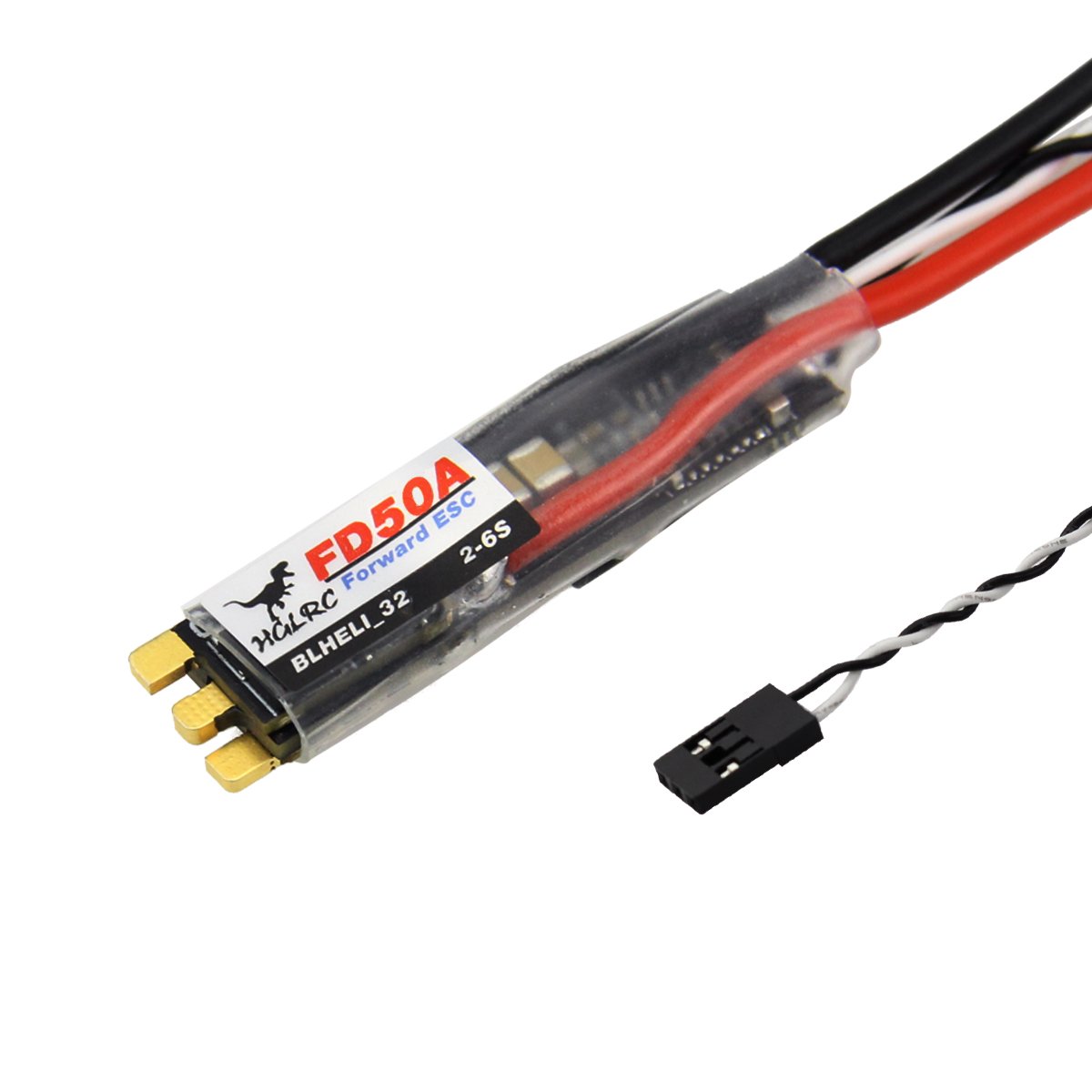

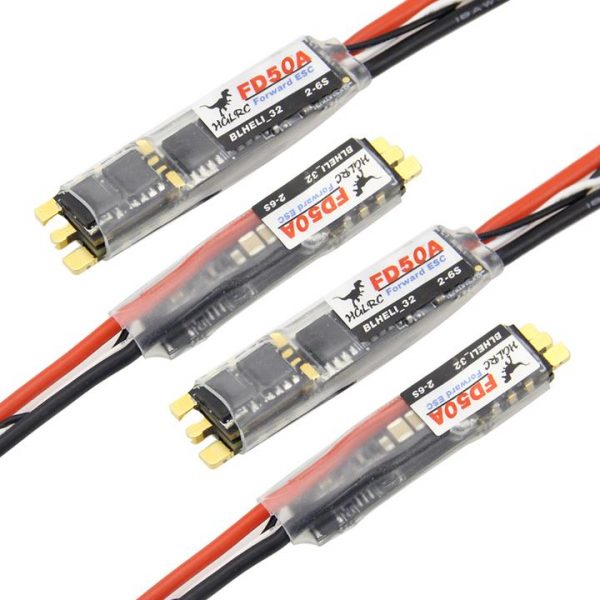

HGLRC Forward FD50A 50A Blheli_32 32bit DSHOT1200 Brushless ESC for RC FPV Racing Drone
Specification:
Brand name: HGLRC
Item name: Forward FD50A Brushless ESC
Input Voltage: 2-6S Lipo battery
Constant Current: 50A
Peak Current: 60A
BEC Ouput: NO
Firmware: BLHELI_32
Size: 42x10x6.4mm
Weight: 5.2g
CPU:STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol:DShot 150/300/600/1200, Oneshot125, Oneshot42, Multishot
Feature:
Super overcurrent protection
3-layer PCB board
3 ways of Current Shunt
Single circuit current only pass single layer.
to protect esc board to avoid overheat and overcurrent.
Support 2-6S Lipo battery
Support 22xx, 23xx, 24xx series motor
Suitable for Narrow arm frame Drone
Suitable for 5-7 inches quad
Package Included:
1 x Forward FD50A Brushless ESC
