Description
Description:
Item Brand:HGLRC-Flipsky
Item Number:H5055

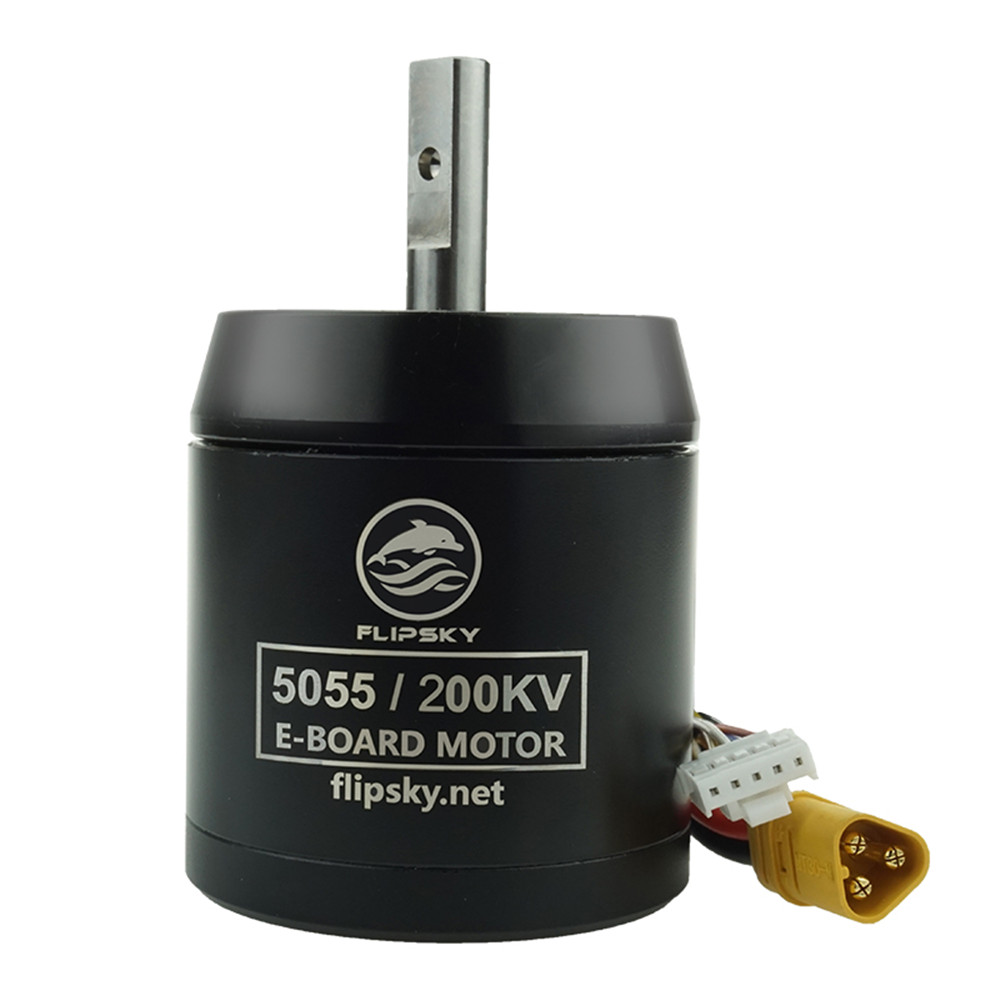

Item Name:H5055 200KV 1380W Brushless DC Belt Moto
Material:Metal
Color:Black
Size:As the picture shown
Product Spec:
Max Power: 1380W
Max Current: 39A
Max Volts: 12S
Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
Weight: 1.05 lb / 0.475 kg
The motor length:55.5mm
The motor diameter: 49.5mm

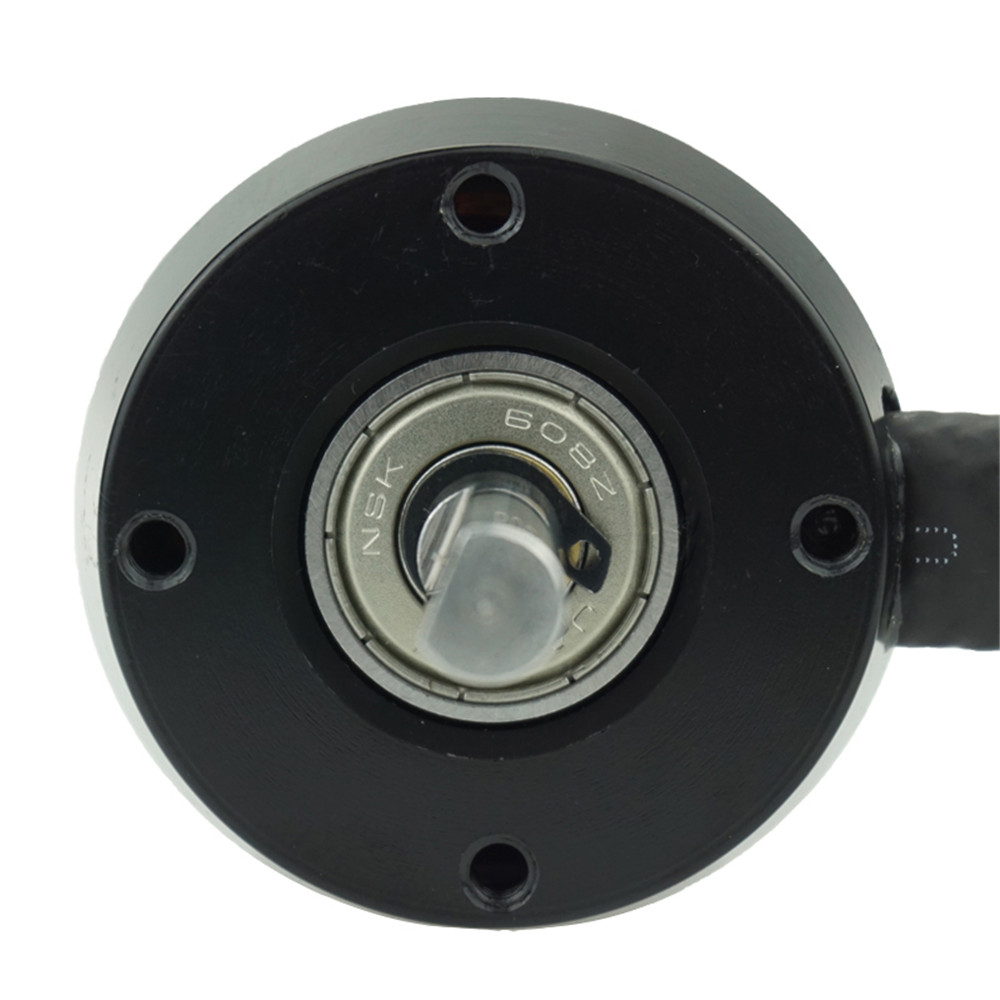

SHAFT: Diameter 8mm, 25mm length
Motor Wire: 300mm silicone 16AWG wire with MT30 male connector.
Wire configuration:
Blue = A
White = B
Yellow = C
BLDC Motor
The number of pole: 14
Sensor Wire: Standard RC Sensor Wire HY2.0-5P connector
Package included:
1X H5055 Brushless Motor
