Description
Description:
Item Brand:HGLRC-FLIPSKY

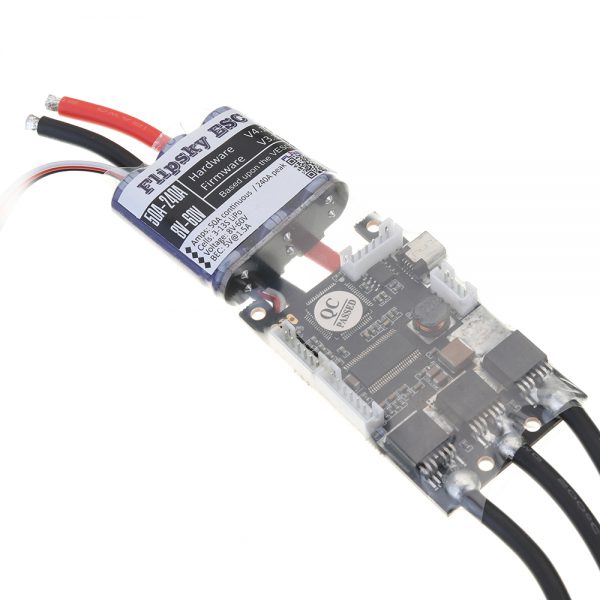

Item name:50A SK8-ESC
Weight: 124g,with packaging
Size: 60x40x20mm
Packaging size:21*15*4cm
Specification:
Application:50A VESC for electric longboard/RC Car/E-bike/E-scooter
Motor supported:sensor & sensorless brushless motor
Hardware:V4.12
Firmware: V3.38
Amps: 50A continuous / 240A peak
Cells: 3-14S LiPo
Voltage: 8V-60V
BEC: 5V@1.5A
BEC type: Internal driver support
Timing: Software calibration
Cutoff Voltage: Programmable
Frequency: PWM input
Governor: No
Programming card: No
Reverse: No
For more information you can click here
For more information you can click here
Due to two phase design, the ESC has strict requirement on parameter setting. If not match well, it will cause over-current cut off during hard brake or hard accelerate for about 0.2s, but after 0.2s it will recover the power.
Here’s our suggestion for the setting , it’s verified no such problem in this setting.
10S battery
Motor Current Max:30.00A
Motor Current Max Brake:-25.00A
Absolute Maximum Current:130.00A
Slow ABS Current Limit:True
Battery Current Max:30.00A
Battery Current Max Regen:-25.00A
DRV8301 OC Mode:Current Limit
DRV8301 OC Adjustment:16
Or:
Here’s our suggestion for the setting , it’s verified no such problem in this setting.
10S battery
Motor Current Max:30.00A
Motor Current Max Brake:-25.00A
Absolute Maximum Current:130.00A
Slow ABS Current Limit:True
Battery Current Max:30.00A
Battery Current Max Regen:-25.00A
DRV8301 OC Mode:Current Limit
DRV8301 OC Adjustment:16
Or:
10s4p Samsung 30q Battery Pack
Motor Current Max : 30A
Motor Current Max Brake : -30A
Battery Current Max : 50A
Battery Current Max Regen : -40A
Absolute Maximum Current : 120A
Package included:
1X 50A SK8-ESC
