Description
Description:

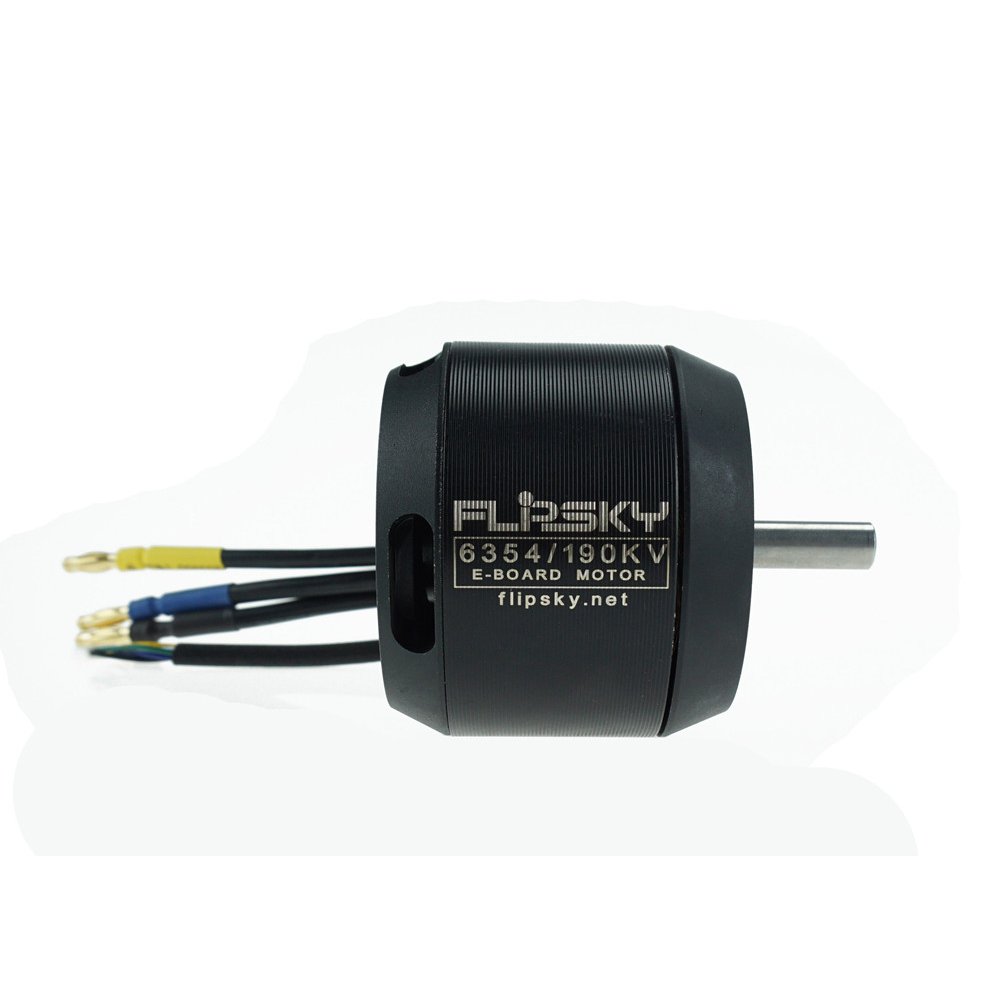

Brand:HGLRC-Flipsky
No:6354
Weight: 1.23 lb / 0.56 kg
Packaging weight:about 800g
Packaging size:115mm*175mm*90mm
Mainly fit for electric skateboards and electric bikes, as well as underwater propellers and robots, can be used with large aircraft models
Motor Spec:
Motor KV: 190KV
Idle current: 1.2A
Motor Resistance: 0.053Ohm
Max. power: 2450W
Max current:65A
Battery type: 4-12S
Max volts:12S
Max volts:12S
Diameter(mm): 63.4
Length(mm): 57

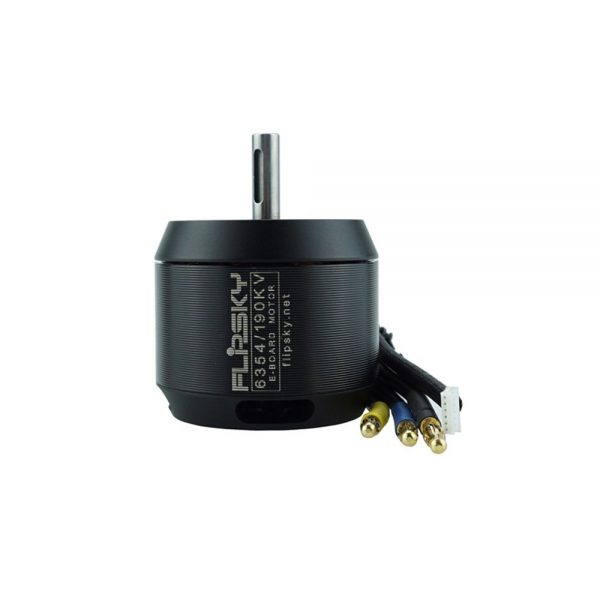

SHAFT: Diameter 8mm, 24mm length, 3×1.5 keyway slot.

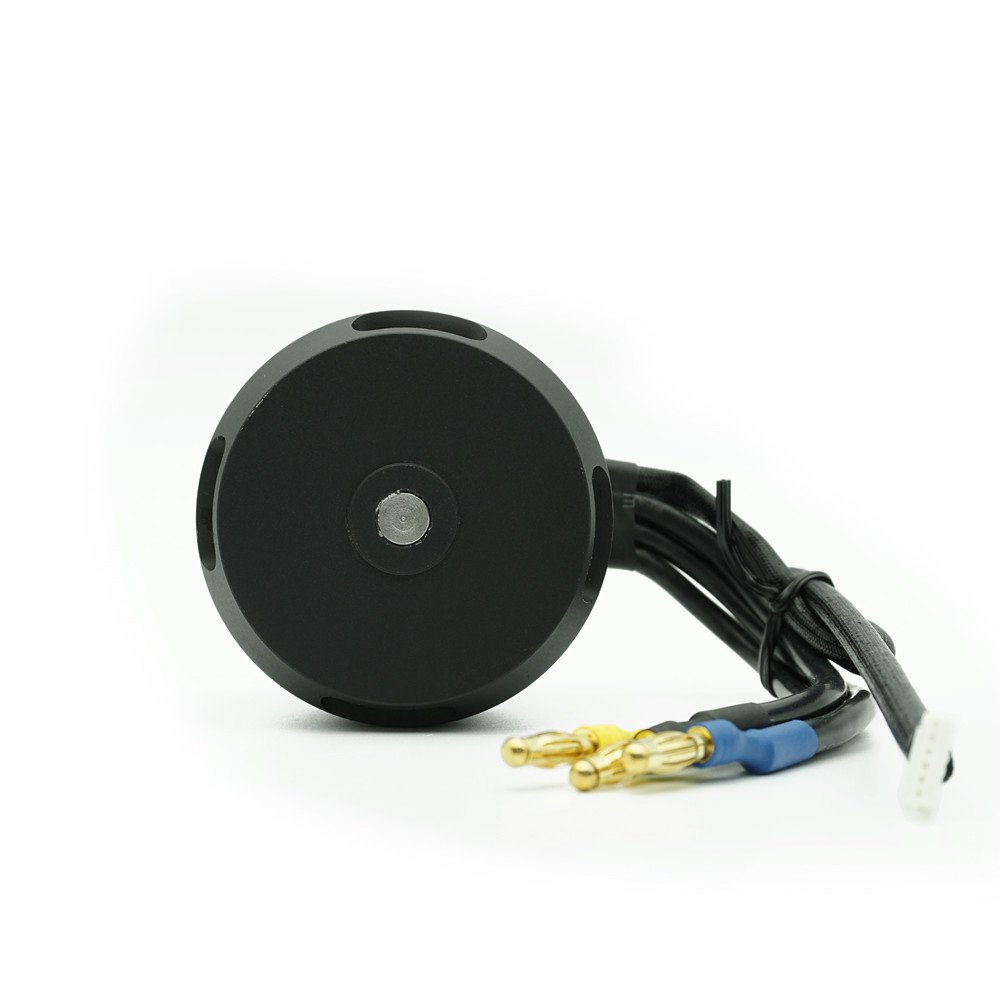

Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Female.
Wire configuration:
Blue = A
Black = B
Yellow = C
Stator: 0.2mm thickness lamination japan steel
Magnet: N42SH high temp curve magnet
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
VESC Sensor Wires required to use with VESC.
Wire configuration:
Red = 5v
White = Temp
Blue = A
Yellow = C
Green = B
Black = GND
Screws(the packaging are not included):

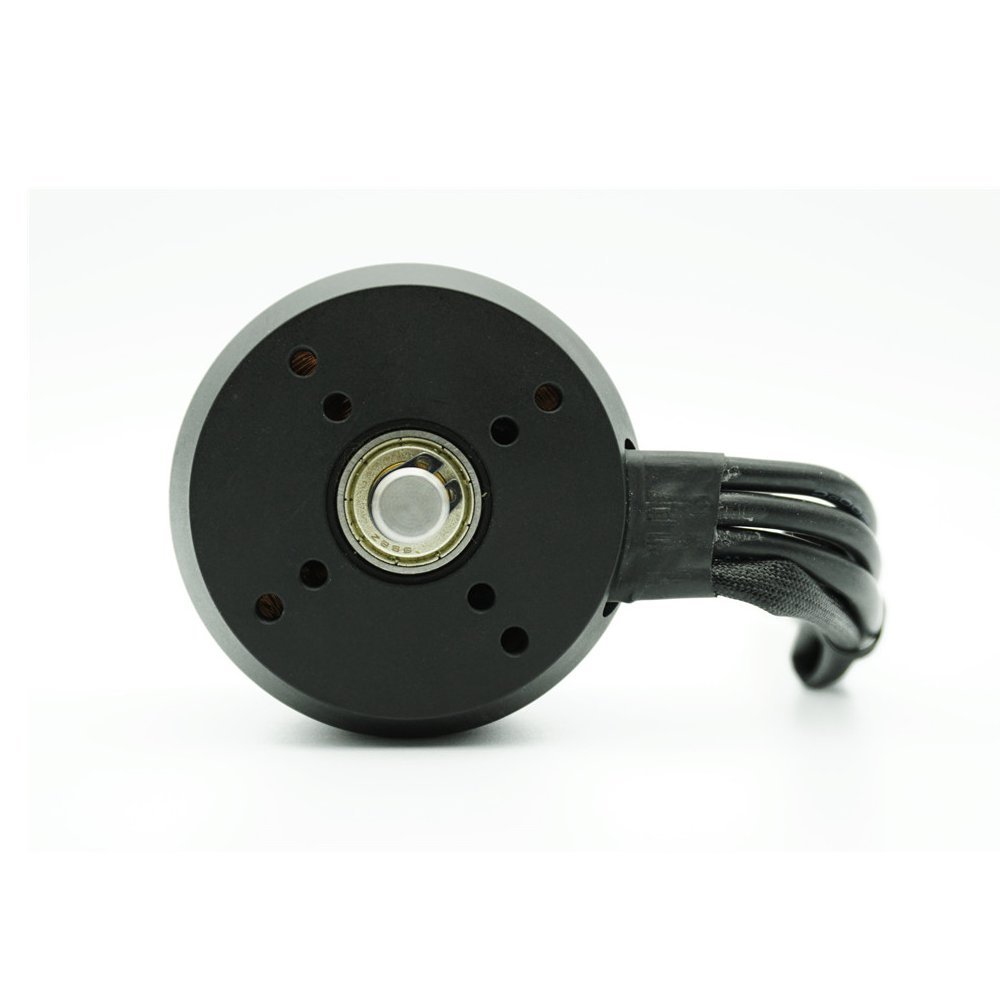

The screws used for the motor are M4x8mm metric bolts. Using our motor mounts, we recommend using M4x8mm Socket Cap bolts.
Package included:
1X 6354 190kv 2640W Motor((Fits 63mm Motor Mount)
