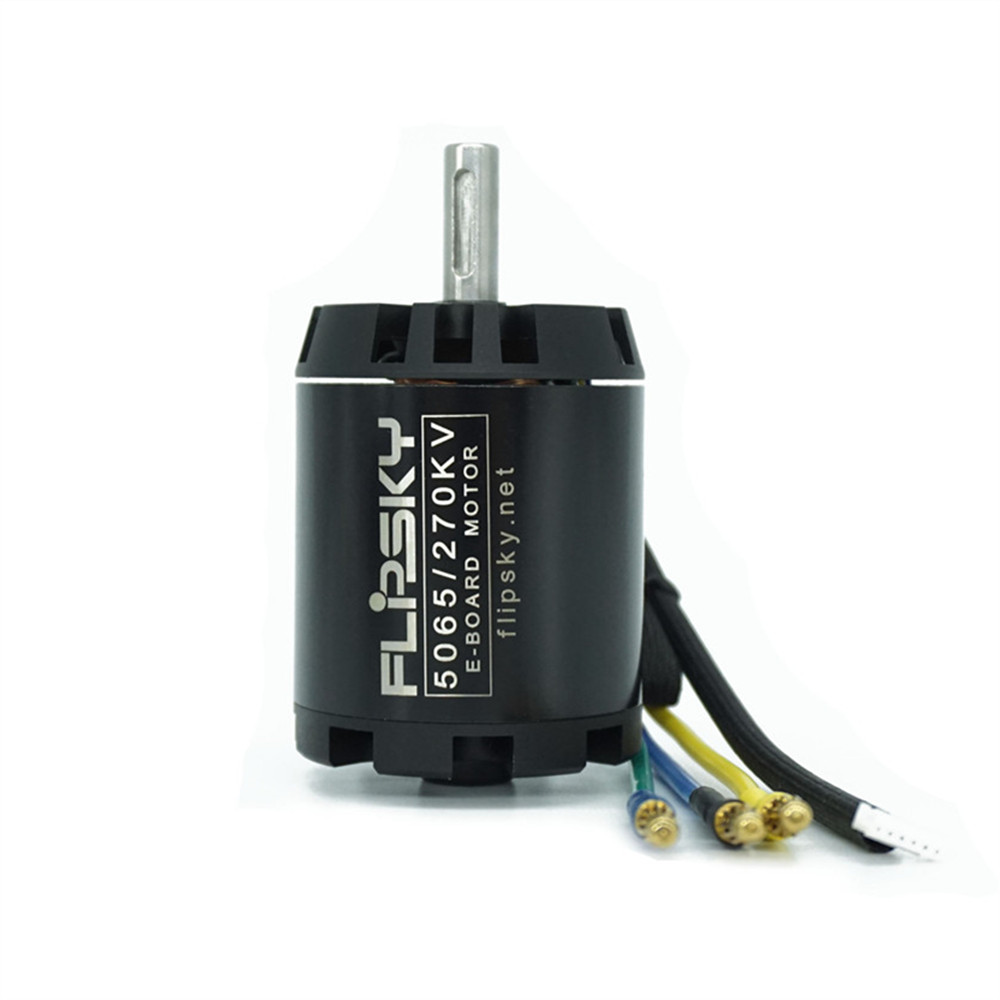

HGLRC-Flipsky 5065 270KV 1550W Brushless Sensored Motor Shaft 8mm for Electric Skateboard Rc Model

Brand:HGLRC-Flipsky

No:5065

Weight: 0.99 lb / 0.45 kg

Packaging weight:490g

Packaging size:125mm*80mm*70mm
Recommendation esc:3-12S 50A(FSESC4.12 50A,or FSESC 6.6 60A)

Mainly fit for electric skateboards and electric bikes, as well as underwater propellers and robots, can be used with large aircraft models

Motor Spec:
Max Power: 1550 Watts
Max Current: 80 Amps
No-load Current: 1.12A 10V
Max Volts: 41.5V
Lipo: 3S-8S (11.1V-29.6V)
Max Torque: 4Nm
Motor Resistance: 64mΩ
Weight: 0.99 lb / 0.45 kg
The motor length:65mm
The motor diameter: 50mm
SHAFT: Diameter 8mm, 20mm length, 3×1.5 keyway slot.
Motor Wire: 160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector Male.
Wire configuration:
Blue(Heat shrinkable film) = A
Black(Heat shrinkable film)= B
Yellow (Heat shrinkable film)= C
Stator: 0.2mm thickness lamination japan steel
Magnet: N42SH high temp curve magnet
Brushless Motor
The number of pole: 14

Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
VESC Sensor Wires required to use with VESC.
Wire configuration:
Red = 5v
White = Temp
Blue = A
Yellow = C
Green = B
Black = GND

Screws(the packaging are not included):
The screws used for the motor are M4x8mm metric bolts. Using our motor mounts, we recommend using M4x8mm Socket Cap bolts.
