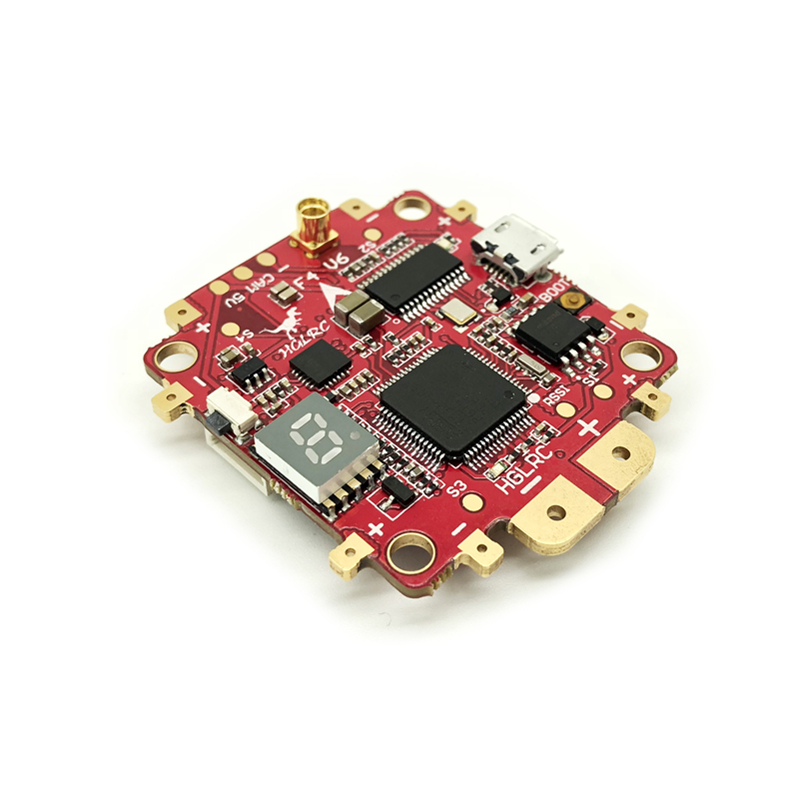

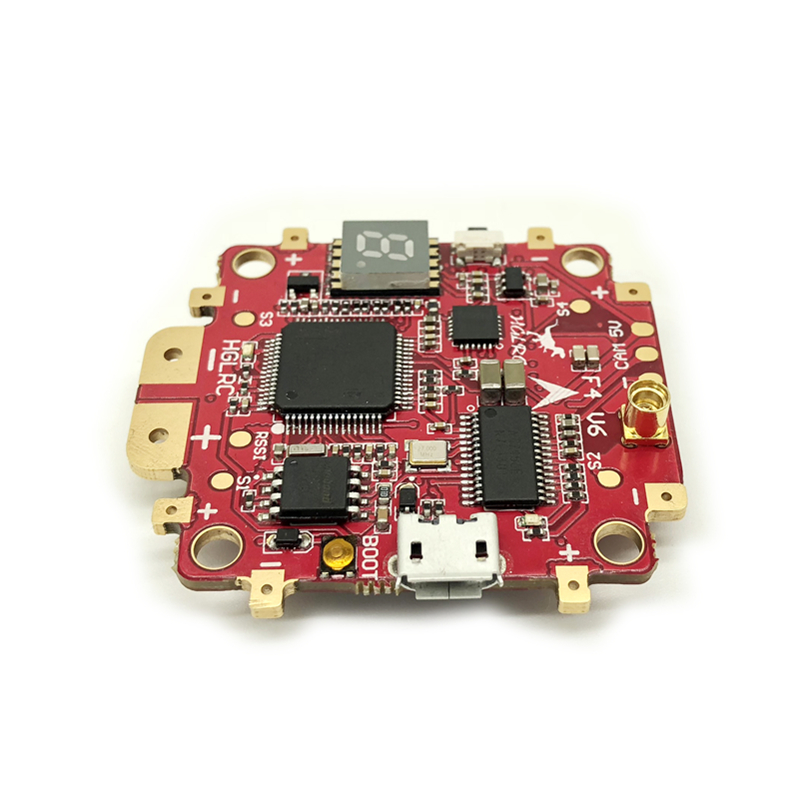

HGLRC F4 V6PRO Flight Controller 5.8G 48CH 0/25/100/200/400/600mW VTX Raceband Built-in 5V BEC PDB OSD
Description:
Brand name: HGLRC
Item name: F4 V6PRO 48CH 0/25/100/200/400/600mW VTX
Chip: STM32F405RGT6, dual open 8K, MPU6000-SPI connection
Built-in 5V/3A BEC output
Direct welding ESC PDB
Built-in current sensor
FPV transmitter: 0/25/100/200/400/600mW 48CH switchable transmitter (BFOSD control)
Input voltage: 2-6S
Board thickness: 1.6MM
Copper foil thickness: 2OZ * 8
Maximum current: 200A
Hole mounting size: M3 30.5 * 30.5mm
Weight: 15.6g
Features:
Built-in BETAFLIGHT OSD to achieve remote control PID parameters.
Buzzer / programming LED / voltage monitoring / BLHELI-S ESC programming.
Support SBUS / PPM / DSMX and other mainstream mainstream receiver.
Black box FLASH 16M large capacity storage.
Package Included:
1 x F4 V6PRO 48CH 0/25/100/200/400/600mW VTX
1 x Aantenna
,
,
,
,
,
,
,
,
,
,
