Description

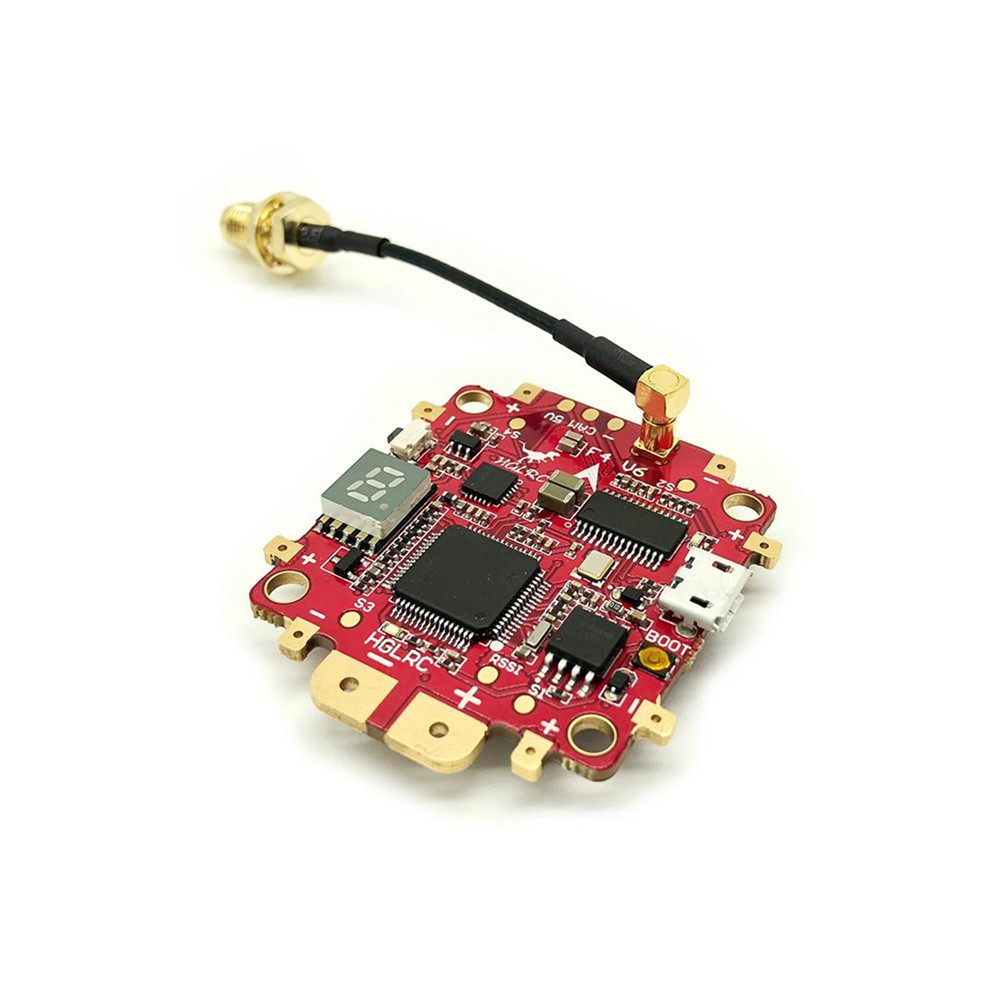

HGLRC F4 V6 PRO Flight Controller 5.8G 48CH VTX + 4 PCS T-Rex 35AMP BLHeli_32 3-6S ESC for RC Drone
Specification:
Brand name: HGLRC
Item name: F4 V6PRO 48CH 0/25/100/200/400/600mW VTX
Chip: STM32F405RGT6, dual open 8K, MPU6000-SPI connection
Built-in 5V/3A BEC output
Direct welding ESC PDB
Built-in current sensor
FPV transmitter: 0/25/100/200/400/600mW 48CH switchable transmitter (BFOSD control)
Input voltage: 2-6S
Board thickness: 1.6MM
Copper foil thickness: 2OZ * 8
Maximum current: 200A
Hole mounting size: M3 30.5 * 30.5mm
Weight: 15.6g
Features:
Built-in BETAFLIGHT OSD to achieve remote control PID parameters.
Buzzer / programming LED / voltage monitoring / BLHELI-S ESC programming.
Support SBUS / PPM / DSMX and other mainstream mainstream receiver.
Black box FLASH 16M large capacity storage.
Brand name: HGLRC
Item name: T-Rex 35AMP ESC BLHeli_32
Input voltage: 3-6S Lipo
Work current: 35A
Burst Current: 45A
BEC: NO
Size(mm)L*W: 27*15
MOS: ALL N FET, TOSHIBA COMPANY
Copper: 3OZ*6 18OZ
Firmware: 32bit ESC with BLHELI_32 firmware
Protocol: DSHOT1200/ DSHOT600/ 300/ 150/ Oneshot125/ 42, MultiShot Damped mode
Weight: 3.4g(no include wire)
MCU: STM32F051
To download the installation package of BLHeli_32 Android APP please click here.
Features:
-Supported Protocols: Analog Signals – MULTISHOT, ONESHOT42, ONESHOT125/ Digital Signals – DSHOT150, 300, 600, 1200.
-Imported Japanese Toshiba MOSFETs and Japanese Murata Ceramic Capacitors.
-3oz High-TG PCB board: Reduces Heat Soak and improves system efficiency.
-Silicone Signal and Power Wires provides high heat-resistance and flexibility.
-Ultra-Small / Ultra-Light footprint.
Package included:
1x F4 V6PRO 48CH 0/25/100/200/400/600mW VTX SMA/ RP-SMA connector
4x T-Rex 35AMP ESC BLHeli_32
