Description

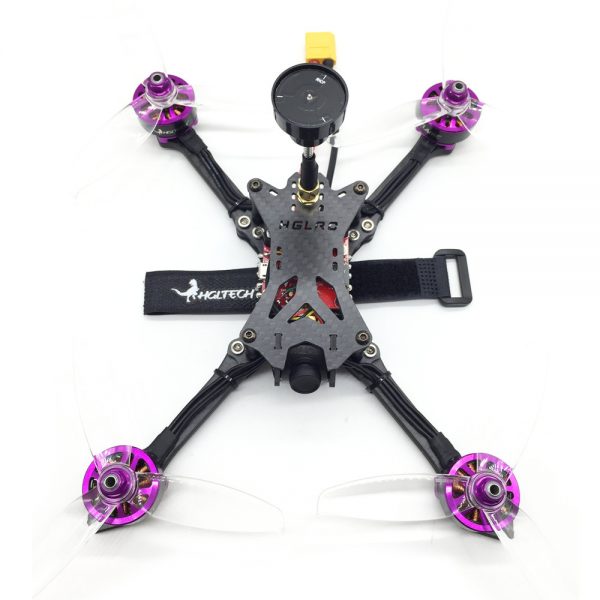

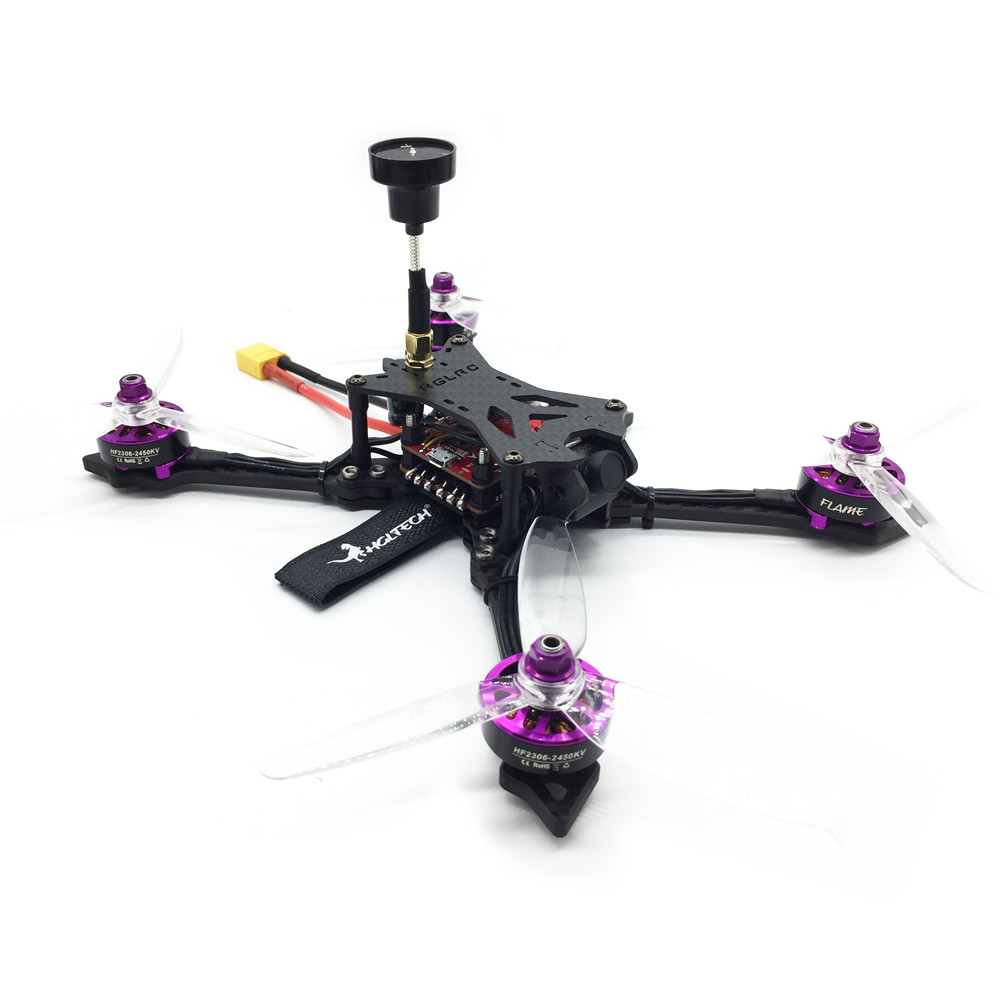

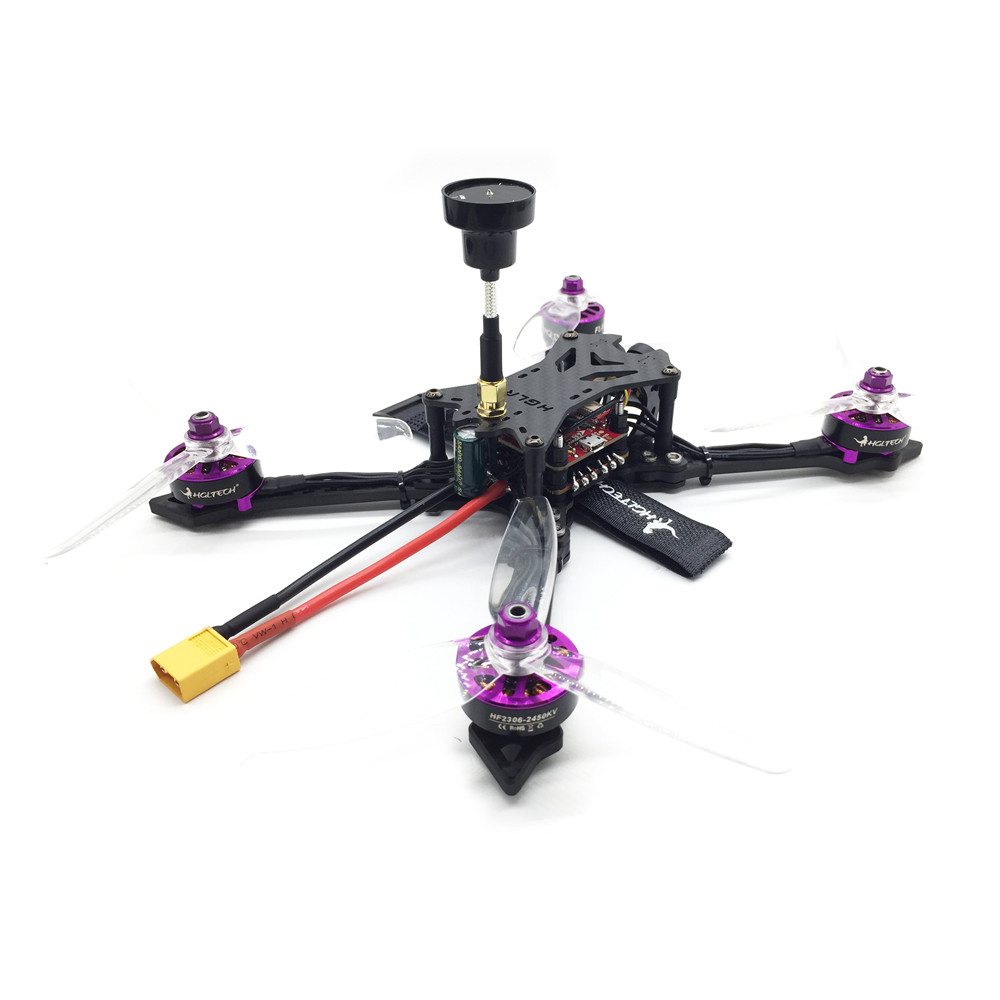

HGLRC Batman220 220mm Airbus F4 OSD FPV Racing Drone w/ 60A BL_32 ESC Frsky XM+ RX BNF
Notice: Will send Upgrade Version from July 24th.
1. The color of 2306 motors were changed in Red.
2. FPV Camera is new Aurora V2 1200TVL Camera in Red.
3. FPV Transmitter is new HGLRC Foward VTX
4. Propellers' color is black.
Specification:
Brand Name: HGLRC
Model: Batman220
Item Name: 220mm F4 5.8G FPV Racer
Wheelbase: 220mm
Arm Plate Thickness: 5mm
Bottom Plate Thickness: 2mm
Material: Carbon Fiber
Drone Version: BNF ( With Frsky XM+ Receiver & Without Battery)
Net Weight: about 306.3g
Drone Version: BNF ( With Frsky XM+ Receiver & Without Battery)
Net Weight: about 306.3g
| Flight Controller | HGLRC F460 Flytower Spare Part FC Item Name: AIRBUS F4 OSD FC (D-Shot Version) MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K
Black Box: Flash 16M
Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 36x36mm
Mounting Hole: 30.5×30.5 ( M3) Weight: 8.3g
Support SBUS/PPM/DSMX receiver
|
| Brushless ESC | HGLRC F460 Flytower Spare Part ESC Item Name: 60A BLHeli_32 3-6S 4 In 1 ESC Input Voltage: 3-6S Lipo battery
Con. Current: 60A-4S / 50A-5S / 40A-6S
Peak Current: 70A
BEC Ouput: NO
Firmware: 32bit ESC with BLHELI_32 firmware
Size: 36x36mm (main board )
40x48mm ( including pad) Mounting Hole: 30.5×30.5mm, M3
Weight: 12.9g
CPU: STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol: DSHOT1200/600/300/150/Oneshot125/42 , MultiShotDamped
|
| FPV Transmitter |
Brand Name: HGLRC
Model: Forward VTX
Item Name: 5.8G 48CH 25/50/100/200/400mW FPV Transmitter
Output power: PIT/25mW/50mW/100mW/200mW/400mW switchable (max:240mA)
Control mode:BFOSD control(RX)/ button
Input: DC 7-28V,
BEC: 5V-1A
Video system: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
Size: 36mm×36mm×5mm,Hole:30.5*30.5mm
Weight: 5.2g
|
| Brushless Motor | Item Name: HGLRC HF2306 2450KV Motor Color: Red KV: 2450KV
Stator Diameter: 23mm
Stator Thickness: 6mm
No.of Stator Arms: 12S
No.of Rotor poles:14P
No-load Current(A/10V):1.6A
Motor Resistance:49mΩ
Max Continuous Current:41.4A
Max Continuous Power:660W
Weight:32g
Rotor Diameter:28.72mm
Shaft Diameter:5mm
Body Length:16.1mm
Overall shaft Length:29.7mm
No.of Cells(Lipo):4S~5S
Wire type:20AWG 110mm
|
| FPV Camera |
Model: HGLRC Aurora V2 1200TVL FPV Camera
Color: Red
Image Sensor:1/2.7 " 1200TVL CMOS
TV System: PAL/NTSC Switchable
Lente:2.1mm
S/N: > 50dB
Min. illumination: Color: 0. 05Lux; BW: 0.001Lux(F1.2,50IRE,AGC ON)
WDR: Support
Lanuage: Chinese/English/Italian/Russian
OSD programming board: Support
Input Power: DC 5V-30V
Working Temperature:-10℃ ~50℃
Storage Temperature: -40℃ ~60℃
Dimensions:19mm*19mm*27mm
Net weight:8.9g
|
| Propeller | Item Name: HGLRC 5042 5 Inch 3-Blade Propeller Color: Black Quantity: 3 CW & 3 CCW |
| Receiver | Item Name: Frsky XM+ Receiver CH: Up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC) Operating Voltage Range: 3.7~10V Operating Current: 30mA @5V Operating Range: Full range With RSSI output on board: Analog 0~3.3V Firmware Upgradeable Version: International Version Compatibility: FrSky D16 mode Dimension: 21.5*12*3.5mm(L x W x H) Weight: 1.6g |
Package Included:
1x HGLRC Batman220 F4 FPV Drone ( BNF Version)
1x Battery Strap
1x HGLRC Pagoda 5.8G 5dBi RHCP Antenna
