Description

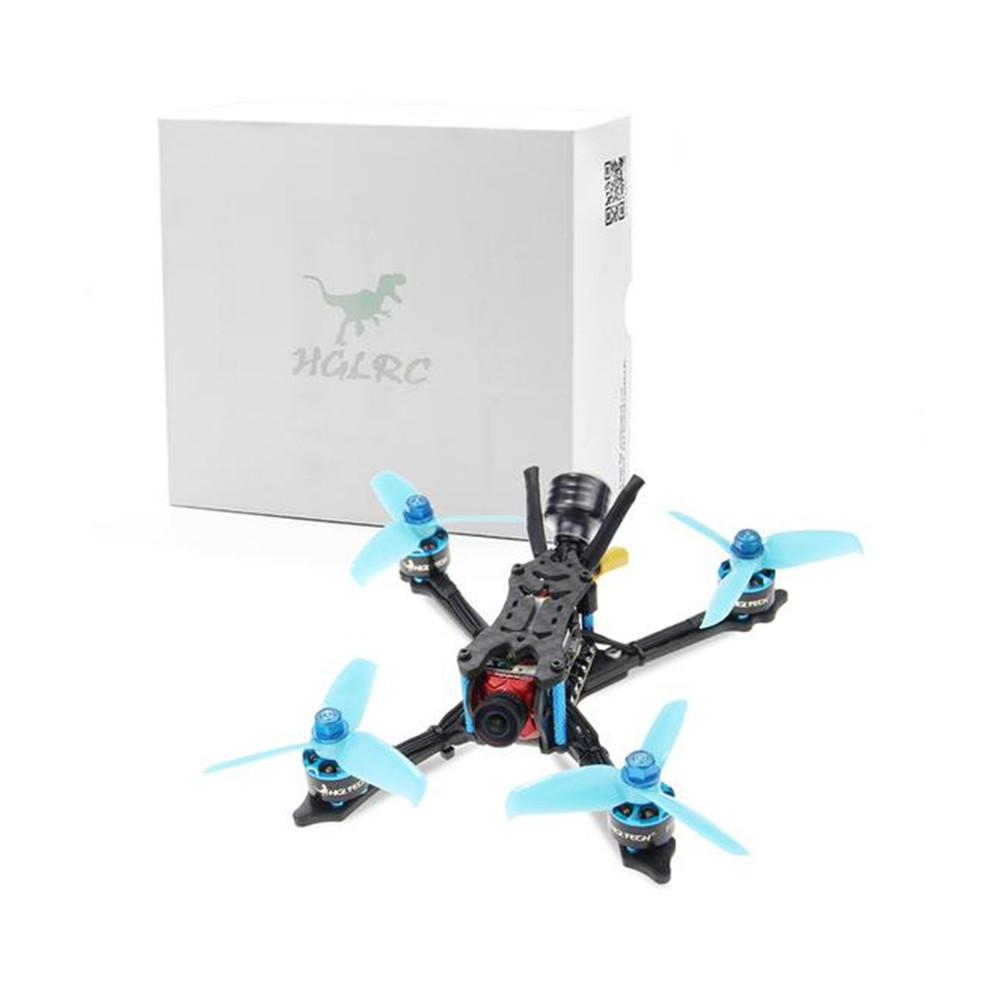

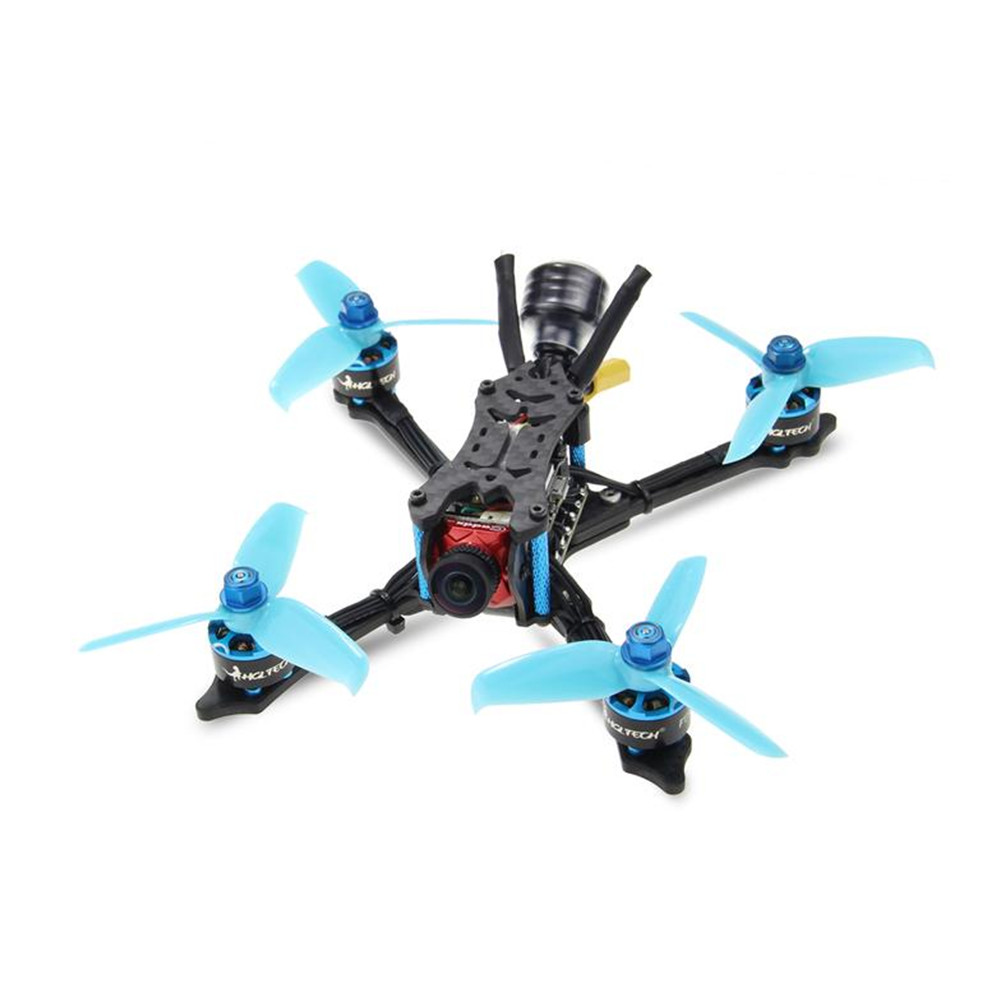

HGLRC Arrow 3 152mm F4 OSD 3 Inch 4S 6S FPV Racing Drone PNP BNF w/ 45A ESC Caddx Ratel Camera
Specification:
Brand Name: HGLRC
Model: Arrow 3
Item Name: 152mm 3 Inch F4 OSD FPV Racing Drone
Drone Wheelbase: 152mm
Material: Carbon Fiber
Input Voltage: 4S / 6S ( Optional)
Version: without Receiver / Frsky XM+ Receiver/ Flysky A8S V2 Receiver (Optional)
Weight: about 150g ( Not Include battery for all version )
| Forward F4 Mini Flight Controller |
CPU: STM32F405R6T6
MPU: MPU6000-SPI
Input Voltage: 2-6S Lipo
Firmware: Betaflight OMNIBUSF4V6
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25.0×25.0mm board, 20.0mm mounting holes (M2)
Weight:4.7g
|
| Forward 45A 4in1 Mini ESC |
CPU:STM32F051
Input Voltage: 2-6S Lipo battery
Constant Current: 45A-4S/35A-6S
Peak Current: 55A(5s)
Firmware:BLHELI_32
Size: 31.7×36.5mm
Installing Hole:20x20mm,M2
Weight: 10.8g
|
| Forward 1408 2400KV / 3600KV Motor | 4S Version: 3600KV Stator Diameter:14mm Stator Thickness:8mm No.of Stator Arms:9S No.of Rotor poles:12P No-load Current(A/10V):1.5A Motor Resistance:90-108mΩ Max Continuous Current:22.43A No.of Cells(Lipo):3-4S Wire type:24AWG 80mm Weight:16.8g |
| 6S Version: 2400KV
Stator Diameter: 14mm
Stator Thickness: 8mm
No.of Stator Arms: 9S
No.of Rotor poles:12P
Weight:16.7g
No.of Cells(Lipo):5-6S
|
|
| Gemfan 3052 3 Inch 3-Blade Propeller | Color: blue Quantity: 3 CW & 3 CCW |
| HGLRC XJB TX20.V2 Mini FPV Transmitter | Item Name: 5.8G 48CH 25/100/200/350mW VTX Output power: PIT/25mW/100mW/200mW/350mW switchable Control mode: BFOSD control(RX)/button BAT: 7-26V, BEC 5V-1A 240mA—-350mW Video system: NTSC/PAL Antenna: IPEX Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ Size: 24*24mm(L*W),Hole:20*20mm Weight: 2.5g |
| Caddx Ratel Camera 1200TVL Camera |
Color: Red,
Lens: 1.66mm
Image Sensor: 1/1.8" Inch starlight HDR sensor
Horizontal Resolution: 1200TVL
FOV: 180 Degree
Min. Latency: 8ms
TV System: NTSC & PAL (changeable)
Image: 16:9 & 4:3 (changeable)
WDR: Super WDR (HDR)
Min. Illumination: Starlight
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Camera OSD: Separate OSD
DNR: 3-DNR
Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
Day/Night: Auto/Color/B&W/EXT
Dimensions: 19mm*19mm*19mm
Wide Power Input: DC 5-40V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Net Weight: 8g
|
| Receiver | PNP Version: Without Receiver Frsky XM+ Receiver Version: with Frsky XM+ Receiver FS-A8S V2 Receiver Version: with Flysky A8S V2 Receiver |
Package Included:
1x HGLRC Arrow 3 3 Inch FPV Racing Drone
