Description
HGLRC 20x20mm FD445 Stack F4 OSD Flight Controller & 45A BL_32 ESC & 25/100/200/350mW VTX
Specificaiton:
Brand Name: HGLRC
Model: FD445 Stack
Item Name: F4 OSD Flight Controller & 45A ESC & Mini VTX Stack
Applicatiopn: for 110mm-1000mm Frame Kit
| Forward F4 MINI Flight Controller |
CPU: STM32F405R6T6
MPU: MPU6000-SPI
Input Voltage: 2-6S Lipo
Firmware: Betaflight OMNIBUSF4V6
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25.0×25.0mm board
Installing Hole:20x20mm,M2
Weight:4.7g
|
| Forward 45A 4in1 ESC |
CPU:STM32F051
Input Voltage: 2-6S Lipo battery
Constant Current: 45A-4S/35A-6S
Peak Current: 55A(5s)
BEC Ouput: NO
Firmware: BLHELI_32
Size: 31.7×36.5mm
Installing Hole:20x20mm,M2
Weight: 10.8g
|
| Forward VTX Mini |
Output Power: PIT/25mW/100mW/200mW/350mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 7-26V
BEC 5V-1A,250mA—-350mW Video System: NTSC/PAL
Antenna: MMCX
Size: 24*27mm(L*W),Hole:20*20mm
Weight: 2.7g
VTX Connector: SMA |

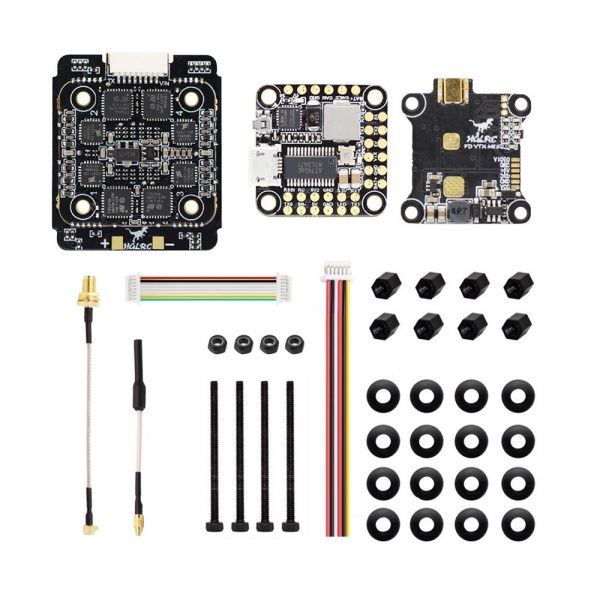

Package Included:
1x Forward F4 Mini Flight Control
1x Forward 45A 4in1 Mini ESC
1x Forward VTX Mini
1x Cable Set
