Description

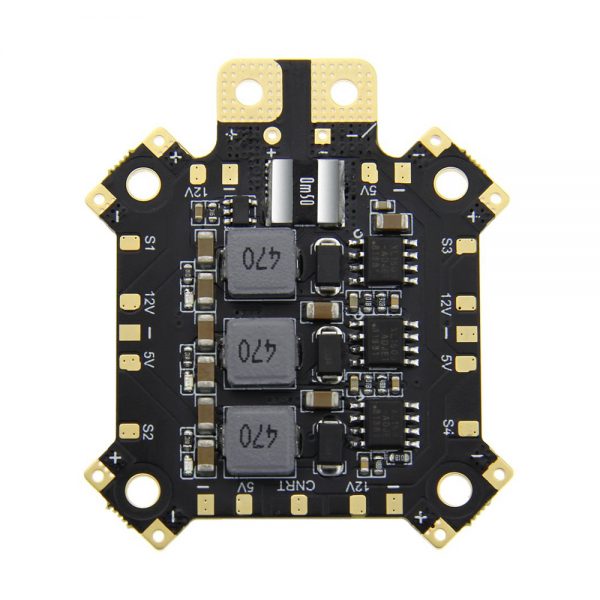

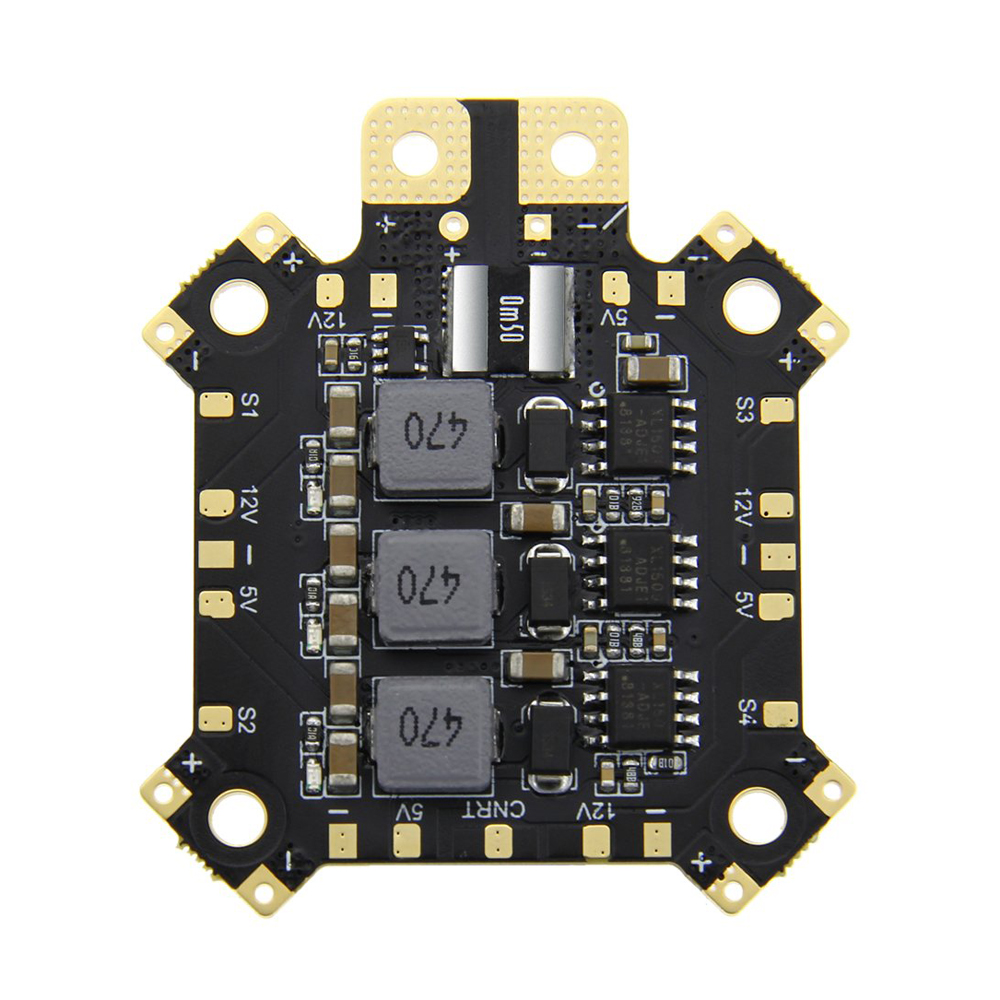

HGLRC 2-6S Power Distribution Board 5V/12V 3A BEC with Single Row LED Strip Built-in Current Sensor
Specification:
Brand name: HGLRC
Item name: 2-6S Power Distribution Board
Support voltage: 2-6S
2oz copper, 4-layers &1.6mm PCB.
Total 2 pairs ESC solder tabs are fit for H or X type frame 5V & 12V Output LED indicators
Built in current sensor
Four way LED socket
Four-way BEC 5V/3A
Four-way BEC 12V/3A
Dimensions: 42mm*50mm
Mounting: 30.5 x 30.5mm, Φ3mm
Weight: 13.3g
Package Included:
1 x 2-6S Power Distribution Board
