Description
Description:
| Basic information | Brand:HG Item No:P801 P802 Scale: 1/12 Color:yellow and army green Max speed:low speed 12km/h High speed:18km/h |
Power System | ESC: 320A esc Motor:550 brushed motor Servo: 2 copper gear 9KG digtial servo(high power steering) |
| Transmitter | Frequency: 2.4G Remote distance:≥ 100m |
Battery | Car Battery: 7.4V 3000mAh Lipo battery(not included) |
| Other | Material:hardware,zinc alloy,electronic and plastic | Dimension | Car size: 739.5×218.5×242.5mm Wheelbase:(128mm)×258mm×(128mm) Wheel margin: 218.5mm Wheel diameter: R111mm |
Main function:
Forward,backward,turn left/right,brake,every doors can be opened
Features:
Central transmission secondary mechanical gear position is adjustable (upgradable remote adjustment)

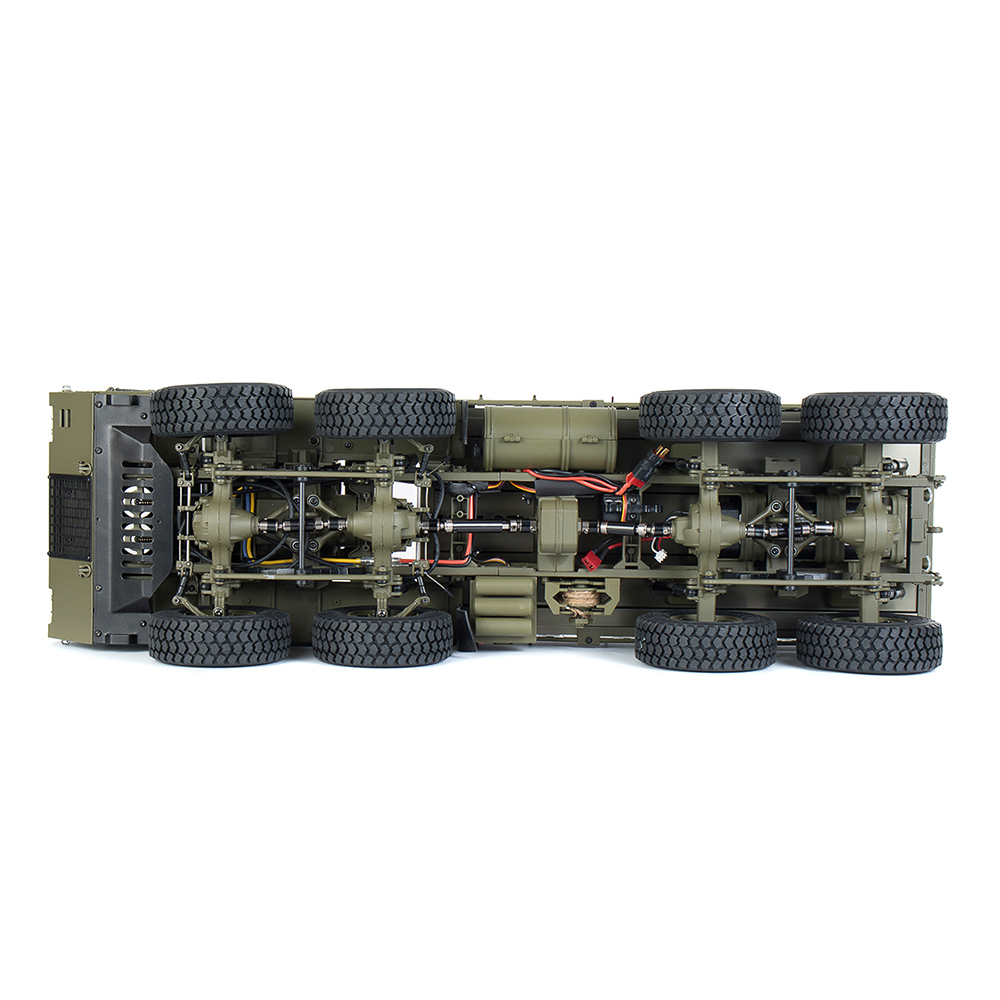

The chassis of the vehicle is made of zinc alloy
The front and rear axles adopt a conical gear to straight tooth high-load reduction transmission structure
Spring steel plate shock absorber + telescopic double shock absorption
Variable stroke ball type universal joint shaft
Front and rear independent link type bridge system
8 rounds full-time drive, large traction can pull all kinds of equipment
Steering gear control disc can be freely disassembled
1/12 full scale rc car model
The first 4 wheels adopt the wire rope pulling structure to realize the four-wheel synchronous steering
3.Charger:B3 charger
4.Battery:product id:1432831
For the motor and esc,you can click here to buy
For the charger,you can click here to buy
For more original spare parts,plese click here
Package included:
1X Rc Car(do not include the car battery)
1X Transmitter
1X Manual
1X Sticker
1X 1.5mm Hex Driver
1X 2.0mm Hex Wrench
1X 2.5mm Hex Wrench
1X Cross wrench (small)
1X Beam latch
1X Small Wrench
2X M4 flange nylon locknut
2X M4*4 drill screw
4X HM2*6mm screw
2X HM2*10mm screw
4X Nylon cable tie 3*200mm
12X Body side panel hook
24X Canopy limiter
4X Traction hooks at both ends
4X M2 Screws
4X Fender (L) and Fender (R)
2X Reflector (L) and reflector(R)
