Description:
Item Name: Heli-Nation Ta.lon F7 Upgrade Flight Controller
Size: 20*20mm
Version: MPU6000/ FUSION (Optional)
Item Name: Heli-Nation Ta.lon F7 Upgrade Flight Controller
Size: 20*20mm
Version: MPU6000/ FUSION (Optional)

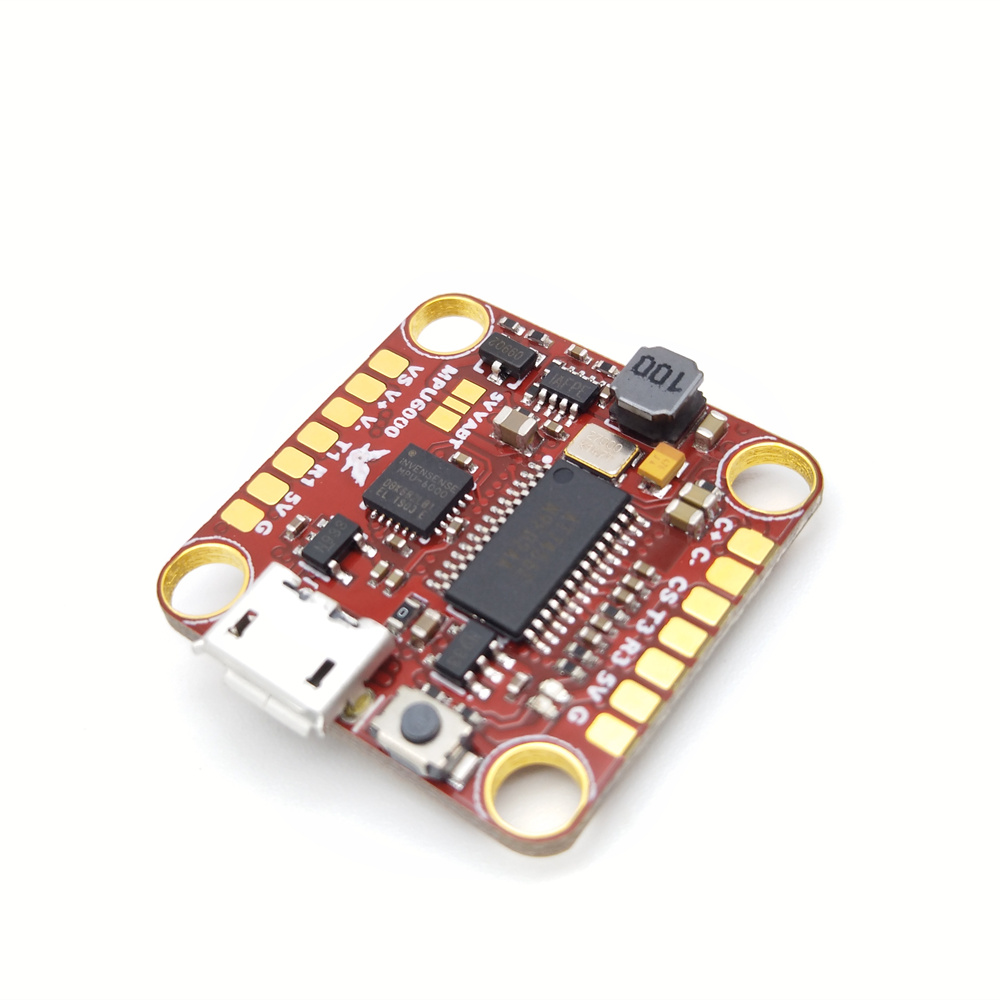

TA LON F7 MPU6000
1.MCU:STEM32F722RET6 216MHz
1.Pro.ven noise free MPU6000
3.Build in Beta flight OSD
4.Up to 8s(36V) direct battery power
5.Buzzer pads for external buzzer
6.Build in voltage monitoring resistor
7.5V 2A BEC
8.Dedicated LDO for Gy.ro,noise free gyro power
9.Dedicated LDO for OSD, cleaner OSD signal
10.Led strip share 5V with 5V/2A BEC
11.6 UARTS:UART1,UART2,UART3,UART4,UART5,UART6
12.Build in camera control pin with resistor and capacitor
13.5 Full UARTS with RX and TX pins
14.Logical Pin layout for cleanest build possible
15.8 pin 4 In 1 ESC plug
16.Remapable LEDS Pad for additional Motor output
17.TX3,RX3 can be used for 12C for external compass
18.5V,VBAT selectable VTX and CAM power
19.16M Blackbox flash chip
20.None flicker VTX pit mode switch(positive switch)
21.20×20 mounting hole with ture 25mm board dimensions
22.Includes *3 pin connector harness cables for direct pin to Aikon AK32PIN,Spedix GS25A,and Airbot Ori32,8 gromments,M3 to M2 nut adapters, M3X5 standoffs
23.Betaflight target:CLRACINGF7

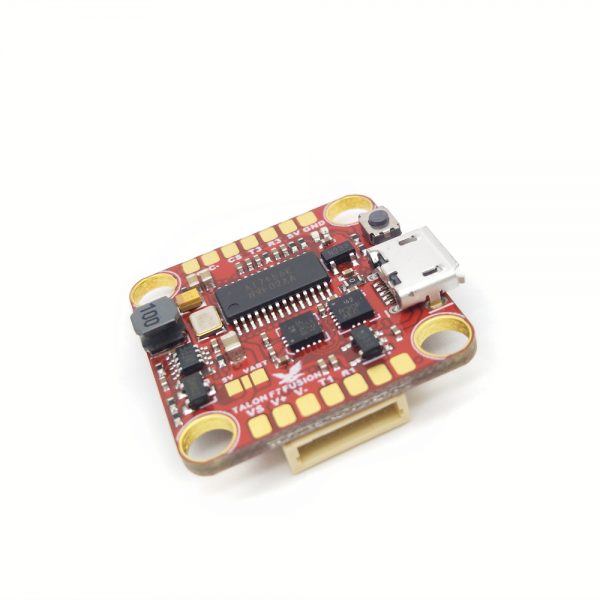

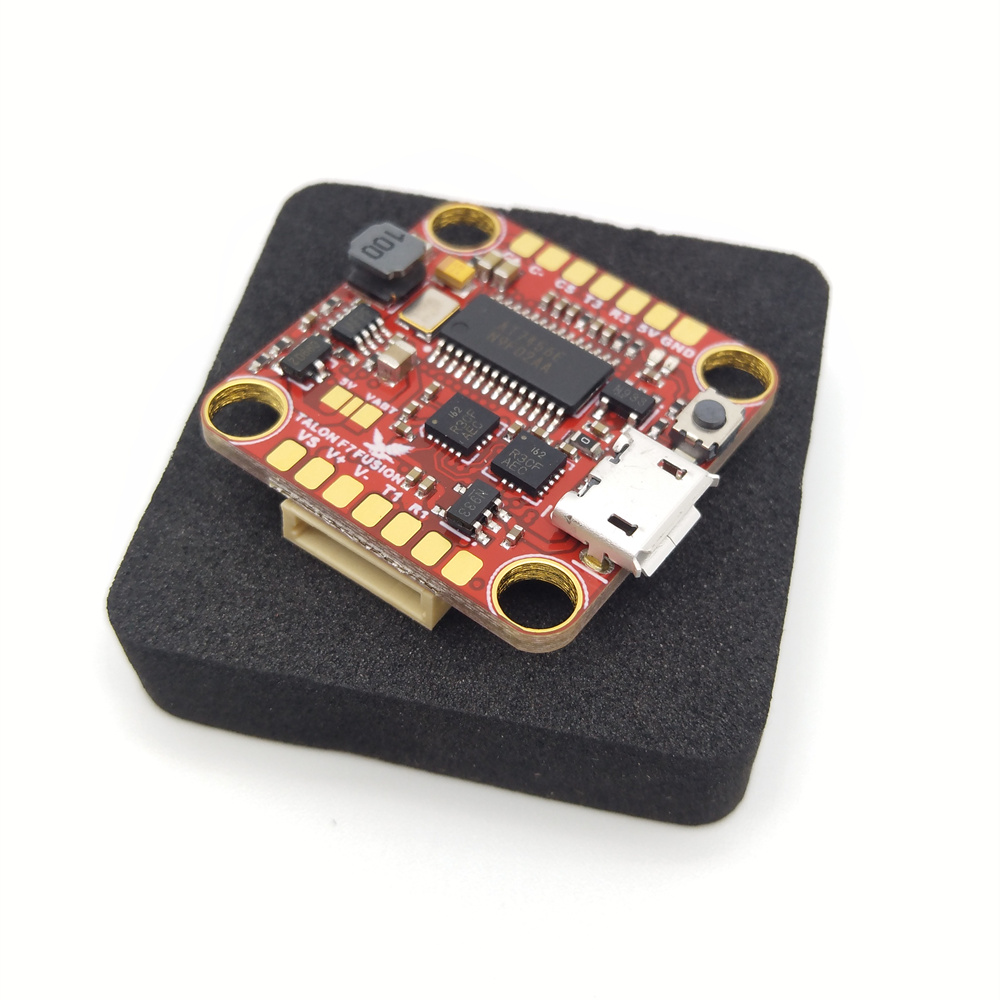

TA LON F7 FUSION
1.MCU:STEM32F722RET6 216MHz
1.2xICM20602 GYROS 90 degp0068ase
3.Build in Beta flight OSD
4.Up to 8s(36V) direct battery power
5.Buzzer pads for external buzzer
6.Build in voltage monitoring resistor
7.5V 2A BEC
8.Dedicated LDO for Gyro,noise free gyro power
9.Dedicated LDO for OSD, cleaner OSD signal
10.Led strip share 5V with 5V/2A BEC
11.6 UARTS:UART1,UART2,UART3,UART4,UART5,UART6
12.Build in camera control pin with resistor and capacitor
13.5 Full UARTS with RX and TX pins
14.Logical Pin layout for cleanest build possible
15.8 pin 4 In 1 ESC plug
16.Remapable LEDS Pad for additional Motor output
17.TX3,RX3 can be used for 12C for external compass
18.5V,VBAT selectable VTX and CAM power
19.16M Blackbox flash chip
20.None flicker VTX pit mode switch(positive switch)
21.20×20 mounting hole with ture 25mm board dimensions
22.Includes *3 pin connector harness cables for direct pin to Aikon AK32PIN,Spedix GS25A,and Airbot Ori32,8 gromments,M3 to M2 nut adapters, M3X5 standoffs
23.Betaflight target:CLRACINGF7
Packaeg Included:
1 X Heli-Nation Ta lon F7 Upgrade Flight Controller
