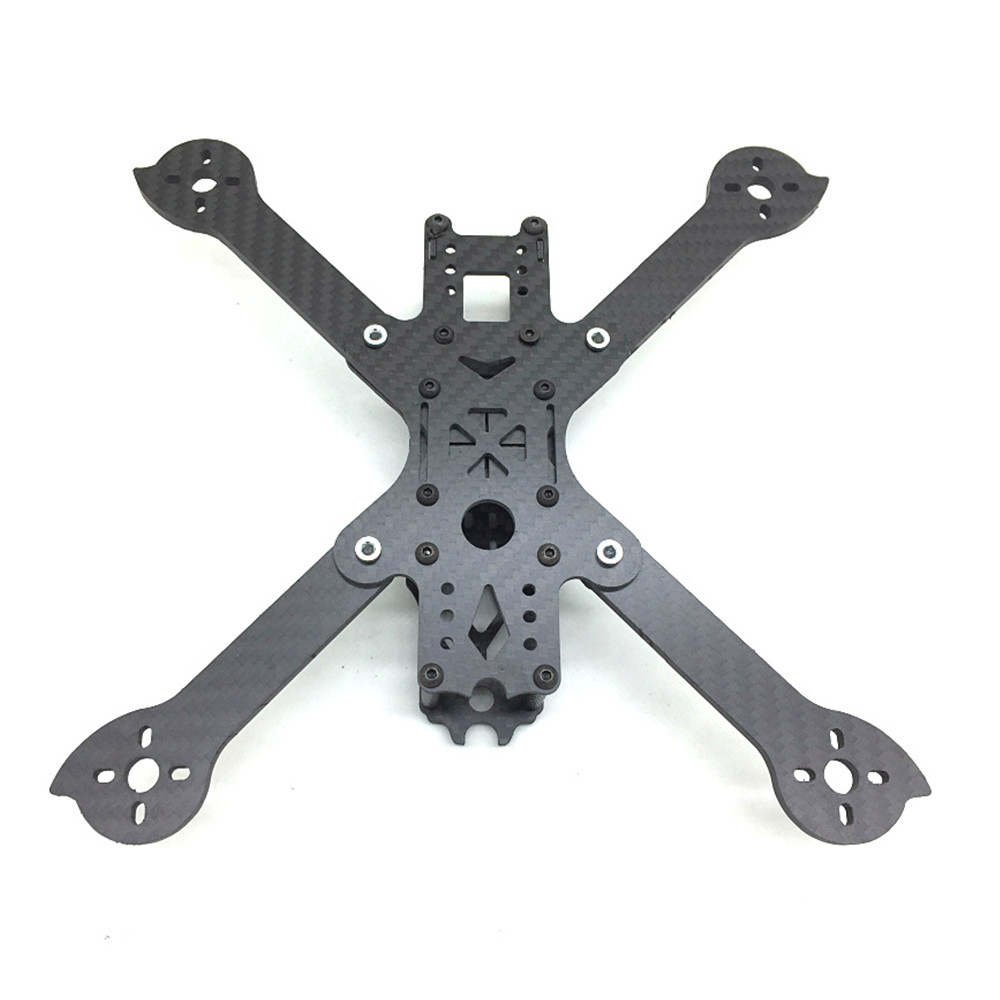

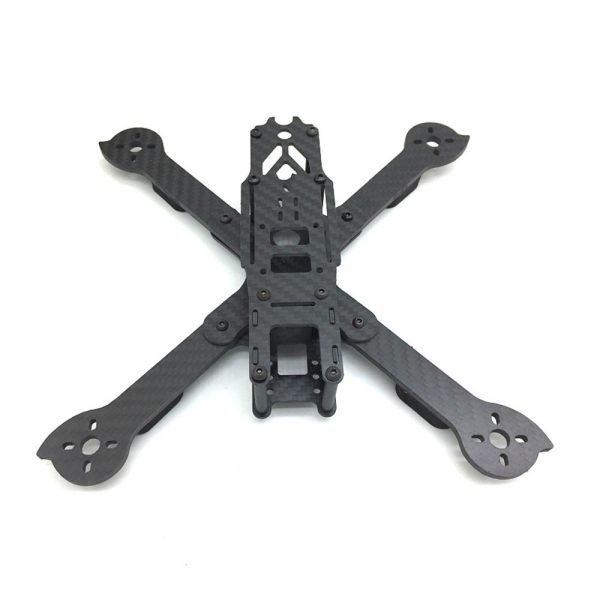

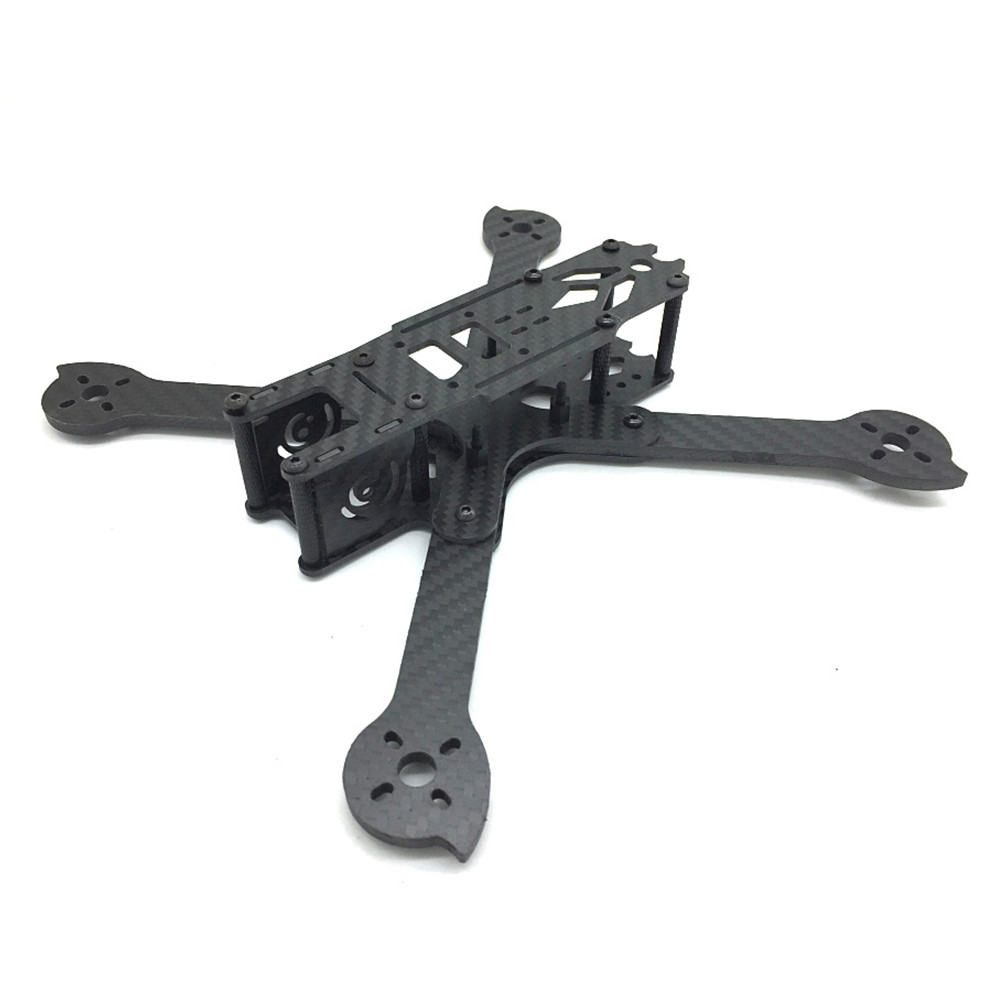

Hecate5′ 5 Inch 230mm Wheelbase 4mm Arm Thickness Carbon Fiber Frame Kit for RC Drone FPV Racing

$21.27

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

Hecate5' 5 Inch 230mm Wheelbase 4mm Arm Thickness Carbon Fiber Frame Kit for RC Drone FPV Racing

Specification:
Model: Hecate'5
Item Name: 230mm Racing Frame Kit
Wheelbase: 230mm
Arm Plate Thickness: 4mm
Side Plate Thickness: 1.5mm
Other Plate Thickness: 2mm
Material: 3K Carbon Fiber
Weight: 112g
Camera Mounting Width: 28mm

Recommend Parts:
Flight Controller: 30.5×30.5mm Flight Controller
Brushless ESC: 30.5×30.5mm 20-30A 4in1 ESC
Brushless Motor: 22XX Series Motor
Propeller: 5 Inch
Camera Mounting Width: 28mm

The following parts are suitable: ( Not Included)
Flight Controller: DYS F4 Pro V2  FC AIO OSD BEC & Current Sensor
                           Omnibus F4 FC AIO OSD BEC Current Sensor

Brushless ESC: DYS F30A BL_S BB2 DSshot600 ESC  w/ 5V 12V BEC
                          Racerstar 20A BL_S 2-4S DShot300 4in1 Brushless ESC

Brushless Motor: Racerstar BR2205 2300KV 2-4S Brushless ESC

Propeller: Kingkong 5045 5 Inch 3-Blade Propeller 10 CW & 10 CCW

Lipo Battery: 3S Lipo Battery   /   4S Lipo Battery

Pacakge Included:
1x Hecate'5 230mm Frame Kit
