Description

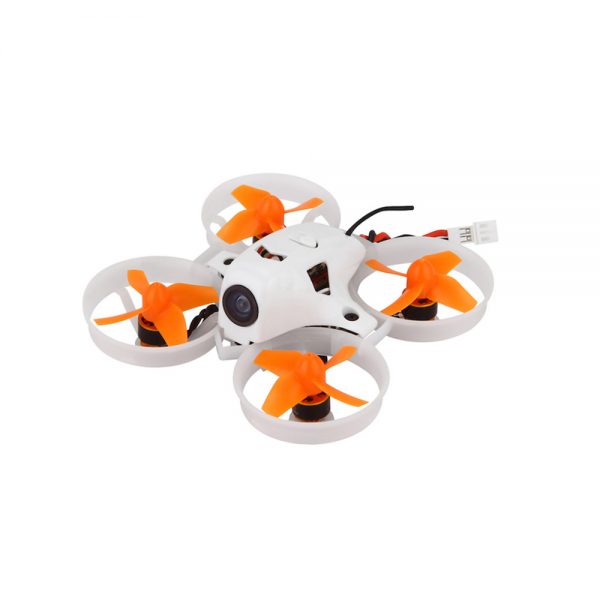

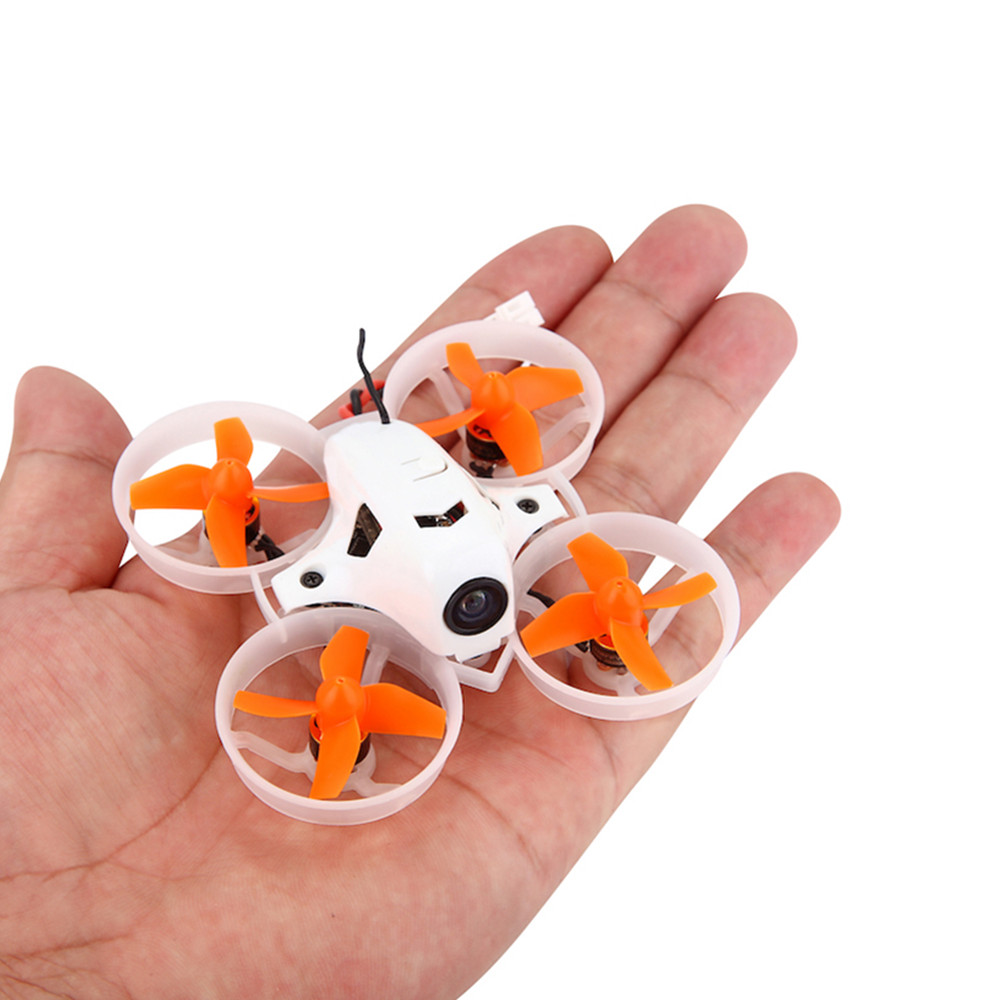

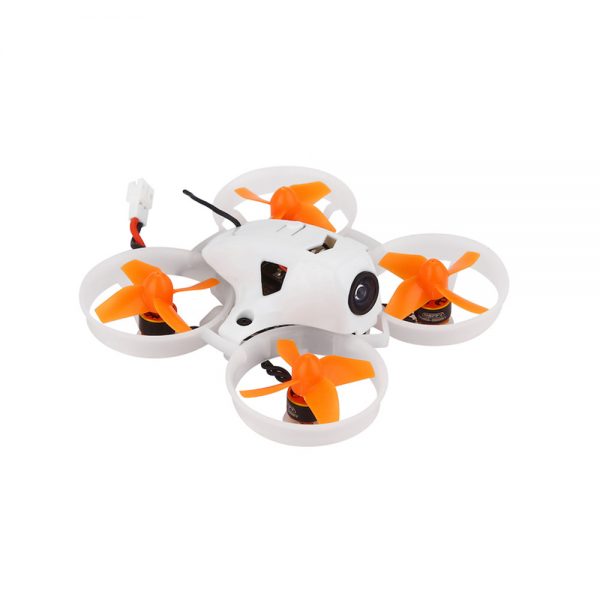

HB65S 65mm 1S Brushless RC FPV Racing Drone PNP BNF F3 OSD 25mW 800TVL 0603 20000KV Motor
Specification:
Item name: HB65S 65mm 1S FPV racing drone
Wheelbase: 65mm
Frame structure: true X
Weight: about 22g (without battery)
Recommed flight weight: <30g (with battery)
Flight time: 2-4mins (260mAh)
Flight controller: F3, built-in OSD
ESC: 1S 5A 4in1 Dshot
Motor: 0603 20000KV
Propeller: 31mm 4-blade 1.0mm mounting hole (2pairs: orange)
VTX+camera: 25mW 800TVL 150°
battery: 1S 260mAh 30C HV
Receiver: without receiver/ DSMX/ FrSky D8/ FS-RX2A/ SFHSS+D16 receiver(option)
F3 OSD flight controller:
Item name: BF3-OSD-1S
Board size: 28*28mm
Mounting hole: 36*36mm, 2.5mm hole diameter
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: SPI sensor MPU-6000
Firmware: Betaflight_3.2.x_OMNIBUS
Power supply: 1S
Built-in 5V/0.5A BEC
Built-in BF OSD
Built-in LC filter
Support programmable LED
Supports BLheli suite ESC programme
With buzzer port
5A 4in1 Dshot ESC:
Item name: BS5A
Size: 28*28mm
Mounting hole: 36*36mm, 2.5mm hole diameter
Firmware: BLHeli_S 16.6
Continuous current: 5A
Burst current: 6A (5s)
Power supply: 1S lipo(3.3-4.35V)
Support Dshot150/300/600, PWM, Oneshot125, Multishot
0603 20000KV motor:
Item name: HBFPV 0603
KV: 20000KV
Stator diameter: 6mm
Stator height: 3mm
Shaft diameter: 1mm
Working voltage: 1S(3.0-4.35V)
Max thrust: 24g
Weight: 1.6g
VTX+camera:
Item name: 199C
Output power: 25mW
Lens: HD800TVL/FOV: 150°
Channel: 16CH/ 48CH(button switching)
Antenna: hose antenna
Battery:
Capacity: 260mAh
Voltage: 1S, 3.8-4.35V(HV)
Continuous Discharge Rate: 30C/60C
Connector: PH2.0-2P
Weight: about 6.9-7g
Package included:
PNP version:
1x HB65S frame kit
1x 0603 20000KV motor
1x F3 OSD+5A 4in1 fytower
1x 25mW AIO camera VTX
1x 260mAh 30C HV battery
2x pairs 31mm 4-blade orange propeller
1x 1S HV charger
1x mini screwdriver
1x propeller puller
BNF version:
1x HB65S frame kit
1x 0603 20000KV motor
1x F3 OSD+5A 4in1 fytower
1x 25mW AIO camera VTX
1x 260mAh 30C HV battery
1x DSMX/ FrSky D8/ FS-RX2A/ SFHSS+D16 receiver(option)
2x pairs 31mm 4-blade orange propeller
1x 1S HV charger
1x mini screwdriver
1x propeller puller
