Description
Description:
| LED Screen | Display resolution | 800×480 |
| Backlight | LED | |
| Brightness | 700 Lux | |
| Aspect ratio | 16:9 | |
| Response time | 10ms | |
| Color sytem | PAL/NTSC | |
| Input | Signal | Video (PAL/NTSC) |
| Output | Signal | Video (PAL/NTSC) |
| Specification | Monitor size | 128.5mmx83.5mmx14mm |
| Gross weight | 120g | |
| 5.8G Sensitivity | -94dB | |
| Matching antenna interface | interface | RP-SMA |
| 5.8G | Sensitivity | -93db |
Features:
Specially designed for aerial photography system, Sharp Vision all-in-one monitor has the following features:
* High brightness: 700 Lux.
* Dual receiver: built-in receivers.
* No delay/anti blue screen/anti black screen: the system won't cause any delay in receiving signal; blue screen or black screen will definitely not occur.
* Auto/manual channel scan: no need for DIP switch.
Note: Three dispany resource types of this monitor are: FPV interface, Esternal video input interface.
Frequency Group Selection:
You can manually select the desired frequency from 6 groups: A, B, C, D, E and F, or select SCAN option to start auto search
Dual 5.8G receivers cover 48 channels:
| A | B | C | D | E | F | |
| 1 | 5.645G | 5.740G | 5.725G | 5.733G | 5.658G | 5.362G |
| 2 | 5.665G | 5.760G | 5.745G | 5.752G | 5.695G | 5.399G |
| 3 | 5.865G | 5.780G | 5.765G | 5.771G | 5.732G | 5.436G |
| 4 | 5.705G | 5.800G | 5.785G | 5.790G | 5.769G | 5.473G |
| 5 | 5.885G | 5.820G | 5.805G | 5.809G | 5.806G | 5.510G |
| 6 | 5.905G | 5.840G | 5.825G | 5.828G | 5.843G | 5.547G |
| 7 | 5.925G | 5.860G | 5.845G | 5.847G | 5.880G | 5.584G |
| 8 | 5.945G | 5.880G | 5.865G | 5.866G | 5.917G | 5.621G |

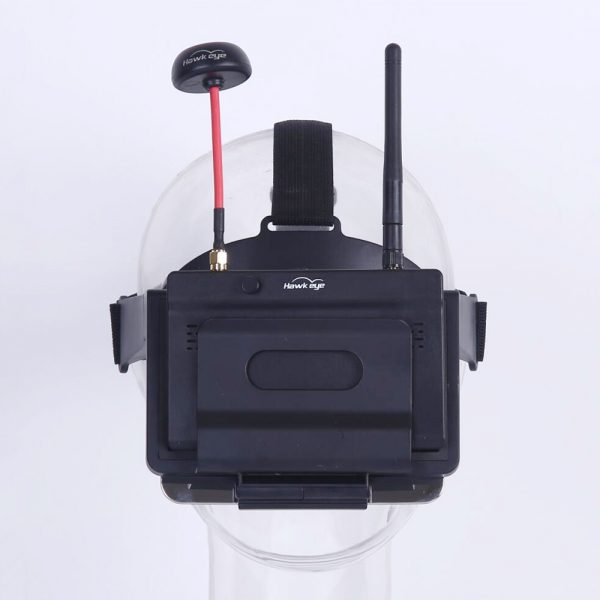

Hawkeye Little Pilot VR goggles Manual, click here

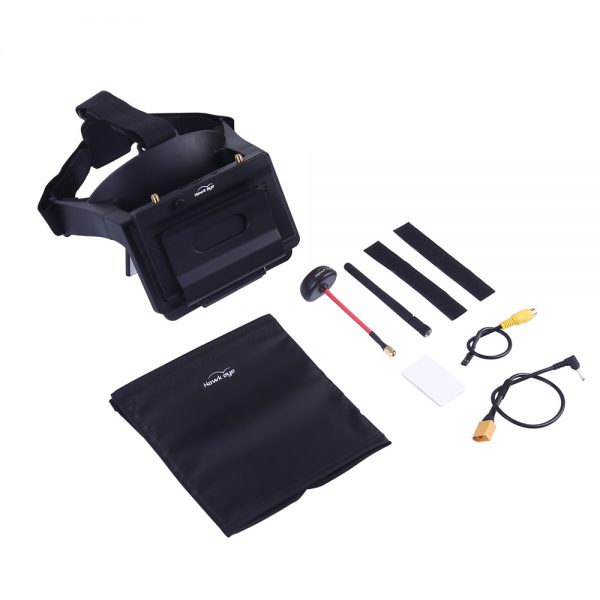

Package Included:
1x Hawkeye Little Pilot VR goggles
