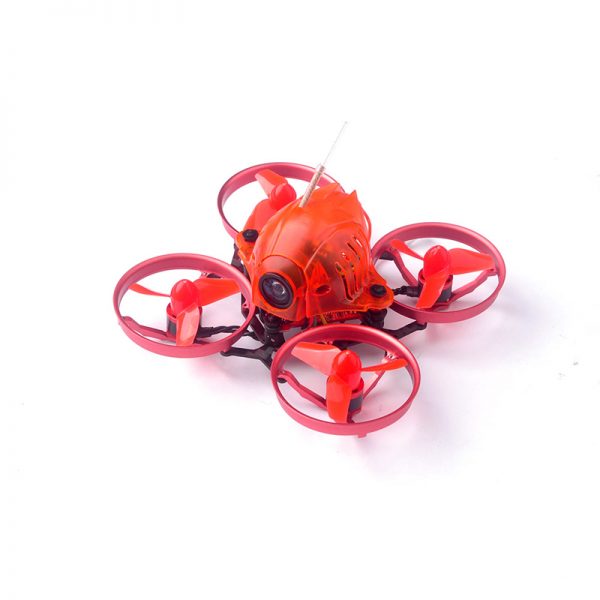

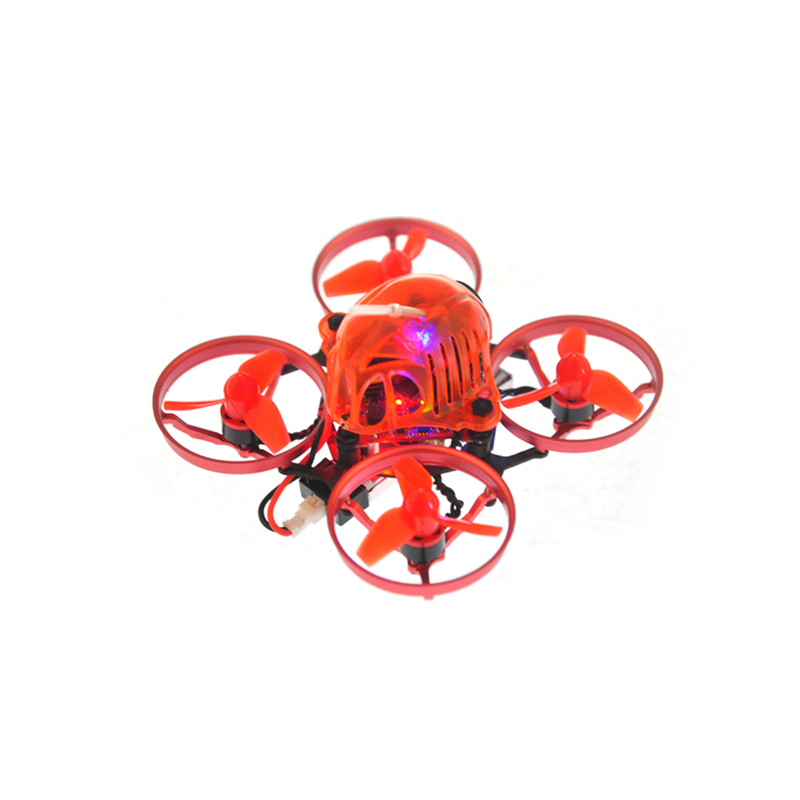

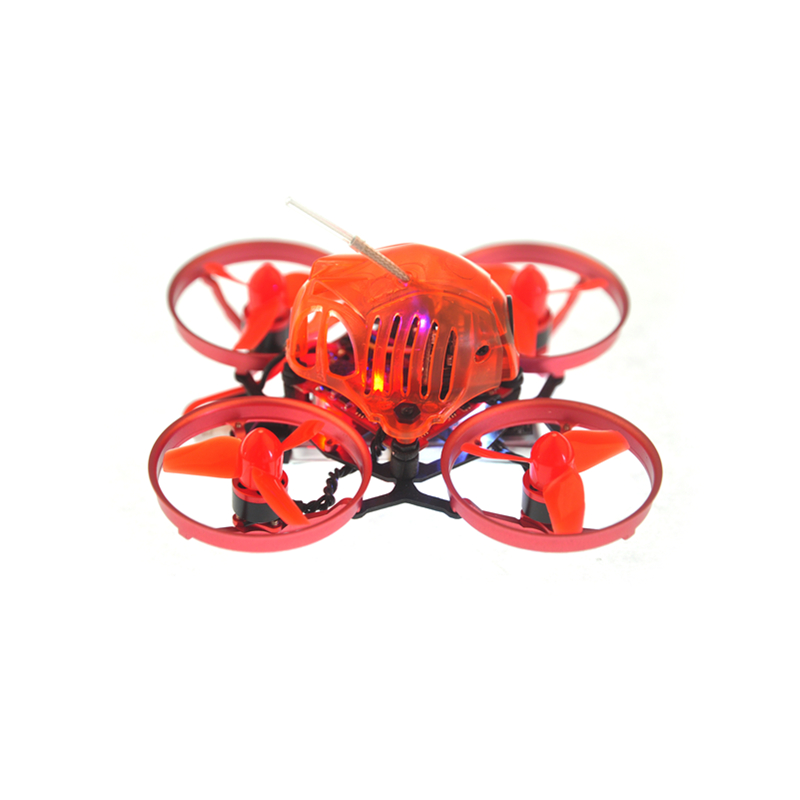

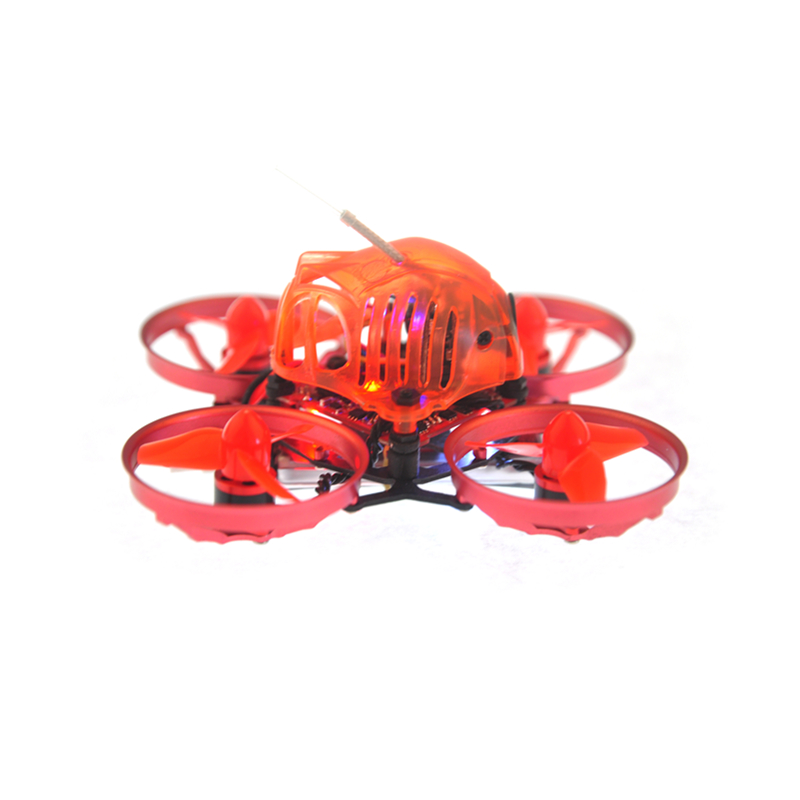

Happymodel Snapper6 65mm Micro 1S Brushless FPV Racing RC Drone w/ F3 OSD BLHeli_S 5A ESC BNF
Description:
Brand name: Happymodel
Item name: Snapper6 FPV racing Drone
Wheelbase: 65mm
Basic version: with one battery and one USB Lipo/LIHV charger
Standard version: with 3 batteries and one 1S06 6 way Lipo/LIHV charger
Receiver: Compatible Frsky receiver / Compatible Flysky Receiver / Compatible DSMX DSM2 Receiver
Size: 81mm*81mm*36mm
| Items | Specifications |
| SE0603 19000KV brushless motor |
Configu-ration: 9N12P
Stator diamter: 6mm
Stator length: 3mm
Shaft diameter: Φ0.8mm
Motor dimension(Dia.*Len): Φ9mm*15.5mm
Weight(g): 1.7g
No.of cells(Lipo): 1S
|
| Crazybee F3 flight controller |
Firmware: Betaflight_3.3.0_Crazybee
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Board weight: 3.5g
Power supply: 1S battery input (DC 3.5-4.35V)
Built-in 5A(each) Blheli_S 4 in 1 ESC Dshot600 ready
Built-in Frsky receiver with telemetry (D8/D16 switchable)
Built-in Betaflight OSD (SPI Control)
Built-in Current meter Max 14A
Built-in 5V 0.8A BEC with LC filter
Built-in voltage detection
BLHELI_S pass-through ready
Heading LED ready
|
| BLHeli_S 5A 4 in 1 ESC |
Power supply: 1S LiPo/LiPo HV (4.2v/4.35v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_L_5_REV16_6.HEX
Default protocol: DSHOT600
|
| Frsky receiver version |
SPI BUS receiver
Frsky D8/D16 switchable
Compatible both of Non EU and EU LBT transmitter
Channels: 8ch or 16ch
Failsafe support
No ground interference (Transmitter and receiver 1m from the ground): 300m
|
| Flysky receiver version |
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference (Transmitter and receiver 1m from the ground): 300m
Failsafe support
|
| AIO Camera & VTX |
Output power: 25mw
Frequency: 48CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Camera resolution: 700TVL
Field of view: 120°
Video format: NTSC
Antenna: RG178 antenna
Frequency: 5.8GHz 6 bands 48 channels
With raceband: 5474 5945 MHZ
Size: 13.9"12.0mm (L*W)
Weight: 3g
|
| 3.8V 250mAh Lipo battery |
Capacity: 250mAh
Voltage: 3.8V
Continuous discharge rate: 30C
Instantaneous discharge rate: 60C
Size: 55x12x7mm
Weight: 13.6g
Connector: PH2.0
|
Features:
Betaflight support, multi flight mode: ACRO/AIR/ANGLE.
Powerful brushless motor and smooth ESC.
CNC aluminum alloy propeller guard.
Betaflight OSD support, easy to get RSSI, voltage and other info from your goggles.
Adjust the settings and the PID of the flight controller via OSD.
Frsky version support both EU LBT and NON-EU Frsky transmitter.
Flysky version support both AFHDS and AFHDS-2A Protocol Flysky transmitter.
Full telemetry function ready.
Head lights ready.
Camera angle adjustable.
Real Bind and Fly version.
Snapper 6 65mm 1S FPV racing drone flysky BNF Manual
Snapper 6 65mm 1S FPV racing drone frsky BNF Manual
Package included:
Basic version
1 x Snapper 6 frame
1 x Crazybee F3 FC (Frsky and Flysky option)
4 x SE0603 KV19000 Motor
1 x 31mm 3-blades propeller set (4cw+4ccw)
1 x AIO camera & VTX
1 x 3.8V 250mah 30C/60C battery
1 x USB Lipo/LIHV charger
1 x Propeller disassemble tool
1 x Screwdriver
Standard version
1 x Snapper 6 frame
1 x Crazybee F3 FC (Frsky and Flysky option)
4 x SE0603 KV19000 Motor
1 x 31mm 3-blades propeller set (4cw+4ccw)
1 x AIO camera & VTX
3 x 3.8V 250mah 30C/60C battery
1 x 1S06 6 way Lipo/LIHV charger
1 x Propeller disassemble tool
1 x Screwdriver
,
,
,
,
,
,
,
,
