Description
Happymodel Sailfly-X 105mm Crazybee F4 PRO 2-3S Micro FPV Racing Drone PNP BNF w/ 700TVL Camera
Specificaiton:
Brand Name: Happymodel
Model: Sailfly-X
Item Name: 105mm Crazybee F4 PRO 2-3S Micro FPV Racing Drone
Version: PNP ( Without Receiver) / Compatible Frsky RX /
Compatible Flysky RX / Compatible DSM2/DSMX RX ( Optional)
– Frsky version support both NON-EU and EU-LBT Frsky transmitter
(EU-LBT need to update firmware to Betaflight 4.0( release date :2019-4-11)
– Flysky version support both AFHDS and AFHDS-2A protocol transmitter
– DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
– No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.
| Crazybee F4 PRO Flight Controller | (Frsky version) CRAZYBEE F4FR PRO V2.1 Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEE F4FS PRO V2.1 Firmware target: CrazybeeF4FS (DSM2/DSMX version) CRAZYBEE F4DX PRO V2.1 Firmware target: CrazybeeF4DX (No RX version) CRAZYBEE F4 PRO V2.1 Firmware target: CrazybeeF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 2-3S battery input (DC 7.4-13V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable) DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver No RX version need to add external Receiver Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A BEC with LC filter Built-in voltage detection |

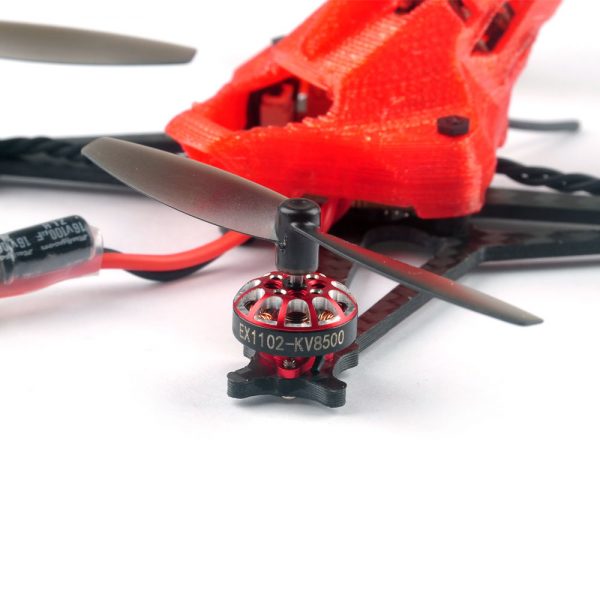

| EX1102 8500KV Motor |
Mode: EX1102 8500KV
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*16mm
Weight(g):2.8g
No.of Cells(Lipo):2S-3S
|
| Onboard 5A 4in1 ESC |
MCU upgraded to EFM8BB21
Power supply: 2-3S LiPo/LiPo HV (7.4v/13v)
Current: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600
|
| Onboard Frsky Receiver Version |
SPI BUS receiver
Frsky D8/D16 switchable
Compatible both Non EU and EU-LBT transmitter Channels: 8ch or 16ch
EU-LBT support(need to update betaflght v4.0 date 2019-04-11)
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
|
| Onboard Flysky receiver Version |
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
|
| Onboard DSM2/DSMX receiver version | Serial bus receiver Protocol: DSM2/DSMX compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| PNP Version ( Without Receiver) | No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc |
| 40CH 25mW VTX AIO 700TVL Camera | Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Camera resolution: 700TVL Field of view: 120° Video Format: NTSC Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready(Frsky EU-LBT and DSMX version not compatible) Size: 13.9"12.0mm ( L*W ) Weight: 3.2g |
| Lipo Battery ( All Version have) | Capacity:300mAh Voltage:11.4v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 65mmx18mmx11mm Weight: 25g Connector: XT30 |
Features:
Package Included:

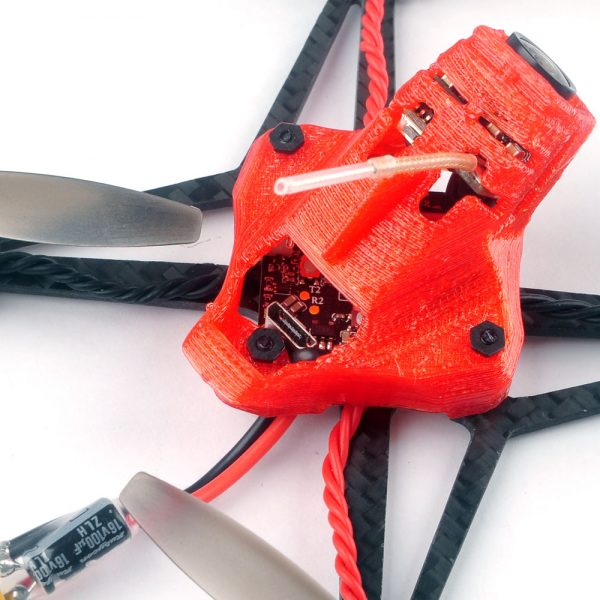

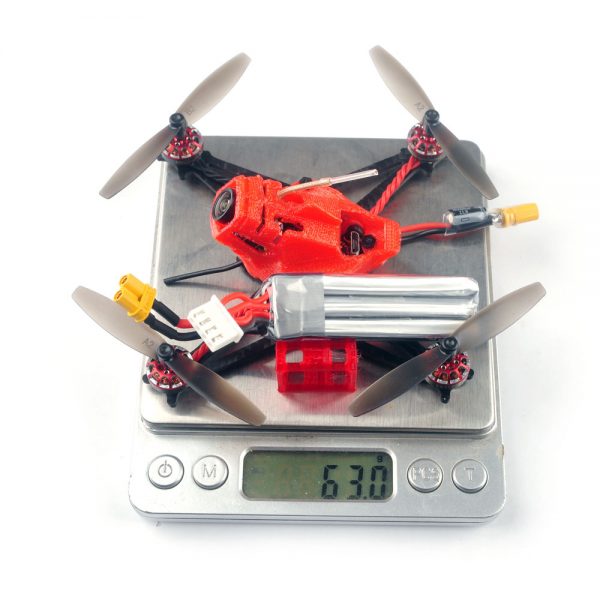

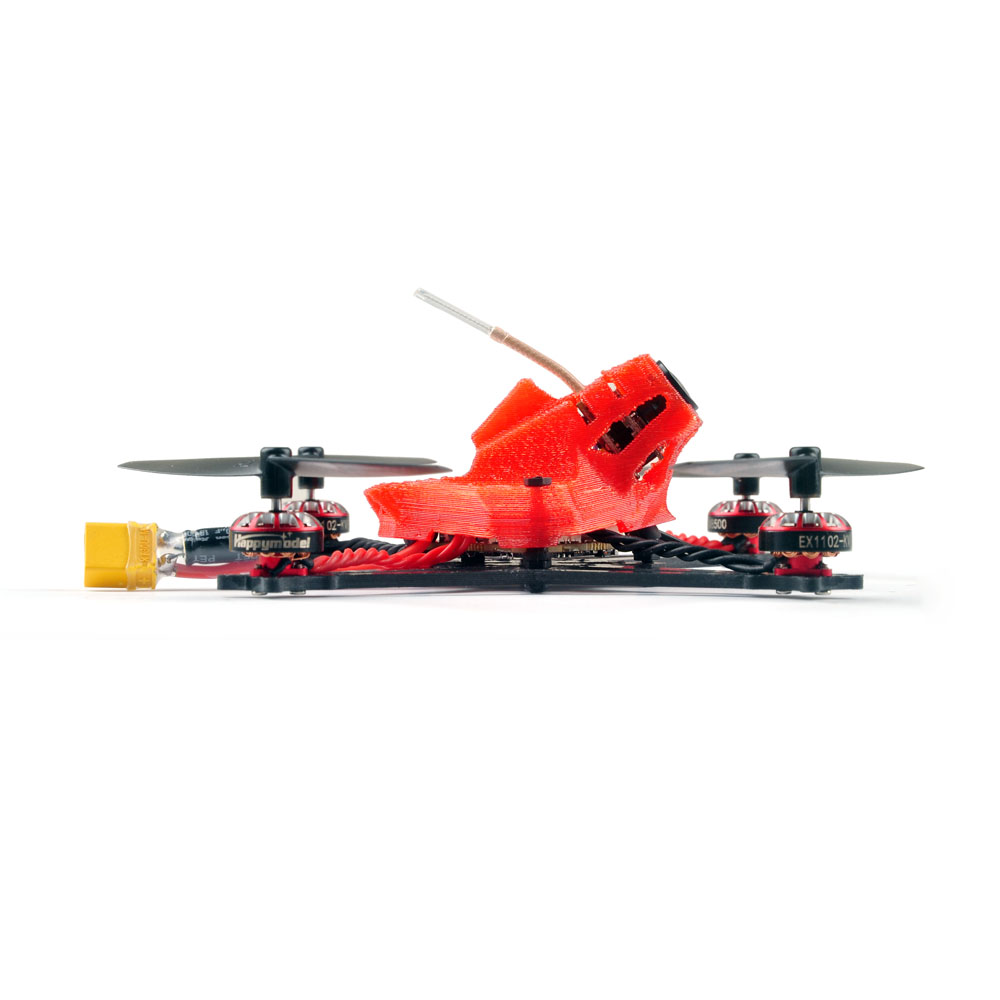

1x Sailfly-X FPV Racing Drone
1x 3D Printed 30 Degree Angle Canopy ( Red)
1x 3D Printed 40 Degree Angle Canopy ( Purple)
1x 3S 11.4v 300mah 30C/60C battery
1x Propeller disassemble tool
1x Screwdriver
