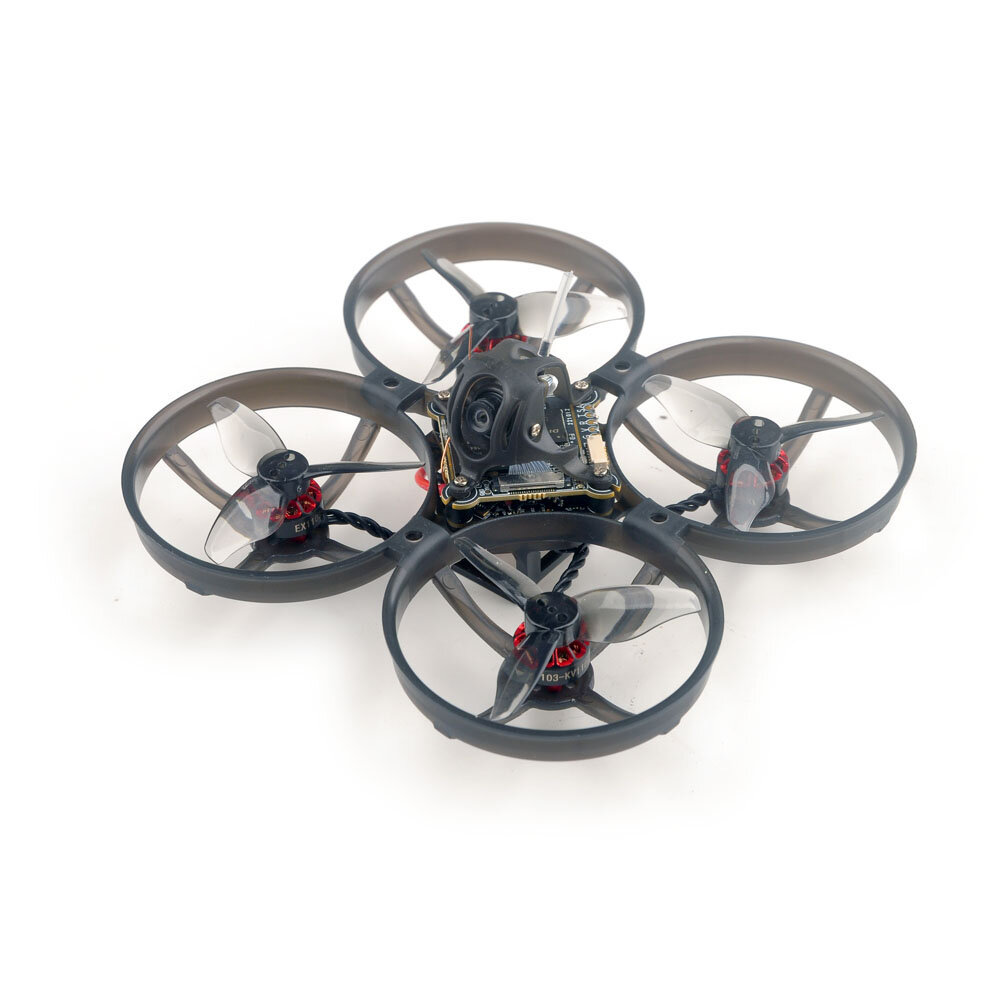

Happymodel Mobula8 Digital HD 2S 85mm Whoop FPV Racing Drone ELRS BNF with DJI O3 Air Unit / HDZero / Walksnial Digital System

Description

Notice: for DJI O3 and Lite for DJI O3 Version, now add TBS Receiver for option. ( DJI O3 + TBS / Lite for DJI O3+TBS)

Aug. 9th,2023

Version	Lite for DJI O3	DJI O3	HDZero	WalkSnail	Lite for DJI O3+TBS	DJI O3+TBS
Receiver	Onboard  UART ELRS RX  ELRS V3.0	Onboard  UART ELRS RX  ELRS V3.0	Onboard  UART ELRS RX  ELRS V3.0	Onboard  UART ELRS RX  ELRS V3.0	External  TBS CRSF Nano RX	External  TBS CRSF Nano RX

Specification:

The New Mobula8 Digital HD Micro FPV whoop comes with a new flight controller which is specific for Digital HD CINEWHOOP. Built in UART ExpressLRS receiver and 12A 4IN1 BLheli_S ESC.

The same Brushless motor and Gemfan 2023 propeller like the Mobula8 Analog version. Comes With DJI O3, Walksnail avatar and HDZERO VTX option. Smooth flight and High definition video transmission would bring us exited FPV experience.

Features:
Digital HD FPV experience
New CrazyF405 ELRS HD flight controller
Powerful and Smooth
UART ExpressLRS receiver
Built-in blackbox for Gyroflow and PID Tune

Motor	Mode: EX1103 11000KV Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S
Propellers	Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm
Flight Controller	MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC	Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200
Onboard UART ExpressLRS 2.4GHz Receiver:	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator
DJI O3 Version	VTX & Camera: DJI O3 Air Unit Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
Walksnail Version	Camera: Avatar lite camera VTX: Avatar mini 1s module
HDZero Version	HDZero Nano Lite Camera & HDZero Whoop Lite VTX
Lite Version	NO VTX, NO Camera

Package includes:
Mobula8 Frame x1
CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4 x1
EX1103 KV11000 brushless motor x1
Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) x1
Option1: DJI O3 Air unit x1
Option2: Walksnail avatar HD Mini 1S lite kit x1
Option3: HDZERO Whoop Lite bundle x1
Option4: No VTX and camera version x1
Canopy x1
Screw driver x1
