Description
V2.0 update log:
1. Changed to GNB27 connector and V4 frame, no need 3d print battery tray anymore.
2. Changed the propeller to Gemfan 1635-3 propellers.
V3.0 Update log:
1. ELRS RX Version, Flight Controller AIO ESC board change into SuperX HD ELRS Flight Controller
2. Frsky Receiver Versions still v2 version.
3. Changed to A30 connector
Notes:
1. Recommend use the battery with lead wire, both A30 and BT2.0 plug battery are compatible.
2. NOT Included Lipo battery!
Specification:
Brand: Happymodel

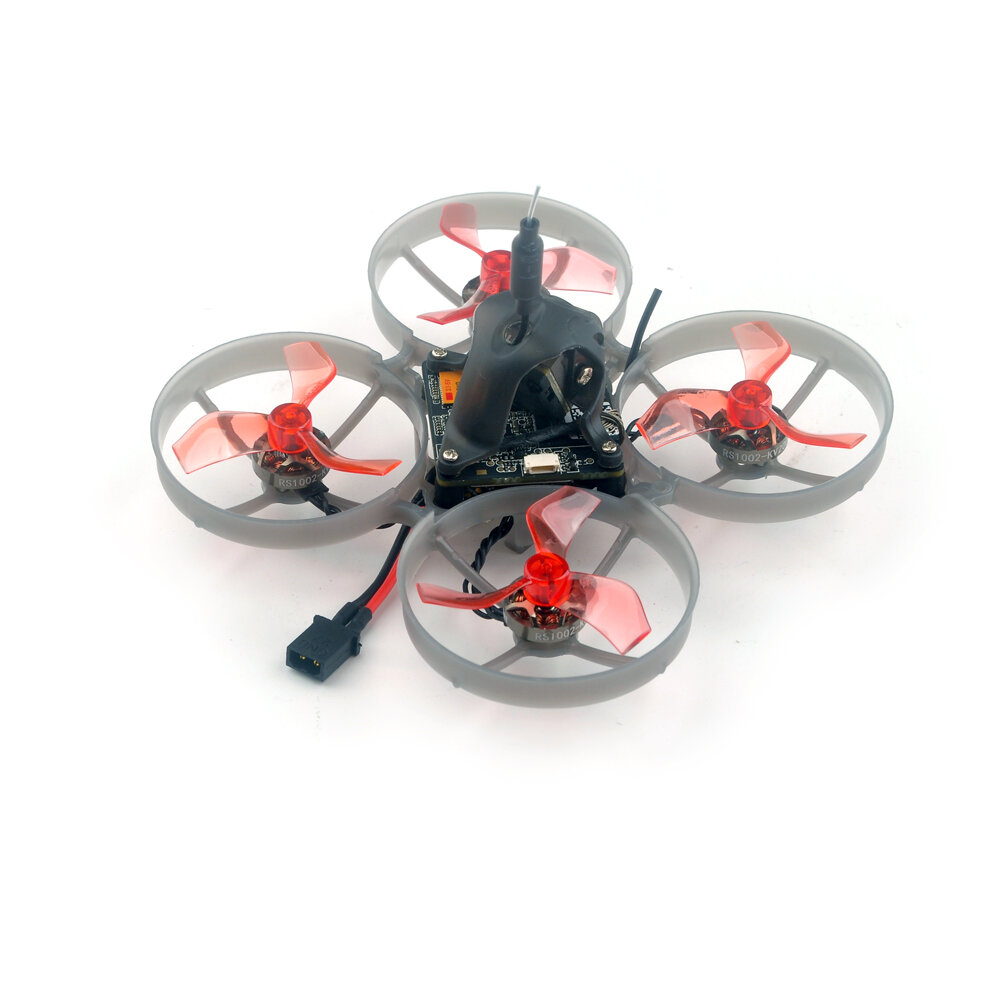

Model: Moblite7 Walksnail V3
Item Name: 1S 75mm HD Whoop FPV Racing Drone
Frame wheelbase: 75mm
Weight: 34.5 gram without battery
Size: 98mm*98mm*48mm
UART ELRS v3.0 ready
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: GNB A30
Onboard blackbox ready
| New V3.0 Version | Old Version | |
| Flight Controller |
SuperX HD ELRS Flight Controller Betaflight 4.4.2 firmware readyFirmware target: CRAZYBEEF4DXMCU:STM32F411CEU6 (100MHz, 512K FLASH)Sensor: BMI270 or ICM42688P (SPI connection)Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this droneBuilt-in 12A(each) Blheli_S 4in1 ESC Dshot300 readBuilt-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware updateBluejay ESC Firmware readyBuilt-in 5V 1A BECBuilt-in voltage detectionNo betaflight analog osd chip |
SuperbeeF4 Lite ELRS/FRSKY SPI ELRS version Firmware target: CrazybeeF4SX1280 |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HVCurrent: 12A continuous peak 15A (3 seconds)Support ESC-Configurator and BLHELI_S Suite configuratorFactory firmware: Z-H-30 – Bluejay, 0.19, 48kHzDefault protocol: DSHOT300 |
MCU upgraded to EFM8BB21 Currents: 5A continuous peak 6A (5 seconds) |
| Onboard Receiver |
ELRS Receiver Version: Onboard UART ExpressLRS 2.4GHz Receiver RF Frequency: 2.4GHzAntenna: enameled copper wire 31mm lengthTelemetry output Power: <12dBmReceiver protocol: CRSFDefault firmware version: ExpressLRS V3.0.1The same hardware with Happymodel EP1 receiverCould update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through Frsky Receiver: Doesn’t have V3 Version. |
ELRS Receiver Version: Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz Frsky Receiver Version: SPI BUS receiver Frsky D8/D16 compatible ( Transmitter and receiver 1 m from the ground): 100m~200m |
| Motor | Model: 1002 20000KVConfigu-ration:9N12PStator Diameter:10mmStator Length:2mmShaft Diameter:Φ1.5mmMotor Dimension(Dia.*Len):Φ13.5mm*12.5mmWeight(g):2.5gNo.of Cells(Lipo):1S only |
| Propeller Gemfan 1610-2 Bi-blades ( V1 ) | Weight:0.24gMaterial: PCPitch:1 inchProps Dia:40mmCenter Hole Dia:1.5mm |
| VTX |
Model: Avatar mini 1s moduleCommunication Frequency: 5.725-5.850 GHzTransmitter Power(EIRP): FCC:<25.5dBm; CE:<14dBm; SRRC: <20dBm;MIC:<25dBml/o Interface: JST1.O*6(Power in)JST1.O*4(USB)Mounting Holes: 25.5*25.5 mmDimensions: 33*33*6.5 mmStorage: 8GRecording: 1080p/720pWeight: 6.8 gOperating Temperature: -20-40℃Channels: 8Wide Power lnput: 3.1V-5VSupported FC System: BetaflightOSD: Canvas modeBitrate: 25mbps / 50mbpsLatency: Average delay 22msAntenna connector: IPEX |
| FPV Camera | Model: Avatar nanolmage Sensor: 1/2.7”InchResolution: 1080P/6Ofps,720P/120fps,72OP/6OfpsRatio: 16/9 4/3Lens: 2.1mmFOV 170°Aperture: F2.0Shutter: Rolling shutterMin.Illumination: 0.001LuxWeight: 3.5gDimensions: 14*14*17mmCoaxial Cable: 45mm |
Package Included:
1x Moblite7 V3 Walksnail FPV Drone
1x Spare Canopy
1x Propeller disassemble tool
1x Screw driver
