Description
Dilvery Tine: Oct. 7th.
Specification:
Brand Name: Happymodel

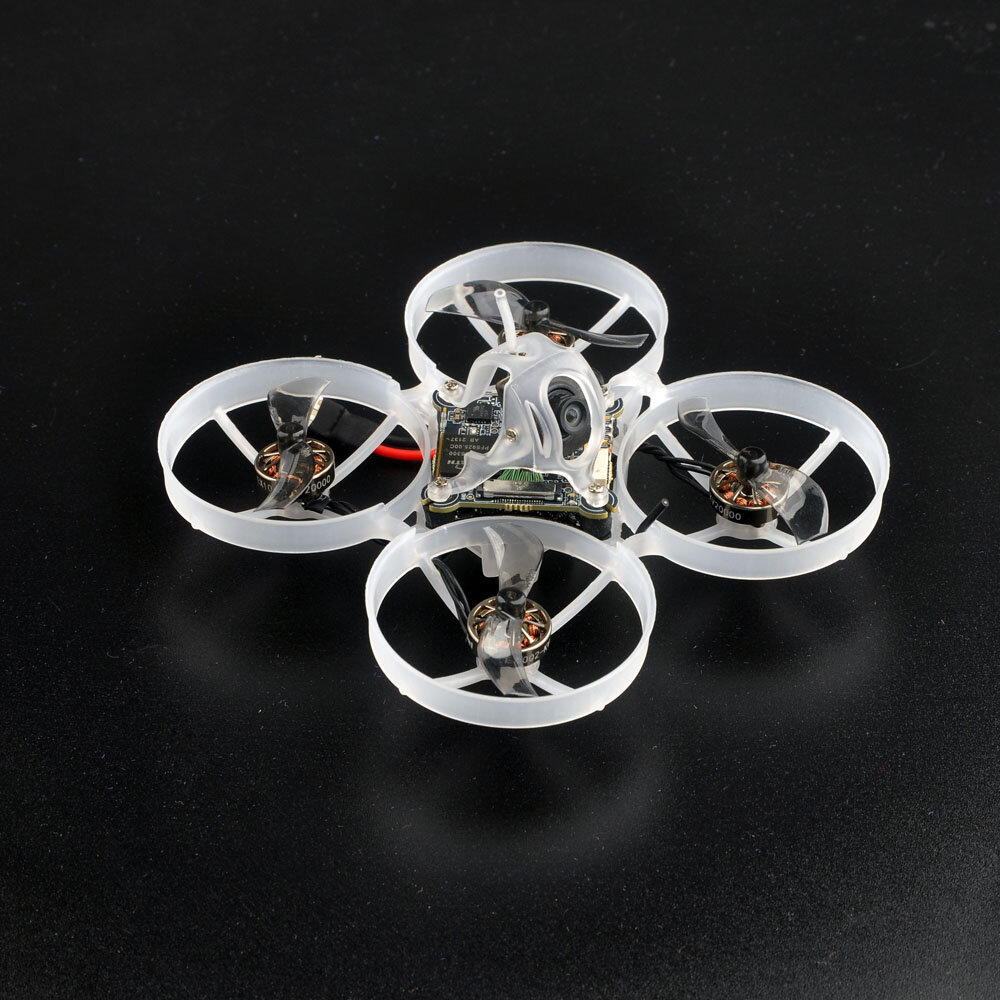

Model: Moblite7 HDZERO
Frame wheelbase: 75mm
Weight: 29.5 gram without battery
Size: 98mm*98mm*50mm
Receiver optional: SPI ELRS 2.4GHz / SPI Frsky Receiver
Compatible with 1S Lipo battery or Lihv battery PH2.0 Plug ( Not Included)
| SuperbeeF4 Lite Flight Controller | SPI ELRS version Firmware target: CrazybeeF4SX1280 SPI FRSKY version Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection) Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in SPI Frsky/ExpressLRS receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4IN1 ESC |
MCU upgraded to EFM8BB21 Currents: 5A continuous peak 6A (5 seconds) |
|
Onboard SPI ExpressLRS 2.4GHz Receiver ( SPI ELRS Version) |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Could bind with ELRS V2.0 firmware TX module |
|
Onboard Frsky SPI D8 /D16 2.4GHz Receiver ( Compatible Frsky Receiver Version) |
SPI BUS receiver Frsky D8/D16 compatible Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt) Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m Based on CC2500 RF module Compatible with Futaba S-FHSS, Redpine protocol |
| EX1002 20000KV Motor | Configu-ration:9N12P Stator Diameter:10mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm Weight(g): 2.5g No.of Cells(Lipo):1S only |
| Gemfan 1610-2 Blades Propeller | Weight:0.24g Material: PC Pitch:1 inch Props Dia:40mm Center Hole Dia:1.5mm |
| HDZero Whoop Lite VTX | 1S Input 25mW/200mW RF Output-SmartAudio Support 25.5×25.5 M2 Soft Mounting- Antenna Retention Removable Shielding Box- 32.5×32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding) |
| HDZero Nano Lite Camera | 14x16x11 mm 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance Fov: 4:3: D:130° H:108° v:84° 16:9:D:122° H:108° V:65° |
Package Included:
1x Mobula7 v4 75mm frame +Canopy
1x Optional Receiver
4x EX1002 KV20000 Unibell brushless motor
4x Gemfan 1610-2 Blades Propeller CW
4x Gemfan 1610-2 Blades Propeller CCW
1x HDZero Whoop Lite VTX
1x HDZero Nano Lite Camera
1x Spare Canopy
1x Propeller disassemble tool
1x Screw driver
